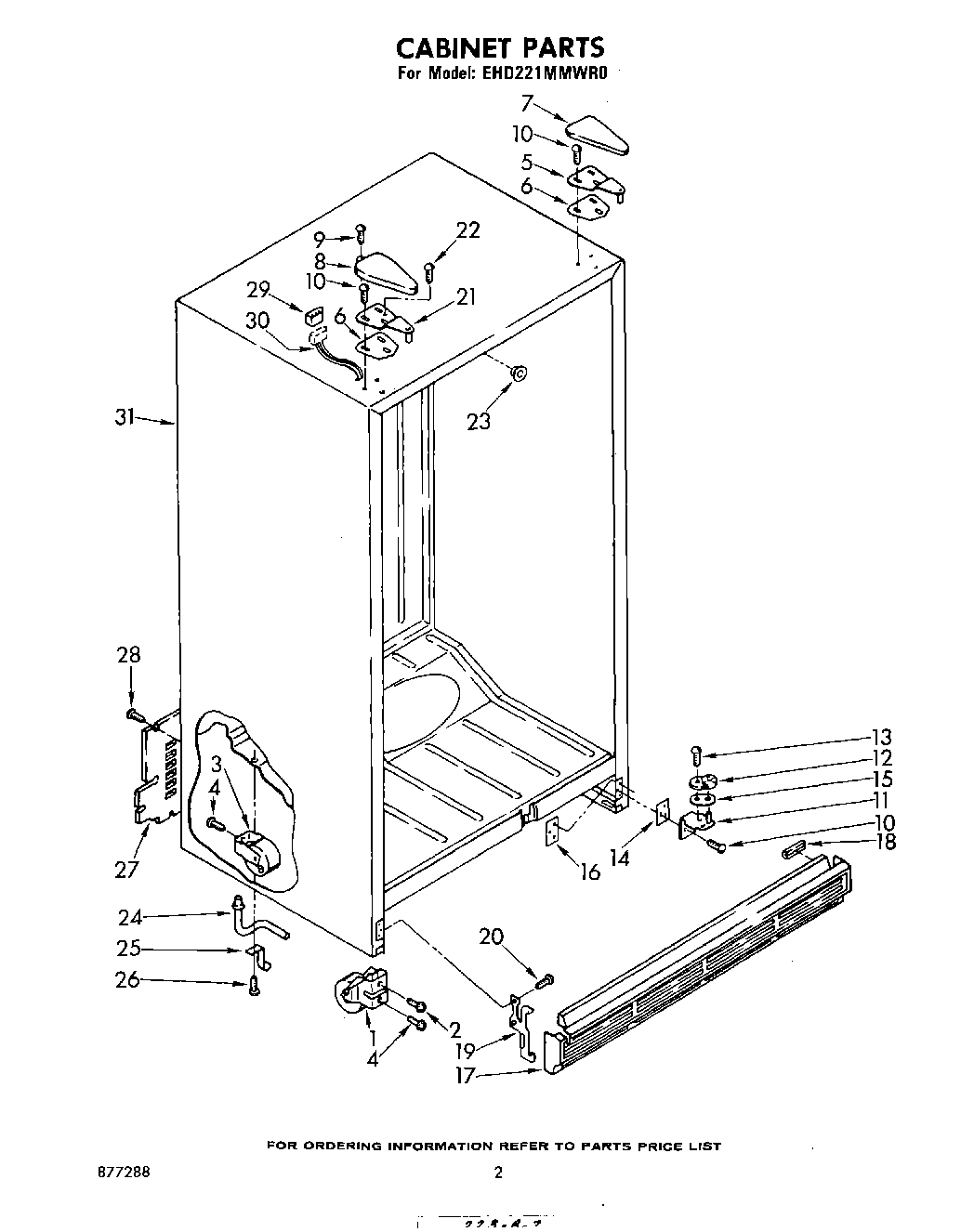

EHD221MMWR0 02 – CABINET

Products

Position	Product
1	Roller, Front
2	Screw, 5/16-24 x 1
3	WPW10250570 Whirlpool Refrigerator Cabinet Roller
4	Screw, 1/4-28 x 1/2 (2)
5	Hinge, Top
6	Shim, Hinge
7	Hinge Cover (New Avocado)
7	1119787 Whirlpool Refrigerator Hinge Cover
7	Hinge Cover (Golden Harvest)
7	Hinge, Cover (Coffee)
8	Hinge Cover (New Avocado)
8	WP1129262 Whirlpool Refrigerator Cover
8	Hinge Cover (Golden Harvest)
8	Hinge Cover (Coffee)
9	Screw, 6-32 x 1/2
10	WP999367 Whirlpool Refrigerator Screw
10	Screw (Repair)
11	Hinge Bottom (L.H)
11	Hinge Bottom (R.H)
12	WPW10329686 Whirlpool Door Cam Black
13	WP486579 Whirlpool Air Conditioner Screw
13	Screw (Repair)
14	Shim, Bottom Hinge
15	Shim, Door Closer
16	Tap Plate
17	Exterior Grille (White)
17	Exterior Grille (Coffee)
17	Exterior Grille (Golden Harvest)
17	Exterior Grille (New Avocado)
17	Exterior Grille (Almond)
18	Bumper, Grille
19	WPL 844614
20	W11624204 Whirlpool Screw
21	Hinge, Top Freezer
22	WP488234 Whirlpool Air Conditioner Screw
23	Grommet
24	Extension, Drain Fitting
25	Cup, Drain Extension
26	Screw, 8-15 x 3/8
27	WPL 850457
28	WP488729 Whirlpool Refrigerator Door Screw
29	WPL 851648
30	WPL 482553
