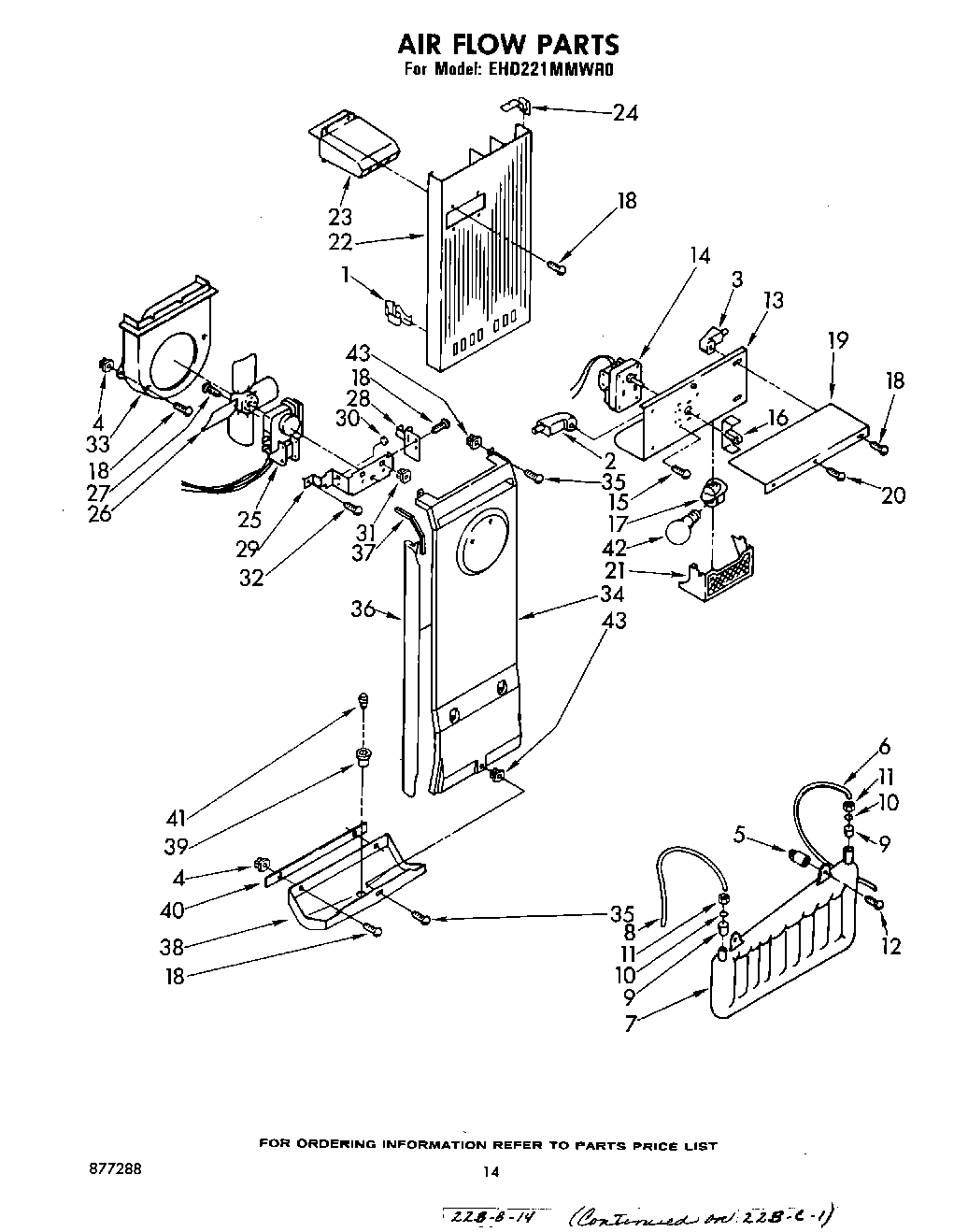

| 1 | 2215823 Whirlpool Refrigerator Clip |
| 2 | Support, Stud |
| 3 | Support, Stud |
| 4 | Grommet |
| 5 | Grommet |
| 6 | W10823511 Whirlpool Refrigerator Water Tube |
| 7 | WP2256126 Whirlpool Refrigerator Reservoir |
| 9 | 4387491 Whirlpool Refrigerator Insert |
| 10 | ``O`` Ring Seal |
| 11 | Nut, Compression |
| 12 | Screw, 8 x 1-1/2 |
| 13 | Bracket, Dispenser Motor |
| 14 | Motor |
| 14 | Motor, Dispenser (Alternate) |
| 15 | 303776 Whirlpool Dishwasher Screw |
| 16 | COUPLING AUGER MOTOR |
| 17 | 4387478 Whirlpool Refrigerator Light Socket |
| 18 | W11624204 Whirlpool Screw |
| 19 | Cover, Ice Dispenser |
| 20 | WP489128 Whirlpool Refrigerator Screw |
| 21 | Lens, Dispenser Light |
| 22 | Duct, Air |
| 23 | Air Deflector |
| 24 | Baffle, Air |
| 25 | 482469 Whirlpool Refrigerator Evaporator Fan Motor Kit |
| 26 | Blade, Fan |
| 27 | WP487887 Whirlpool Refrigerator Screw |
| 28 | Fan, Bracket Double |
| 29 | Fan Bracket, Single |
| 30 | Grommet (3) |
| 31 | Screw Grommet |
| 32 | WP489069 Whirlpool Compactor Screw |
| 33 | Scroll Fan |
| 34 | Cover, Evaporator |
| 35 | WP488729 Whirlpool Refrigerator Door Screw |
| 36 | Gasket, Evaporator |
| 37 | Gasket, Cover Top |
| 38 | Drain Pan |
| 39 | Fitting, Drain Pan |
| 40 | Gasket, Drain Pan |
| 41 | Cap, Drain |
| 42 | RANGE ONLY 40W 120V APPL BULB |
| 43 | Screw, Grommet |
