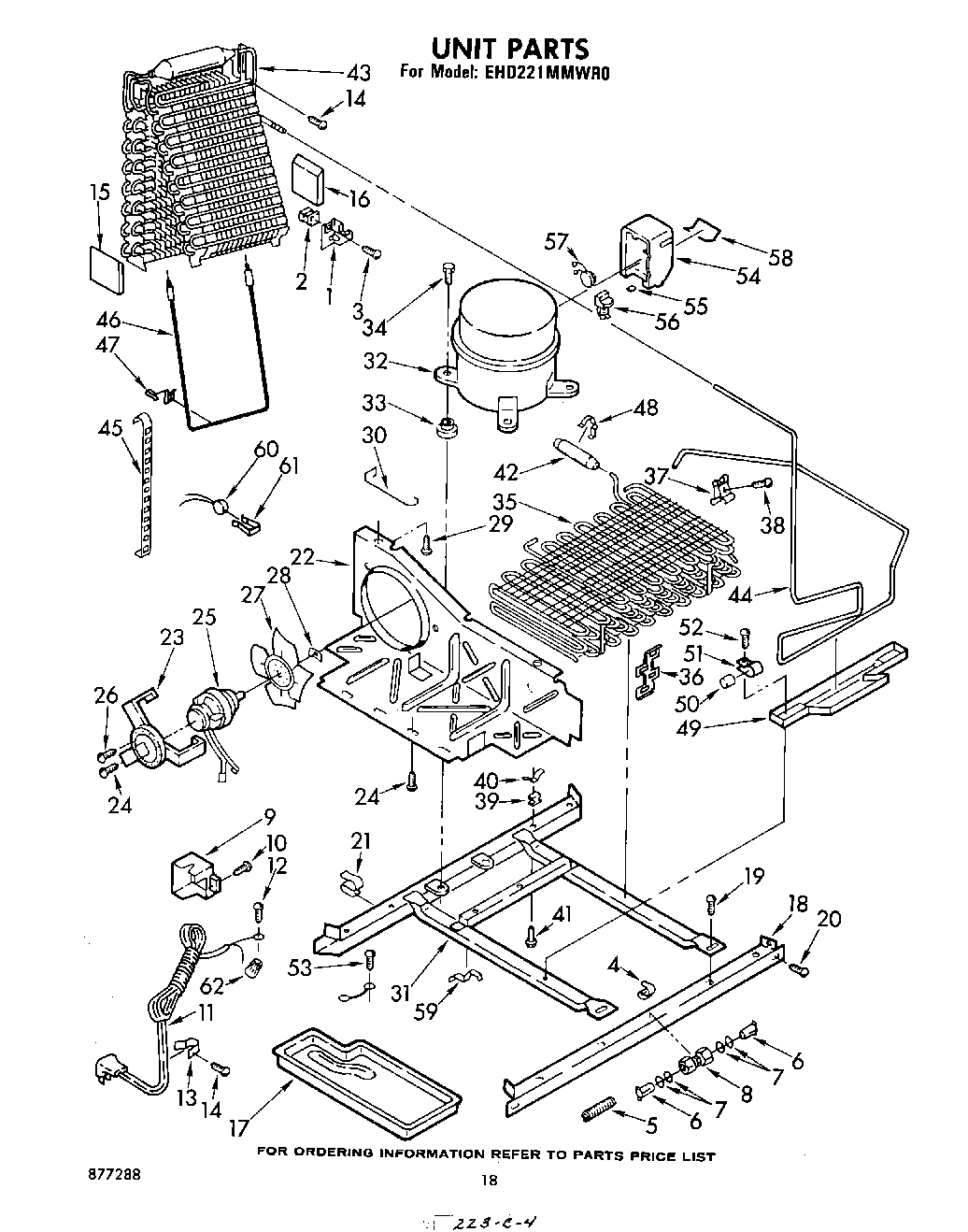

EHD221MMWR0 11 – UNIT

Products

Position	Product
1	Support, Evaporator
2	Screw, Grommet
3	SCREW
4	Clip, Tube (3)
5	Spring-Tube
6	4387491 Whirlpool Refrigerator Insert
7	“O“ Ring Seal (4)
8	WP2198677 Whirlpool Refrigerator Connector
9	WPL 549947
10	WP488729 Whirlpool Refrigerator Door Screw
11	Cord, Service
12	Screw, 8-32 x 3/8
13	549193 Whirlpool Refrigerator Power Clamp
14	W11624204 Whirlpool Screw
15	Air Baffle, Evaporator
16	Baffle, Air
17	Tray, Evaporator
18	Rail, Front
19	Screw, 1/4-28 x 1/2 (2)
20	Screw (Repair)
20	489340 Whirlpool Refrigerator Screw
21	Clip, Wire (2)
22	Baffle, Air
23	Bracket, Motor
24	Screw, 8 x 3/8
25	833697 Whirlpool Condenser Fan Motor
26	Screw, 8-36 x 3/8 (3)
27	Fan, Blade
28	WP486692 Whirlpool Refrigerator Nut
29	Screw, 8-15 x 3/8
30	Guard, Fan
31	Frame
32	Compressor
33	Grommet (4)
34	Screw, 1/4-28 x 1“ (4)
35	Condenser & Precooler Assembly
36	Spacer Condenser (4)
37	Clip, Tube (4)
38	WP488787 Whirlpool Refrigerator Screw
39	Grommet (4)
40	Clamp (4)
41	W11693756 Whirlpool Screw Assembly
42	W10843121 Whirlpool Refrigerator Tube
43	Evaporator
44	Exchanger, Heat
45	Heat Shield
46	WP549433 Whirlpool Refrigerator Heater
47	Heater, Clamp (4)
48	Clamp
49	Pan, Drip
50	Dampener (2)
51	Clamp Tube
52	WPW10141625 Whirlpool Refrigerator Screw Assembly
53	303776 Whirlpool Dishwasher Screw
54	Case, Relay
55	Bumper
56	Relay
57	Overload
58	Spring
59	Clip (2)
60	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
61	Clamp
62	978030 Whirlpool Refrigerator Valve
62	978027 Whirlpool Refrigerator Primary Valve
62	978026 Whirlpool Refrigerator Primary Valve
62	WP978025 Whirlpool Refrigerator Valve
62	Wire Connector
62	VALVE, ACCESS (1/2“)
62	VALVE, ACCESS (5/8“)
