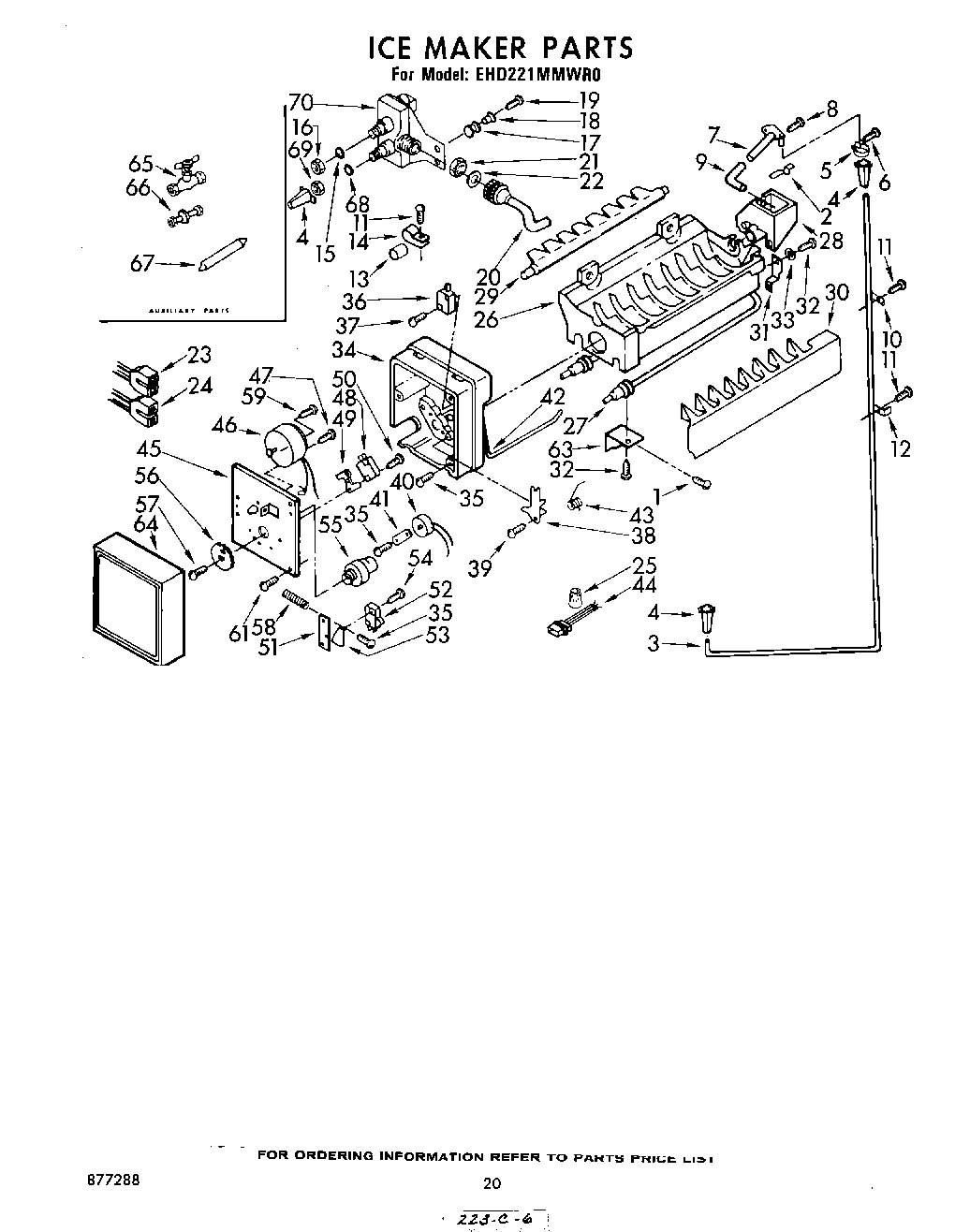

EHD221MMWR0 12 – ICE MAKER

Products

Position	Product
1	SCREW
2	Clip
3	W10823511 Whirlpool Refrigerator Water Tube
4	4387491 Whirlpool Refrigerator Insert
5	WP488878 Whirlpool Refrigerator Tube Clamp
6	WP965173 Whirlpool Dishwasher Screw
7	WP2196157 Whirlpool Fill Tube
8	WP98165 Whirlpool Screw
9	Tube, Water Inlet
10	WP488366 Whirlpool Refrigerator Clamp
11	W11624204 Whirlpool Screw
12	Clamp, Water Line (2)
13	WP2158826 Whirlpool Refrigerator Dampener
14	Clamp Tube
15	“O“ Ring Seal (4)
16	WP627018 Whirlpool Refrigerator Nut
17	Grommet (2)
18	Spacer (2)
19	W11693756 Whirlpool Screw Assembly
20	Tube, Inlet
21	Nut, Valve
22	WP16123 Whirlpool Washer
23	WPL 548734
24	Wiring, Dispensing Valve
25	Wire Connector
26	Mold & Heater Assembly (Includes Illus. 43)
27	Heater, Mold
28	Bearing & Inlet
29	WP627843 Whirlpool Refrigerator Ejector Arm
30	Stripper, Ice
31	Bracket, Shut-Off Arm
32	Screw, 8-16 x 3/8
33	F
34	Support
35	Screw, 8-32 x 1
36	Switch, S.P.D.T. (2)
37	Screw, 4-24 x 3/4
38	Lever, Arm
39	Screw, Shoulder
40	Thermostat (Alternate)
40	Thermostat
41	Clamp, Thermostat
42	Arm, Shut-Off
43	Spring, Shut-Off Arm
44	Wire Harness
45	Plate, Mounting
46	Motor (Alternate)
46	Motor
47	Screw (Use W/Motor 627106)
48	Switch, S.P.D.T.
49	Spacer, Switch (2)
50	Screw, 4-40 x 1
51	Plate, Valve
52	Switch, S.P.S.T.
53	Insulator
54	Screw
55	Cam
56	Gear
57	Screw
58	Spring
59	Screw, Ground
61	WP488787 Whirlpool Refrigerator Screw
63	WP2256087 Whirlpool Refrigerator Bracket
64	Cover
65	Valve, Shut-Off
66	Union, 1/4“ x 3/16“
67	Filter Kit
68	“O“ Ring Seal
69	Nut, Compression
70	4318046 Whirlpool Dual Water Inlet Valve
