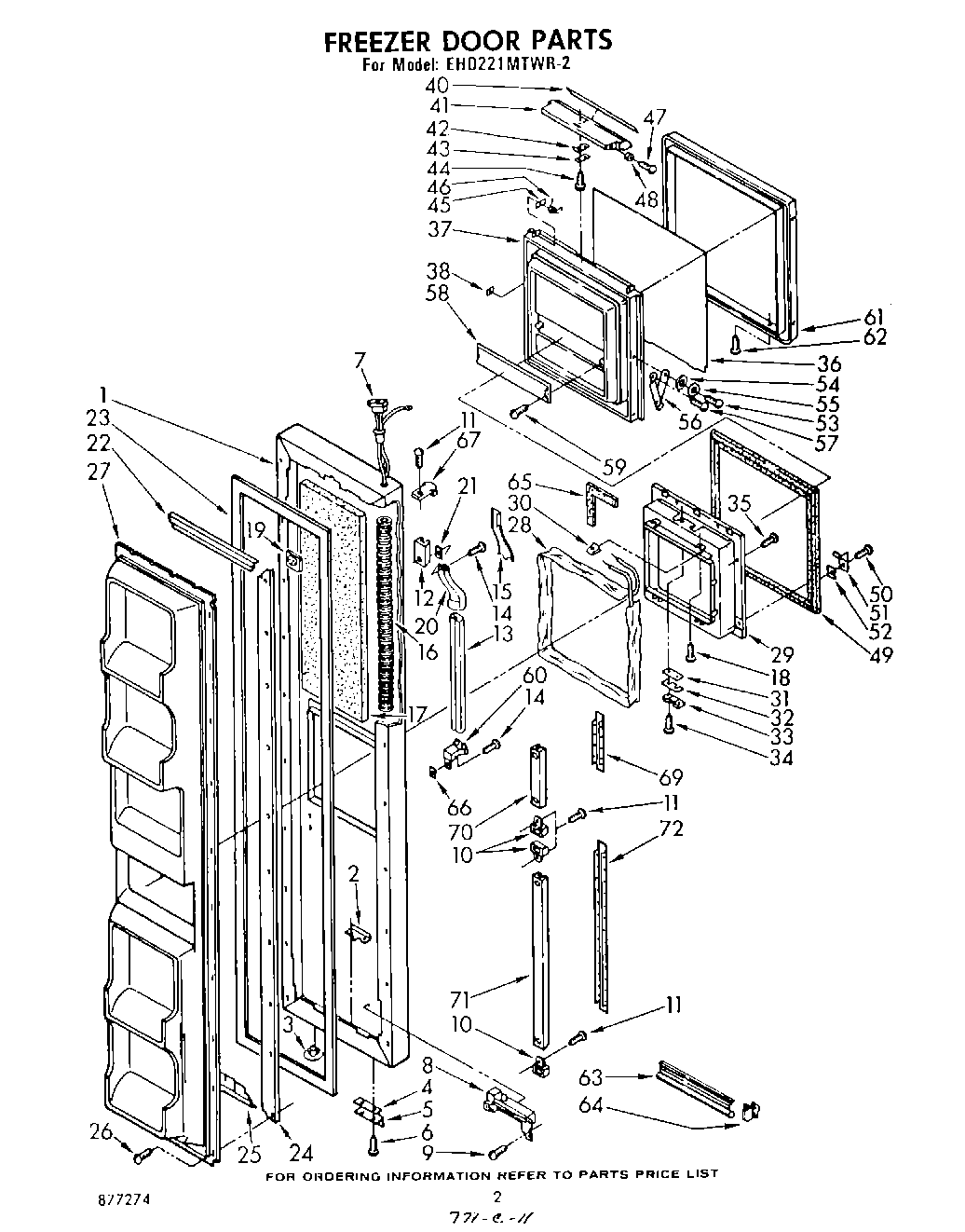

EHD221MTWR2 02 – FREEZER DOOR

EHD221MTWR2 02 – FREEZER DOOR

Written by

in

EHD221MTWR2 02 – FREEZER DOOR

Products

Position	Product
1	Door, Panel (Also Order Item 17) (Almond)
1	Door, Panel (Also Order Item 17) (Coffee)
1	Door, Panel (Also Order Item 17) (Golden Harvest)
1	Door, Panel (Also Order Item 17) (New Avocado)
1	Door, Panel (Also Order Item 17) (White)
2	Tap Plate
3	Hole Plug (2) (Golden Harvest)
3	Hole Plug (2) (Coffee)
3	Hole Plug (2) (Almond)
3	Hole Plug (2)
3	Hole Plug (2) (New Avocado)
4	Shim, Bracket
5	Bracket, Door Stop
6	Screw (Repair)
6	Screw, 89 x 5/8
7	Crossover, Wiring Assembly
8	WPL 840847
10	End Cap, Retainer
11	Screw
12	Retainer, Insert
13	Handle, Center (New Avocado)
13	Handle, Center (Golden Harvest)
13	Handle, Center (White, Coffee & Almond)
15	Insert, Handle
16	Tube, Door Wiring
17	WPL 876029
19	Screw Anchor (2)
20	Center End Cap, Handle
21	Shim
22	Retainer, Top & Bottom Gasket
23	2188405A Whirlpool Refrigerator Door Gasket
24	Retainer Side, Gasket
25	Retainer, Gasket (Bottom)
26	SCREW
26	W11624204 Whirlpool Screw
27	Panel, Interior
28	Heater, Housing
29	Housing, Tilt Ice
30	Nut, Speed (2)
31	Retainer, Strike
32	Shim (
32	Shim, Latch Strike
33	WPL 988649
34	WP488787 Whirlpool Refrigerator Screw
36	WPL 936739
37	WPL 935278
40	WPL 988663
41	WPL 988629
42	WPL 988647
43	WPL 988725
44	WP488627 Whirlpool Refrigerator Screw
45	WPL 988650
46	WPL 988727
46	WPL 988726
48	WPL 988730
49	WPL 988654
50	WP488163 Whirlpool Refrigerator Screw
51	WPL 936910
52	WPL 991321
52	WPL 988728
53	WP488729 Whirlpool Refrigerator Door Screw
54	WPL 488944
55	WPL 488945
56	WPL 988658
57	WPL 488953
58	WPL 938867
59	Screw
59	W11693756 Whirlpool Screw Assembly
60	End Cap
61	WPL 935054
61	WPL 935055
61	WPL 935056
62	WPL 487820
63	WPL 988669
63	WPL 988668
64	WP839904 Whirlpool Refrigerator Endcap Trim
65	Seal
66	Shim, Handle
67	End Cap
69	WPL 936939
70	WPL 935879
71	WPL 935880
72	WPL 935890
