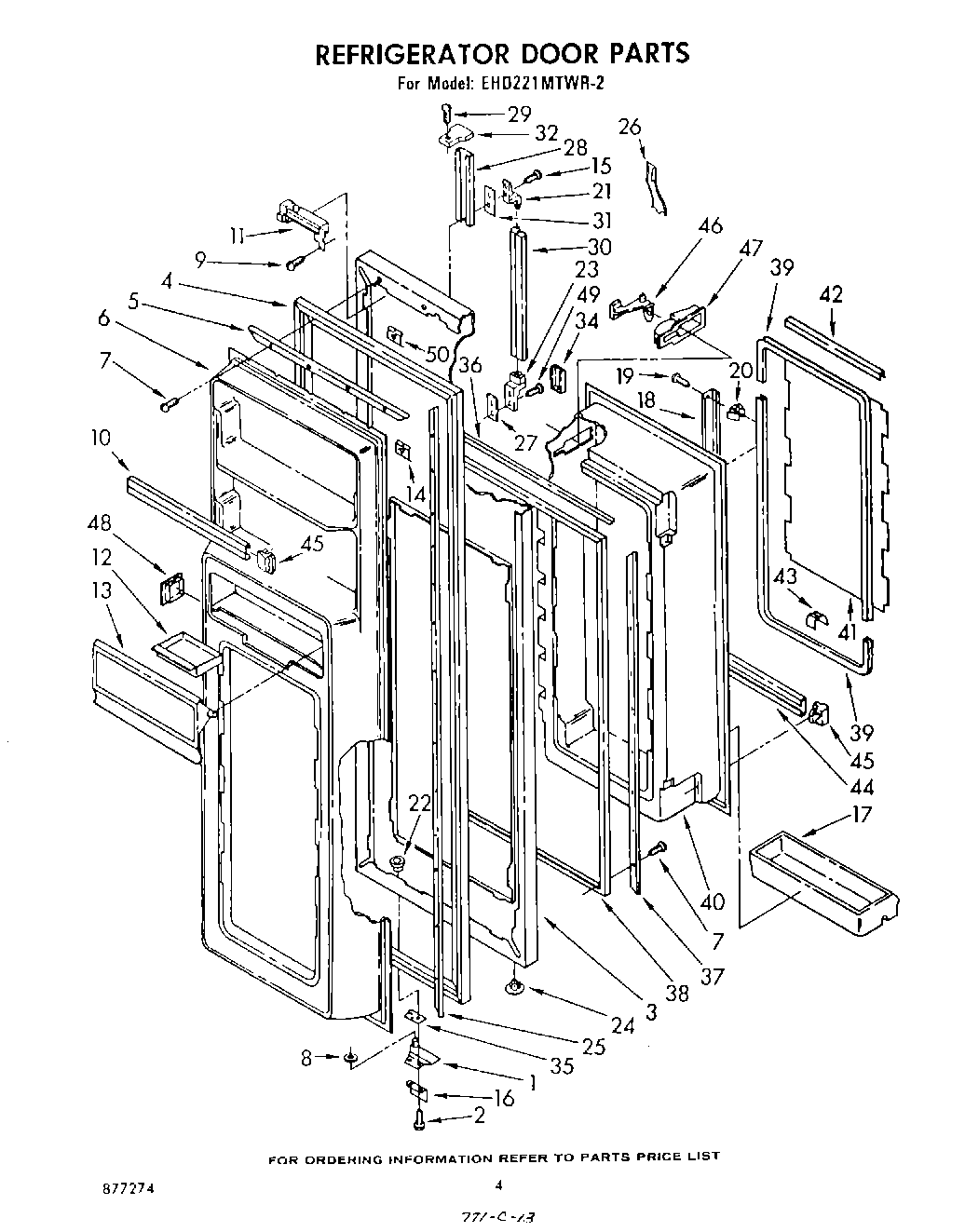

EHD221MTWR2 03 – REFRIGERATOR DOOR , LIT/OPTIONALadmin2025-04-26T09:50:00+00:00EHD221MTWR2 03 – REFRIGERATOR DOOR , LIT/OPTIONAL
Products
| Position | Product |
|---|
| 1 | Hinge, Bottom |
| 2 | WP250830 Whirlpool Refrigerator Screw |
| 3 | Door, Refrigerator (Almond) |
| 3 | Door, Refrigerator (New Avocado) |
| 3 | Door, Refrigerator (Golden Harvest) |
| 3 | Door, Refrigerator (Coffee) |
| 3 | Door, Refrigerator (White) |
| 4 | 2188404A Whirlpool Refrigerator Door Gasket |
| 5 | Retainer, Top & Bottom |
| 6 | Panel, Interior |
| 7 | SCREW |
| 7 | W11624204 Whirlpool Screw |
| 8 | Washer |
| 10 | WPL 988746 |
| 11 | WPL 840847 |
| 13 | WPL 935352 |
| 14 | WP939101 Whirlpool Refrigerator Plate |
| 16 | Bracket, Door Stop |
| 17 | Shelf, Cantilever (3) |
| 18 | Shelf Ladder |
| 20 | Expansion Clip |
| 21 | Center End Cap, Handle |
| 22 | Cap, Hinge Sleeve (2) |
| 23 | Handle End, |
| 24 | Hole Plug (2) |
| 25 | Retainer Side, Gasket |
| 26 | Insert, Handle |
| 27 | Shim, Handle |
| 28 | Retainer, Insert |
| 29 | Screw |
| 30 | Handle, Center (White, Coffee & Almond) |
| 30 | Handle, Center (Golden Harvest) |
| 30 | Handle, Center (New Avocado) |
| 31 | Shim |
| 32 | End Cap |
| 34 | Cover, End Cap |
| 35 | Shim, Bottom Hinge |
| 36 | Reinforcement Strip, Top & Bottom (2) |
| 37 | Reinforcement Strip, Side |
| 38 | Gasket, Seal |
| 39 | WPL 986453 |
| 40 | Panel, Interior Storage |
| 41 | Panel, Decorative |
| 42 | Trim, Decorative |
| 43 | Cap Trim Joint |
| 44 | WPL 986448 |
| 45 | WP839904 Whirlpool Refrigerator Endcap Trim |
| 46 | WPL 935110 |
| 47 | WPL 935109 |
| 48 | WPL 935113 |
| 49 | WP488729 Whirlpool Refrigerator Door Screw |
| 50 | WPL 511881 |
| 50 | WPL 935477 |
| 50 | WPL 877274 |
| 50 | Golden Harvest (Uncut) |
| 50 | WPL 939426 |
| 50 | Paint, Spray 13 Oz. (Avocado) |
| 50 | 876370 Whirlpool Refrigerator Insulation |
| 50 | 833938 Whirlpool Refrigerator Terminal |
| 50 | 606755 Whirlpool Refrigerator Bag |
| 50 | 511873 Whirlpool Refrigerator Paint |
| 50 | 350942 Whirlpool Spray Paint |
| 50 | 212643 Whirlpool Refrigerator Permagum Sealer |
| 50 | Golden Harvest |
| 50 | 72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz |
| 50 | Almond (Uncut) |
| 50 | Leveler (Thinner) |
| 50 | WP72107 Whirlpool Touchup |
| 50 | 799344 Whirlpool Refrigerator Paint |
| 50 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 50 | 350956 Whirlpool Spray Assembly |
| 50 | WP505587 Whirlpool Refrigerator Sealer |
| 50 | WP542638 Whirlpool Refrigerator Grease |
| 50 | TAPE, VINYL (3/4 X 108``) |
| 50 | WPL 799351 |
| 50 | Screw Anchor (2) |
| 50 | Enamel, New Avocado (1 Qt. Uncut) |
| 50 | Enamel, Coffee (1 Qt. Uncut) |
| 50 | paint, spray 13 oz. (coffee) |
| 50 | Paint, Touch-Up 1/2 Oz. (Coffee) |
| 50 | 72109 Whirlpool Dacor Avocado Touch-Up Paint |
| 50 | 72032 Whirlpool Touch Up Paint Black |
| 50 | 285006 Whirlpool Spray |
| 50 | WPL 876029 |
| 50 | WPL 799833 |
| 50 | WPL 799832 |
| 50 | Enamel, Black (1 Qt. Uncut) |
| 50 | CEMENT, ALUMILASTIC (1 1/4 OZ.) |
| 50 | 350930 Whirlpool White Spray Paint |
