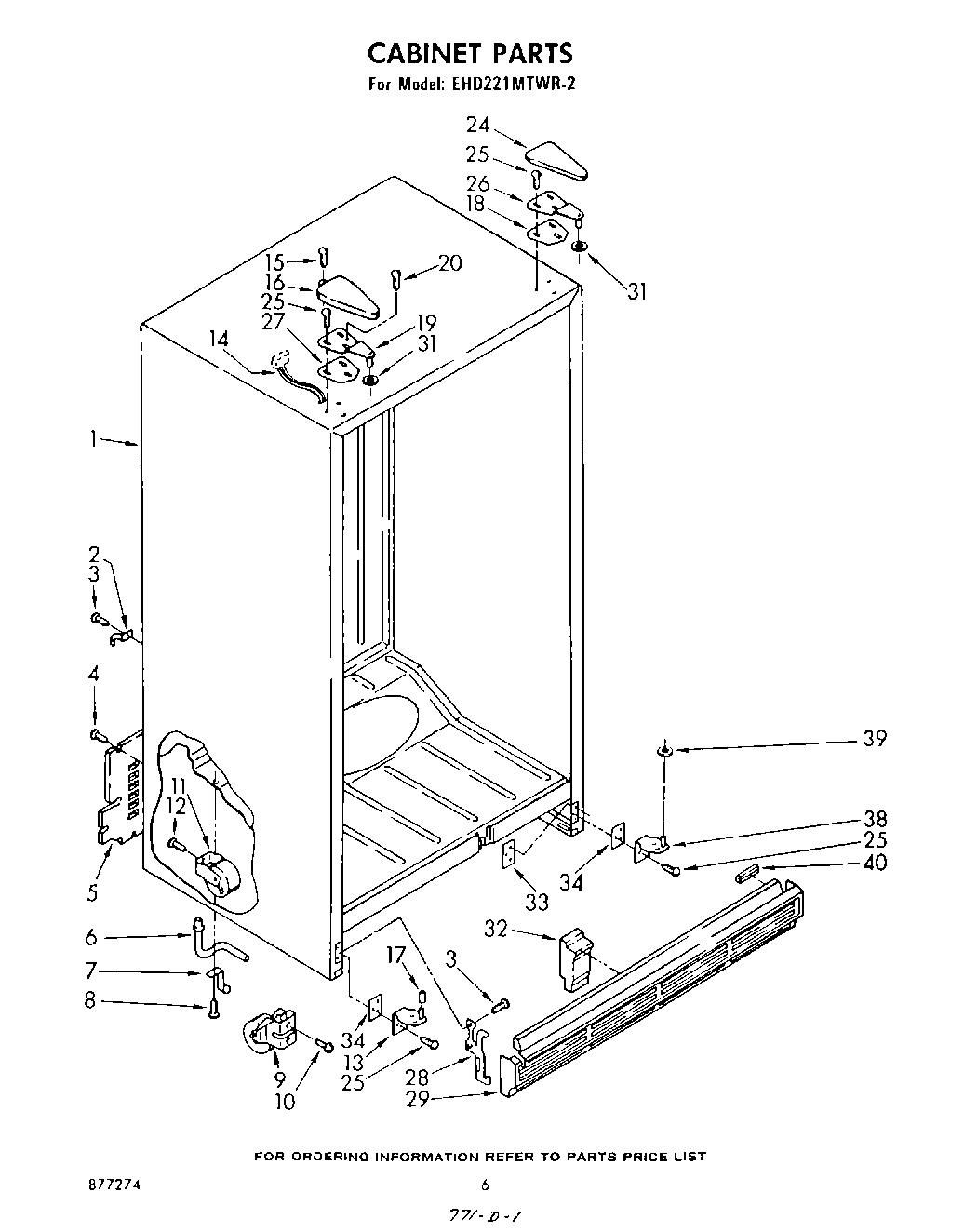

EHD221MTWR2 04 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Clamp, Water Line (2)
3	W11624204 Whirlpool Screw
4	WP488729 Whirlpool Refrigerator Door Screw
5	WPL 850457
6	Extension, Drain Fitting
7	Cup, Drain Extension
8	Screw, 8-15 x 3/8
9	Roller, Front
10	Screw, 5/16-24 x 1
11	WPW10250570 Whirlpool Refrigerator Cabinet Roller
12	Screw, 1/4-28 x 1/2 (2)
13	Hinge, Bottom L.H.
14	Wiring, Wrapper
15	Screw, 6-32 x 1/2
16	WP1129262 Whirlpool Refrigerator Cover
16	Hinge Cover (Golden Harvest)
16	Hinge Cover (Coffee)
16	Hinge Cover (New Avocado)
17	Bearing
18	Shim, Hinge Top
19	Hinge, Top Freezer
20	WP488234 Whirlpool Air Conditioner Screw
24	Hinge, Cover (Coffee)
24	Hinge Cover (New Avocado)
24	1119787 Whirlpool Refrigerator Hinge Cover
24	Hinge Cover (Golden Harvest)
25	Screw (Repair)
25	WP999367 Whirlpool Refrigerator Screw
26	Hinge (Top)
27	Shim, Hinge
28	WPL 844614
29	Exterior Grille (Almond)
29	Exterior Grille (White)
29	Exterior Grille (Coffee)
29	Exterior Grille (New Avocado)
29	Exterior Grille (Golden Harvest)
31	WP487576 Whirlpool Washer
32	WPL 836372
33	Tap Plate
34	Shim, Bottom Hinge
38	Hinge, Bottom (R.H.)
39	WP487802 Whirlpool Refrigerator Washer
40	Bumper, Grille
