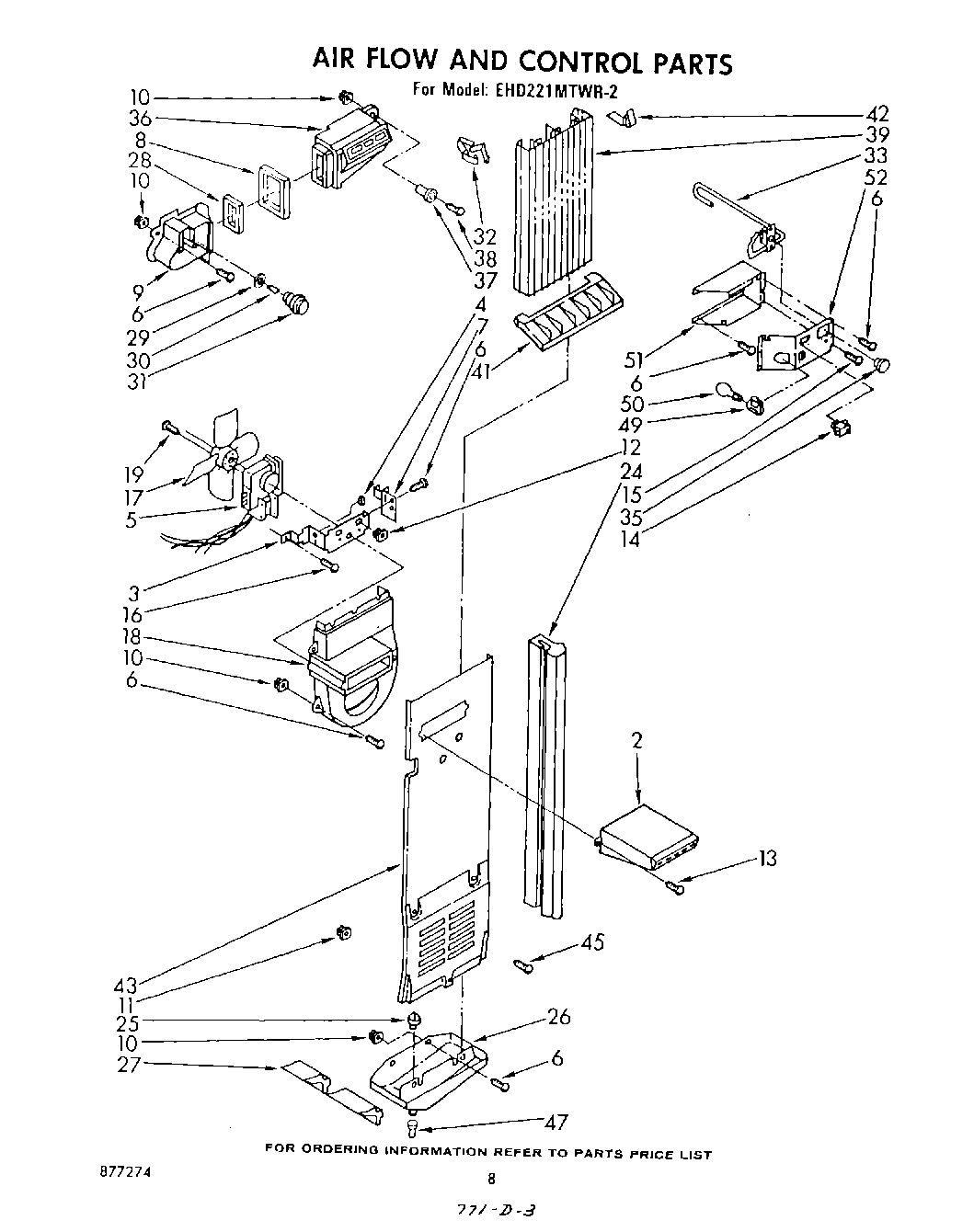

EHD221MTWR2 05 – AIRFLOW AND CONTROL

Products

Position	Product
2	Extension, Air Duct
3	Bracket, Fan Mounting (Single)
4	Grommet (3)
5	482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
6	W11624204 Whirlpool Screw
7	Fan, Bracket Double
8	Gasket, Air Diffuser
9	Air Scoop Assembly
10	Grommet
11	Screw, Grommet
12	Screw Grommet
13	WP488729 Whirlpool Refrigerator Door Screw
14	WPL 984640
15	WP489128 Whirlpool Refrigerator Screw
16	WP489069 Whirlpool Compactor Screw
17	Blade, Fan
18	Scroll, Fan
19	WP487887 Whirlpool Refrigerator Screw
24	Gasket (2)
25	Cap, Drain
26	Drain Pan
27	Gasket, Drain Pan
28	Gasket, Air Scoop
29	Retainer, Damper
30	Knob, Retainer
31	Control Knob
32	2215823 Whirlpool Refrigerator Clip
33	WP819470 Whirlpool Refrigerator Thermostat
35	Knob, Temperature Control
36	Air Diffuser
37	836667 Whirlpool Refrigerator Spacer
38	Screw, 8 x 1-1/4 (3)
39	Duct, Air
41	End Cap, Evaporator
42	Baffle, Air
43	Cover, Evaporator
47	Fitting, Drain Pan
49	4387478 Whirlpool Refrigerator Light Socket
50	RANGE ONLY 40W 120V APPL BULB
51	Box, Control
52	Cover, Box
