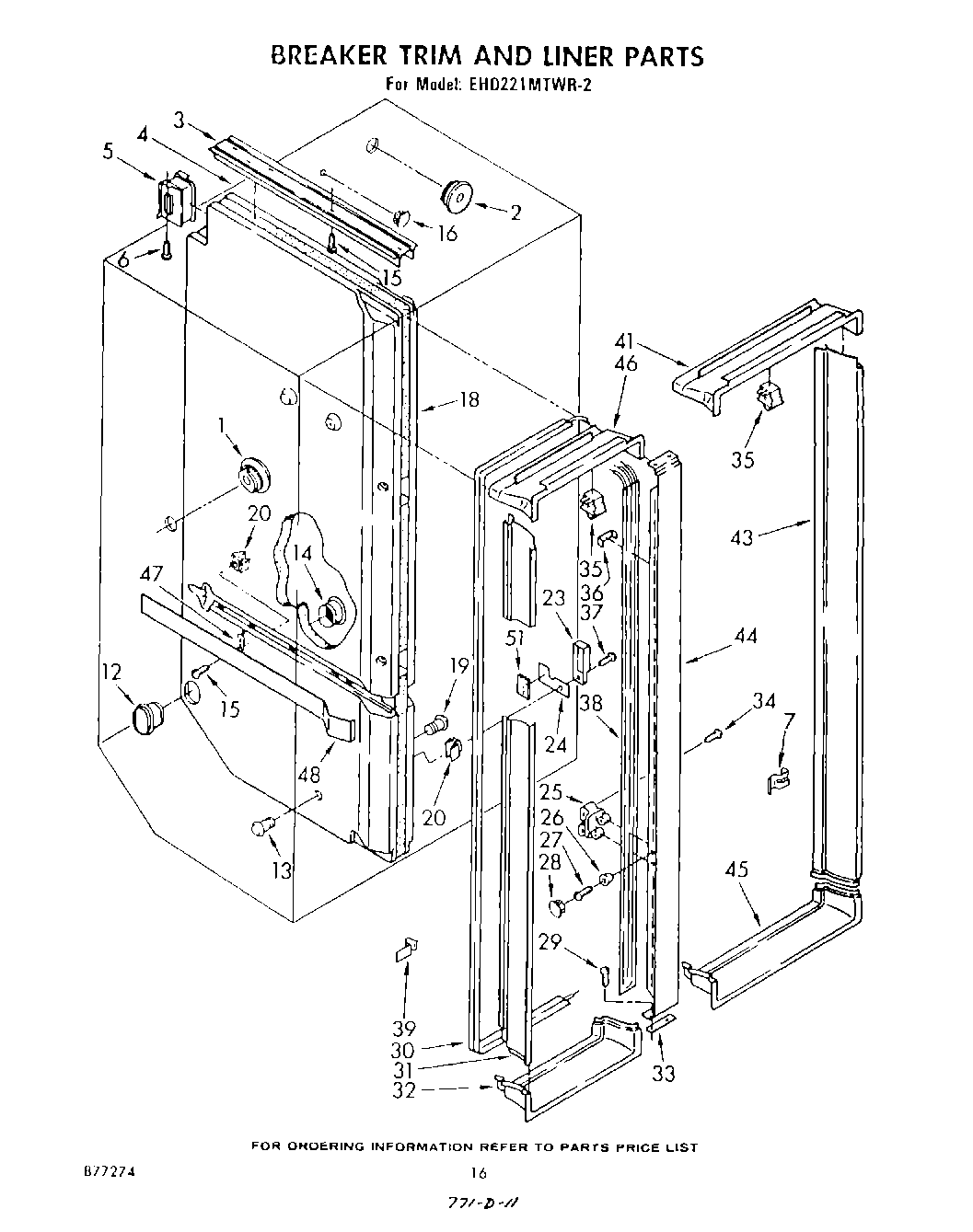

EHD221MTWR2 09 – BREAKER TRIM AND LINER

Products

Position	Product
1	Grommet, Wiring
2	Grommet, Wiring
3	Track, Divider (Back)
3	Track, Divider (Bottom)
3	Track, Divider (Top)
4	Liner (Not A Serviceable Part)
5	Control Connector & Gasket Assembly
6	WP488163 Whirlpool Refrigerator Screw
7	Breaker, Clip
12	Retainer, Insert
13	Retainer, Hole Insert
14	Insert, Air Return
15	W11624204 Whirlpool Screw
16	Hole, Plug
18	Divider Mullion Assembly
19	Insert, Hole
20	Expansion Clip
23	Escutcheon, Meat Pan Control
24	Slide, Meat Pan Control
25	Stabilizer, Mullion
26	Spacer Screw, Stabilizer
27	Screw, 8 x 7/8
28	Hole Cover
29	WP308685 Whirlpool Microwave Screw
29	WP489069 Whirlpool Compactor Screw
30	WPL 989660
31	WPL 848480
32	WPL 848481
33	Spacer
34	WP488787 Whirlpool Refrigerator Screw
35	W11384469 Whirlpool Door Switch
36	Clip, Heater (2)
37	Screw, 8-15 x 1/2 (4)
38	Heater, Mullion
39	WPL 935663
41	Breaker Trim, Top
43	Breaker, Trim R.S.
44	Center Rail Mullion (White)
44	Center Rail Mullion (Almond)
44	Center Rail Mullion (Golden Harvest)
44	Center Rail Mullion (Coffee)
44	Center Rail Mullion (New Avocado)
45	WPL 848477
46	WPL 848479
47	Heat Exchanger, Clip
48	Cover, Heat Exchanger
51	Pad, Foam
