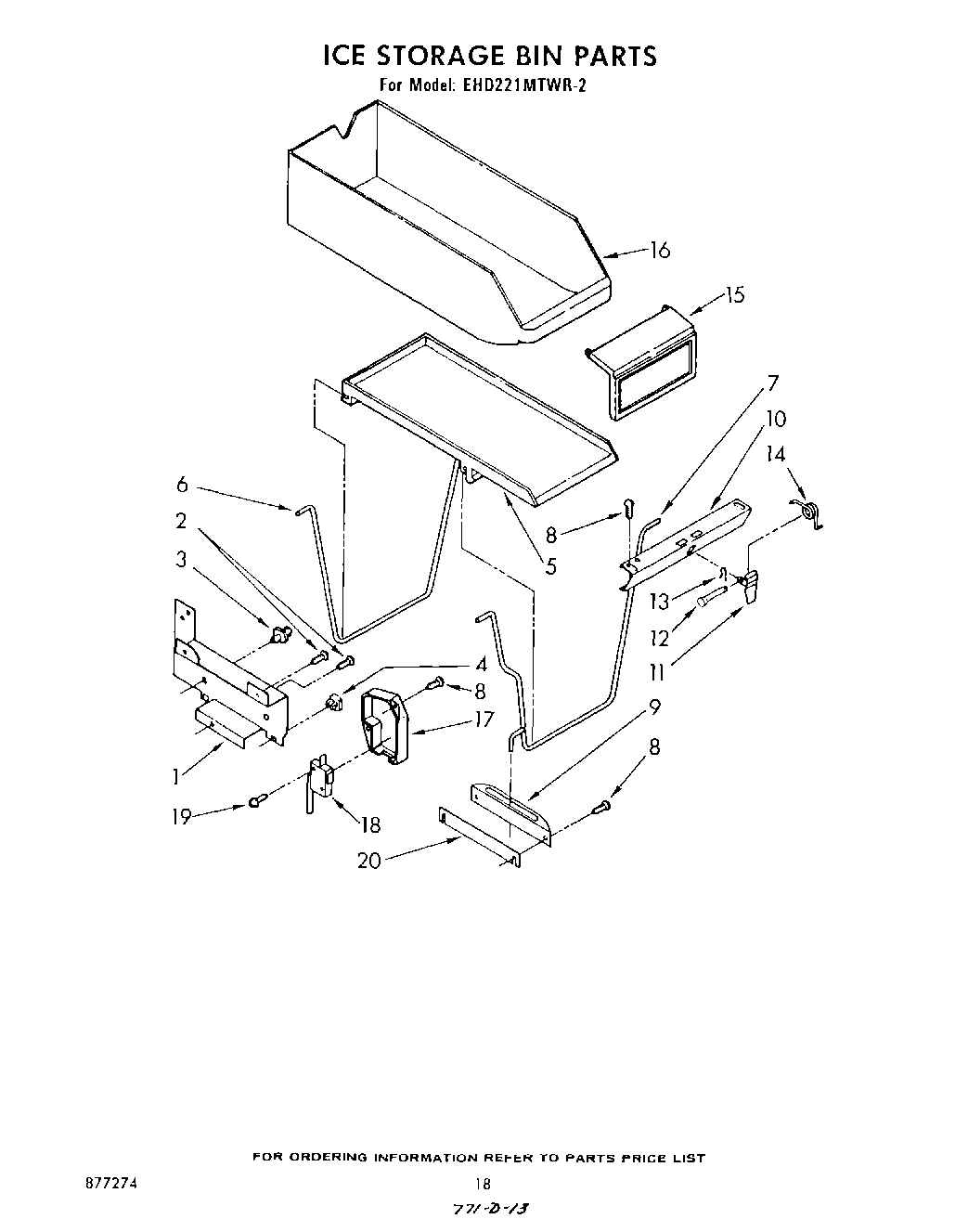

EHD221MTWR2 10 – ICE STORAGE BIN

Products

Position	Product
1	Bracket, Mounting (Ice Maker)
2	Screw, 8 x 3/8
3	Stud, Frame Mounting (2)
4	Grommet (2)
5	Shelf, Ice Cube Pan
6	Shelf Support (Back)
7	Shelf Support (Front)
8	WP488729 Whirlpool Refrigerator Door Screw
9	Guide, Shelf Support
10	Mounting Bracket, Pan Stop
11	Stop, Ice Pan
12	Pin, Roller
13	Retainer, Pin
14	Spring, Stop
15	Front, Ice Compartment
16	Pan, Ice
17	Container, Switch
18	Switch, S.P.S.T.
19	Screw, 4-24 x 5/8 (2)
20	Shim, Guide (Repair)
