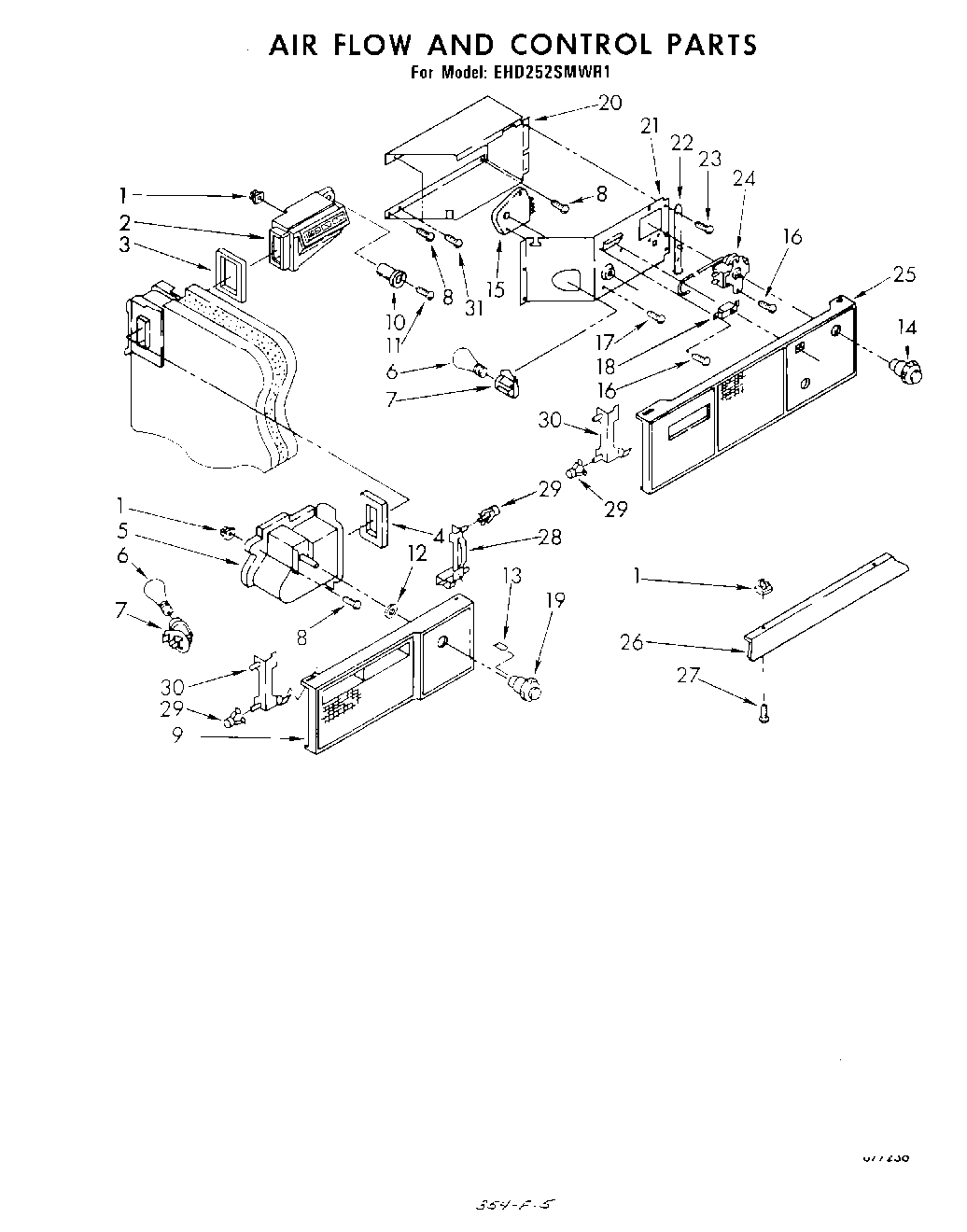

EHD252SMWR1 11 – AIRFLOW AND CONTROLadmin2025-04-26T09:50:46+00:00EHD252SMWR1 11 – AIRFLOW AND CONTROL
Products
| Position | Product |
|---|
| 1 | Grommet |
| 2 | Air Diffuser |
| 3 | Gasket, Air Diffuser |
| 4 | Gasket, Air Scoop |
| 5 | Air Scoop Assembly |
| 6 | RANGE ONLY 40W 120V APPL BULB |
| 7 | 4387478 Whirlpool Refrigerator Light Socket |
| 9 | Light Lens, Freezer |
| 10 | 836667 Whirlpool Refrigerator Spacer |
| 11 | Screw, 8 x 1-1/4 (3) |
| 12 | Retainer, Damper |
| 13 | Knob, Retainer |
| 14 | Knob, Temperature Control |
| 15 | Timer, Defrost (8 Hour- Alternate) |
| 15 | Defrost Timer, 8 Hour |
| 16 | WP489128 Whirlpool Refrigerator Screw |
| 17 | WP3388228 Whirlpool Screw |
| 18 | WPL 984640 |
| 19 | Control Knob |
| 20 | Box, Control |
| 21 | Control Box, Front |
| 22 | Support, Light Lens |
| 23 | W11624204 Whirlpool Screw |
| 24 | WP819470 Whirlpool Refrigerator Thermostat |
| 25 | Light Lens, R.C. |
| 26 | Baffle, Liner Top |
| 27 | WP489069 Whirlpool Compactor Screw |
| 28 | Support, Light Lens (R.S.) |
| 29 | Clip, Tubular |
| 30 | Support, Light Lens (L.S.) |
| 31 | Screw, 8-32 x 3/8 |
