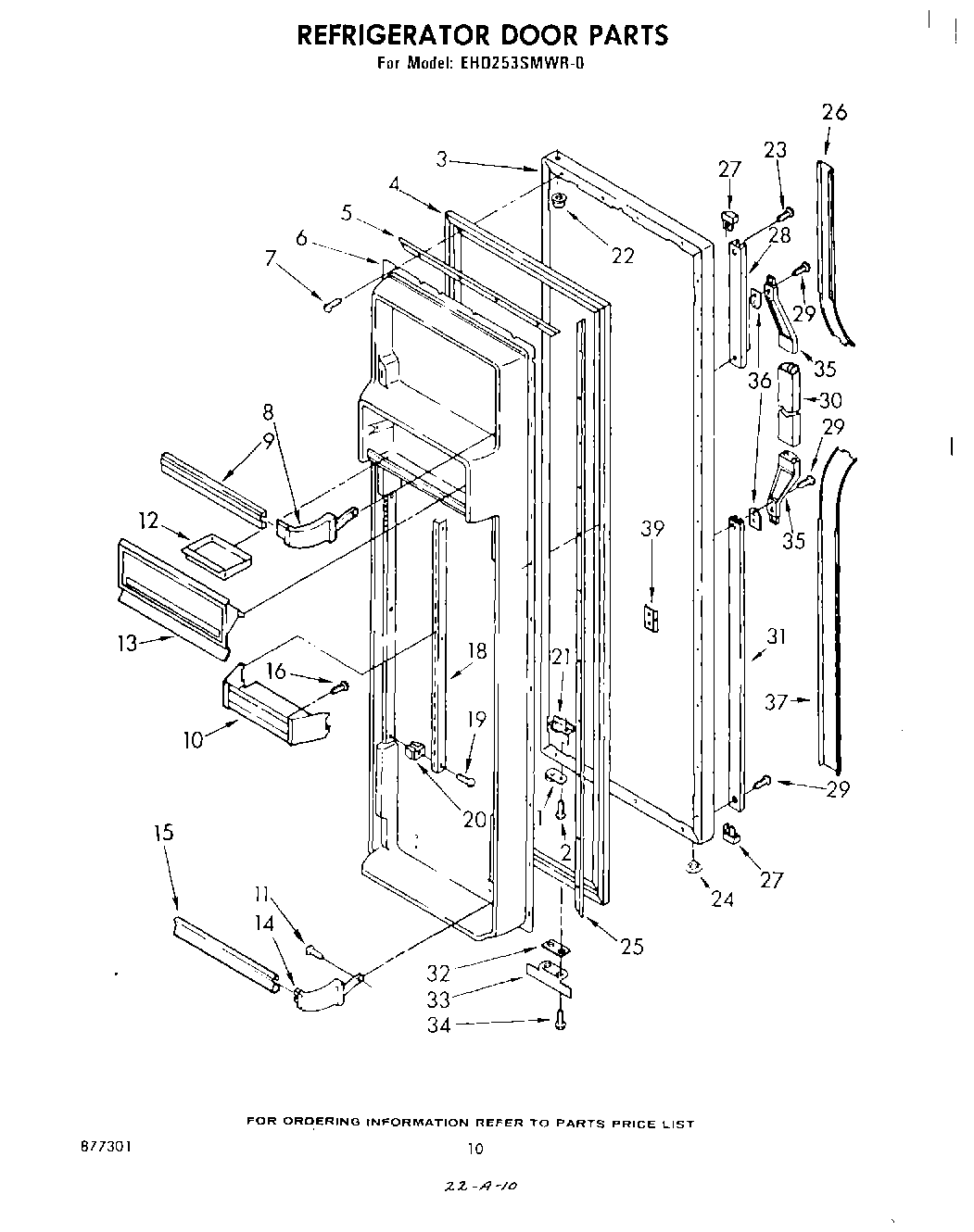

EHD253SMWR0 06 – REFRIGERATOR DOOR

Products

Position	Product
1	4318165 Whirlpool Refrigerator Door Closure Cam Kit
2	WP489069 Whirlpool Compactor Screw
3	Refrigerator, Door Panel (Almond)
3	Refrigerator, Door Panel (Golden Harvest)
3	Refrigerator Door Panel (Coffee)
3	Refrigerator, Door Panel (White)
3	Refrigerator Door Panel (New Avocado)
4	Door Gasket, Magnetic (For Platinum Model Only)
5	Retainer, Top & Bottom
6	Panel, Interior
7	W11624204 Whirlpool Screw
7	SCREW
8	WP849996 Whirlpool Refrigerator Endcap Trim
9	Trim, Door Shelf
10	Door Shelf, Cantilever (3)
11	WP488787 Whirlpool Refrigerator Screw
13	Compartment Door
14	Support, Trim (2)
15	Trim, Door Shelf
16	WP487353 Whirlpool Refrigerator Screw
18	Shelf Ladder
20	Expansion Clip
21	Tap Plate
22	Cap, Hinge Sleeve (2)
23	Screw
24	Hole Plug (2)
25	Retainer, Gasket Side
26	Insert, Handle
27	End Cap
28	Retainer Insert (Top)
29	WP488729 Whirlpool Refrigerator Door Screw
30	Handle, Center (New Avocado)
30	Handle, Center (White, Coffee, & Almond)
30	Handle, Center (Golden Harvest)
31	Retainer Insert (Bottom)
32	Shim
33	Bracket, Door Stop
34	Screw, 89 x 5/8
35	Center End Cap, Handle
36	Shim
37	Insert, Handle
39	Screw Anchor (2)
