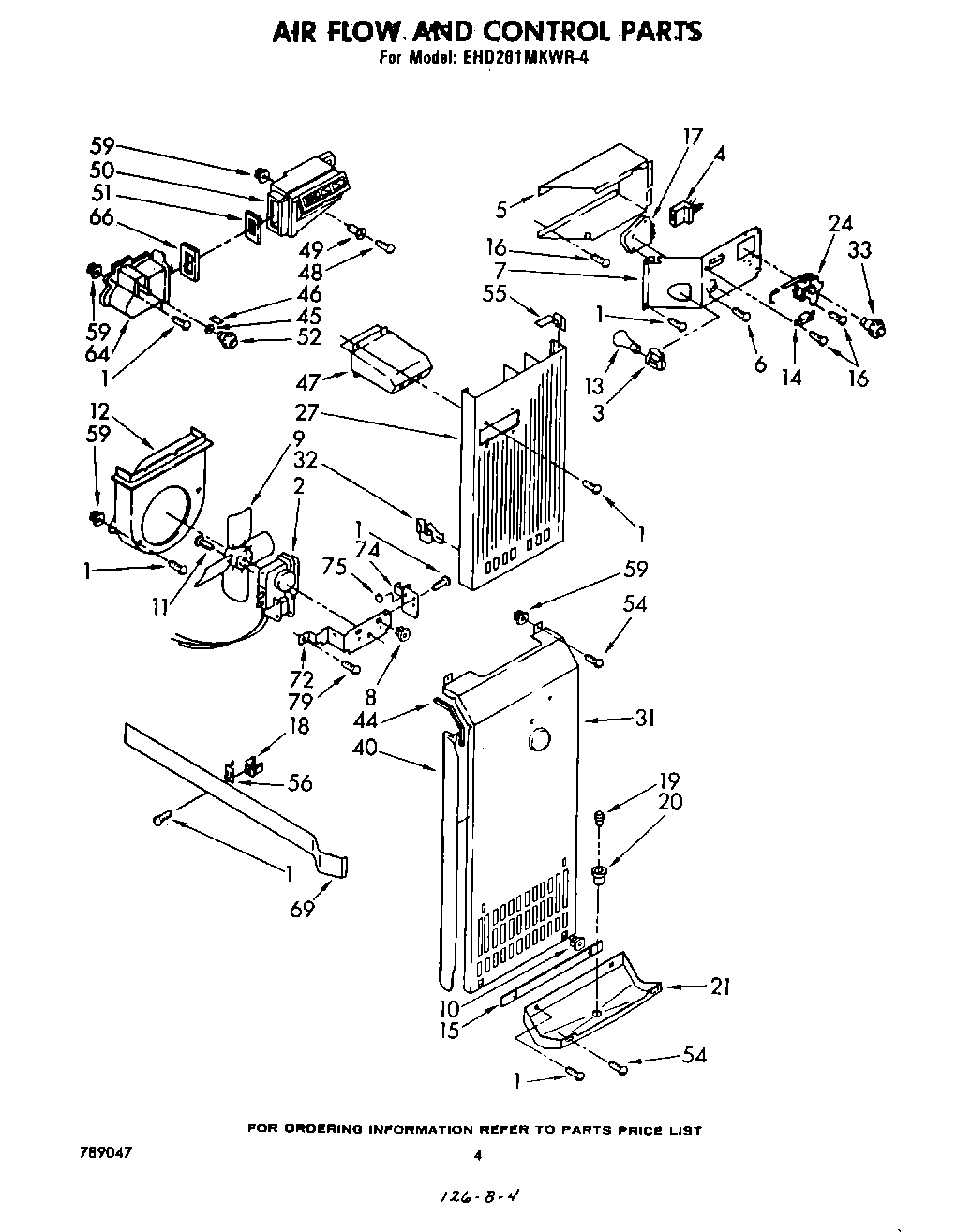

EHD261MKWR4 03 – AIR FLOW AND CONTROL, LIT/OPTIONAL

EHD261MKWR4 03 – AIR FLOW AND CONTROL, LIT/OPTIONAL

Written by

in

EHD261MKWR4 03 – AIR FLOW AND CONTROL, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
285006 Whirlpool Spray
Golden Harvest
350942 Whirlpool Spray Paint
Leveler (Thinner)
paint, spray 13 oz. (coffee)
350956 Whirlpool Spray Assembly
Paint, Spray 13 Oz. (Avocado)
1W11624204 Whirlpool Screw
2482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
34387478 Whirlpool Refrigerator Light Socket
4Liner Wiring (Defrost Timer)
5Box, Control
6WP3388228 Whirlpool Screw
7Control Box Front
8Screw Grommet
9Blade, Fan
10Grommet
11WP487887 Whirlpool Refrigerator Screw
12Scroll Fan
13RANGE ONLY 40W 120V APPL BULB
14WP938213 Whirlpool Refrigerator Power Switch
15Gasket, Drain Pan
16WP489128 Whirlpool Refrigerator Screw
17Defrost Timer, 8 Hour
17Timer, Defrost (8 Hour- Alternate)
18Expansion Clip
19Cap, Drain
20Drain Insert
21Pan, Drain
24WP819470 Whirlpool Refrigerator Thermostat
27Duct, Air
31Cover, Evaporator
322215823 Whirlpool Refrigerator Clip
33Knob, Temperature Control
40Gasket, Evaporator Cover
44Gasket, Cover Top
45Retainer, Damper
46Knob, Retainer
47Air Deflector
48Screw, 8 x 1-1/4 (3)
49836667 Whirlpool Refrigerator Spacer
50Air Diffuser
51Gasket, Air Diffuser
52Control Knob
54WP488729 Whirlpool Refrigerator Door Screw
55Baffle, Air
56Heat Exchanger, Clip
59Grommet
64Air Scoop Assembly
66Gasket, Air Scoop
69WPL 935634
72Fan Bracket, Single
74Fan, Bracket Double
75Grommet (3)
79606755 Whirlpool Refrigerator Bag
79511873 Whirlpool Refrigerator Paint
79212643 Whirlpool Refrigerator Permagum Sealer
79Golden Harvest (Uncut)
7972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
79WP489069 Whirlpool Compactor Screw
79Almond (Uncut)
79WP72107 Whirlpool Touchup
79799344 Whirlpool Refrigerator Paint
7972017 Whirlpool Appliance Touch-Up Paint White
79WPL 935432
79WPL 935822
79WPL 946876
79WPL 789047
79876370 Whirlpool Refrigerator Insulation
79WP503695 Whirlpool Refrigerator Sealer
79Enamel, New Avocado (1 Qt. Uncut)
79Enamel, Coffee (1 Qt. Uncut)
79Paint, Touch-Up 1/2 Oz. (Coffee)
7972109 Whirlpool Dacor Avocado Touch-Up Paint
7972032 Whirlpool Touch Up Paint Black
79WPL 876029
79WPL 799833
79WPL 799832
79WPL 799351
79Enamel, Black (1 Qt. Uncut)
79CEMENT, ALUMILASTIC (1 1/4 OZ.)
79TAPE, VINYL (3/4 X 108“)
79WP542638 Whirlpool Refrigerator Grease
79WP505587 Whirlpool Refrigerator Sealer
79WPL 934489
