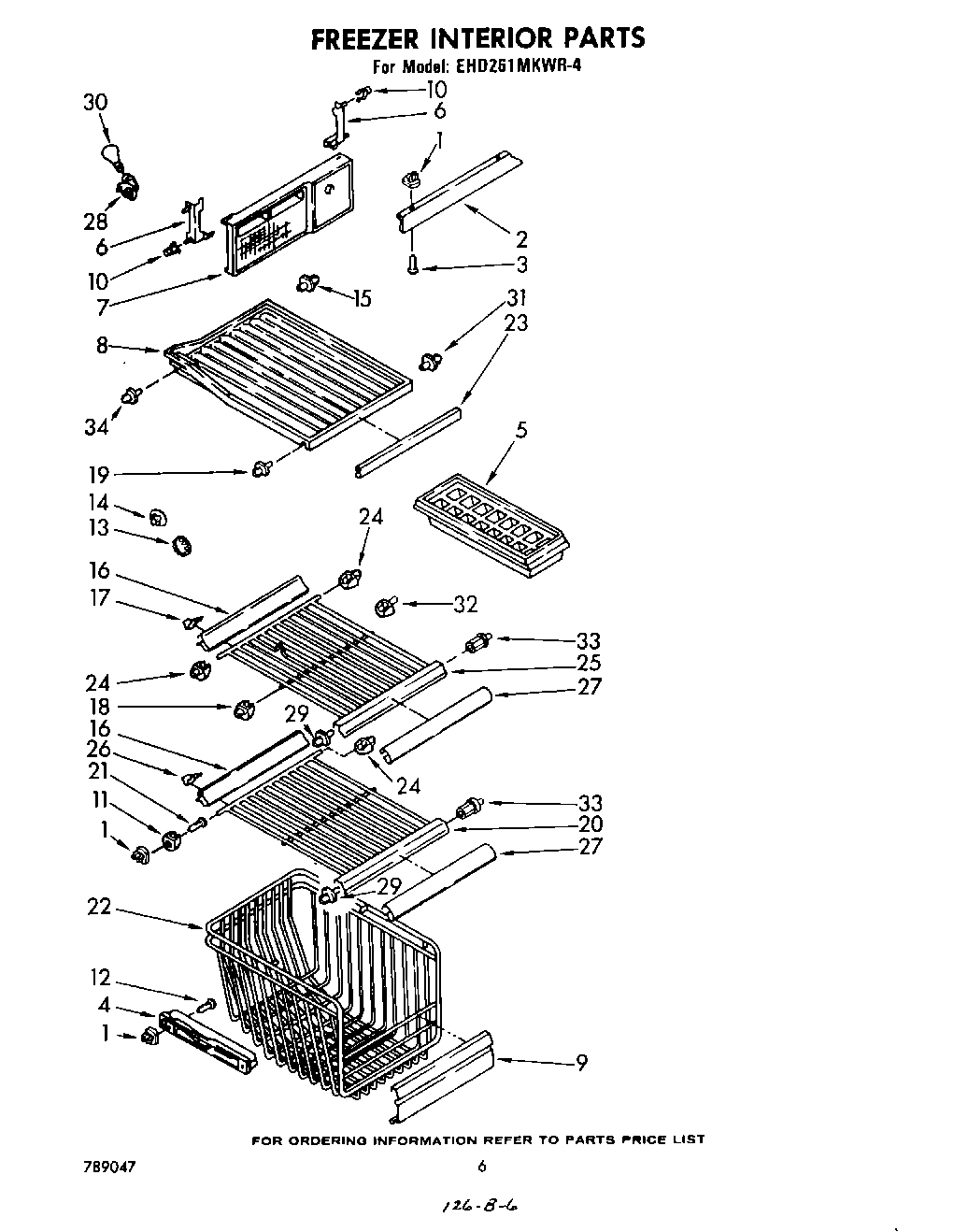

EHD261MKWR4 04 – FREEZER INTERIOR

Products

Position	Product
1	Grommet
2	Baffle, Liner Top
3	WP489069 Whirlpool Compactor Screw
4	Track, Shelf (L.S.)
4	Track, Shelf (R.S.)
5	WP841180A Whirlpool Microwave Glass Turntable Tray
6	Support, Light Lens (R.S.)
6	Support, Light Lens (L.S.)
7	Light Lens, Freezer
8	Shelf, Solid
9	Trim, Freezer Basket
10	Clip, Tubular
11	Shelf Stud, Saddle L.S.
12	W11693756 Whirlpool Screw Assembly
13	Hole, Plug
14	Hole, Plug
15	Stud, Shelf
16	Reflector, Shelf
17	Clip, Reflector
18	Shelf Stud
19	Shelf, Stud
20	Wire Shelf
21	WP488729 Whirlpool Refrigerator Door Screw
22	Basket, Freezer
23	Trim, Shelf
24	Shelf Stud, Saddle
24	Shelf, Saddle (R.S.)
25	Wire Shelf
26	Clip Reflector
27	Trim Shelf, Front
28	4387478 Whirlpool Refrigerator Light Socket
29	Shelf, Stud (2)
30	RANGE ONLY 40W 120V APPL BULB
31	Stud, Shelf
32	Stud, Shelf
33	Shelf, Stud
34	Stud, Shelf (2)
