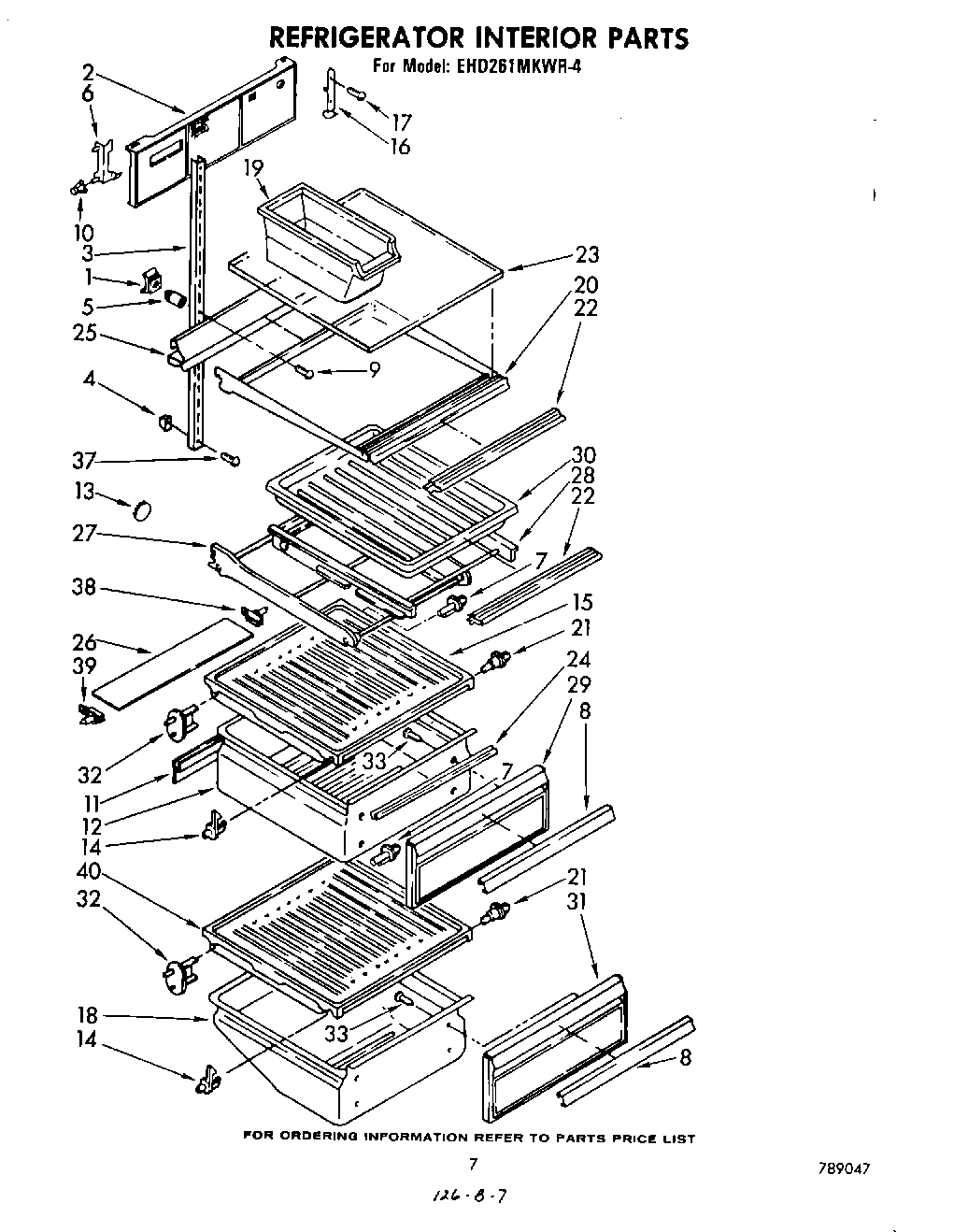

EHD261MKWR4 05 – REFRIGERATOR INTERIOR

Products

PositionProduct
1Screw, Anchor (3)
2Light Lens
3Shelf Ladder (2)
4520965 Whirlpool Refrigerator Support
5Screw, Grommet
6Support, Light Lens (L.S.)
7Stud
8Overlay, Front Cover
9Screw, 8 x 1-1/4 (3)
10Clip, Tubular
11Crisper Gasket Rear
12Pan, Crisper
13Hole, Plug
14Shelf, Stud
15Pan Slide & Cover (Crisper)
16Support, Light Lens
17W11624204 Whirlpool Screw
18Pan (Meat)
19WP982704 Whirlpool Refrigerator Container
20Shelf, Cantilever
21Shelf, Stud
22Shelf Trim, Cantilever
23Glass, Cantilever Shelf
24Crisper Gasket Front
25Reflector, Cantilever
26Light Lens, Crisper
27Frame, Cantilever Shelf
28Rollout Shelf, Cantilever
29Front, Pan (Crisper)
30Bin, Rollout Plastic
31Front, Pan (Meats)
32Stud, Shelf
33WP488729 Whirlpool Refrigerator Door Screw
33Screw (Repair)
37Screw (Repair)
37Screw, 8-32 x 1-1/4
38Stud, Light Lens (R.S.)
39Stud Light Lens (L.S.)
40Pan Slide & Cover
