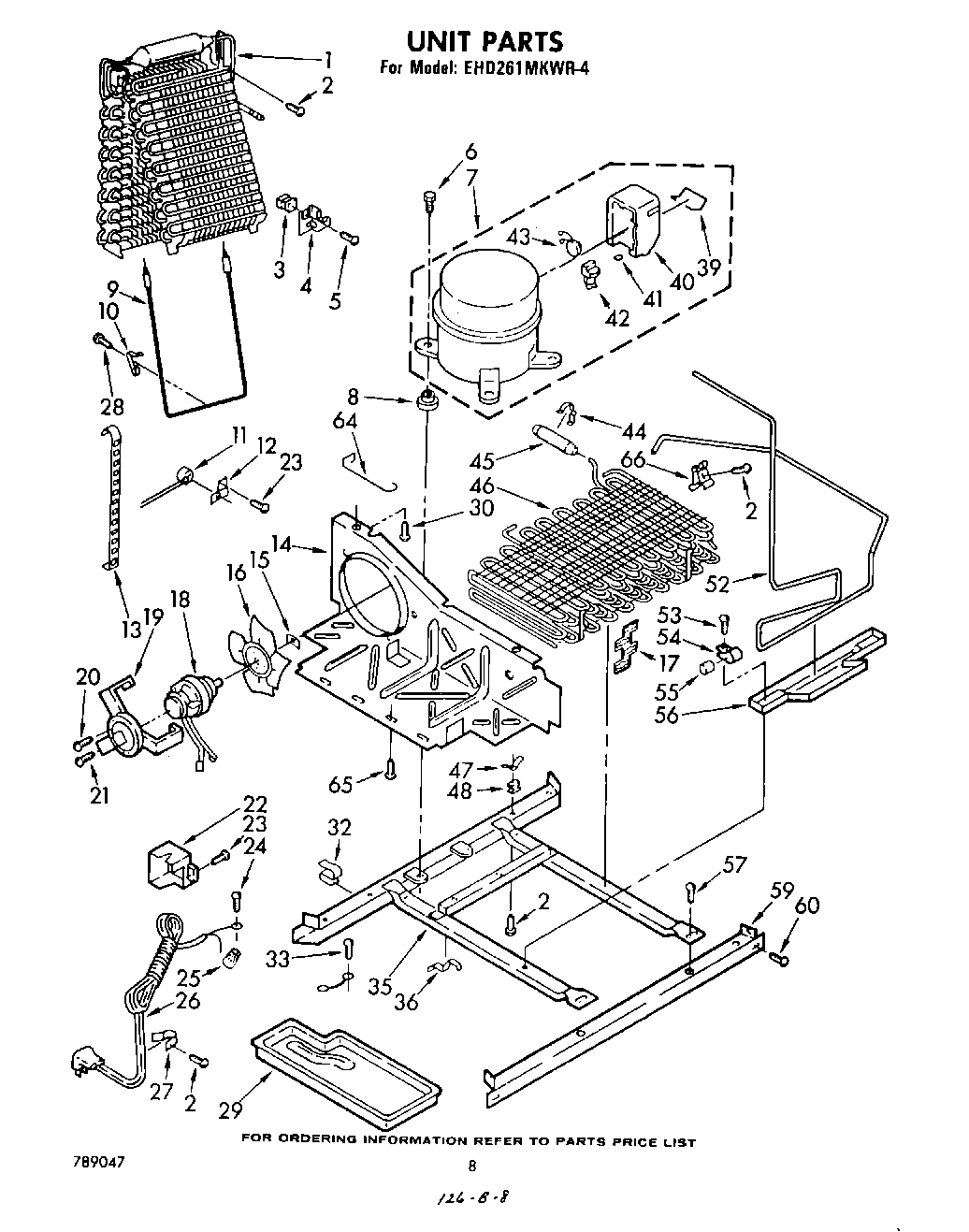

EHD261MKWR4 06 – UNIT

Products

Position	Product
1	Evaporator
2	W11624204 Whirlpool Screw
3	Grommet, Screw
4	Support, Evaporator
5	SCREW
6	Screw, 1/4-28 x 1“ (4)
7	Compressor Kit (Includes Items 39, 40, 41, 42 & 43)
8	Grommet (4)
9	Heater, Defrost
10	Clamp, Evaporator
11	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
12	Clamp
13	Shield, Evaporator (4)
14	Baffle, Air
15	WP486692 Whirlpool Refrigerator Nut
16	Fan, Blade
17	Spacer Condenser (4)
18	833697 Whirlpool Condenser Fan Motor
19	Bracket, Motor
20	Screw, 8-36 x 3/8 (3)
22	Box, Junction
23	WP488729 Whirlpool Refrigerator Door Screw
24	Screw, 8-32 x 3/8
25	Wire Connector
26	Cord, Service
27	549193 Whirlpool Refrigerator Power Clamp
28	W11693756 Whirlpool Screw Assembly
29	Tray, Evaporator
30	Screw, 8-15 x 3/8
32	Clip, Wire (2)
33	303776 Whirlpool Dishwasher Screw
35	Frame Assembly
36	Clip (2)
39	Spring
40	Case, Relay
41	Bumper
42	Relay (Service Compressor)
42	Relay
43	Overload (Service Compressor)
43	Overload
44	Clamp
45	W10843121 Whirlpool Refrigerator Tube
46	Condenser & Precooler Assembly
47	Clamp (4)
48	Grommet (4)
52	Exchanger, Heat
53	WPW10141625 Whirlpool Refrigerator Screw Assembly
54	Clamp Tube
55	Dampener (2)
56	Pan, Drip
57	Screw, 1/4-28 x 1/2 (2)
59	Rail, Front
60	489340 Whirlpool Refrigerator Screw
64	Guard, Fan
65	Screw, 8 x 3/8
66	978026 Whirlpool Refrigerator Primary Valve
66	978027 Whirlpool Refrigerator Primary Valve
66	978030 Whirlpool Refrigerator Valve
66	VALVE, ACCESS (1/2“)
66	Clip, Tube (4)
66	VALVE, ACCESS (5/8“)
66	WP978025 Whirlpool Refrigerator Valve
