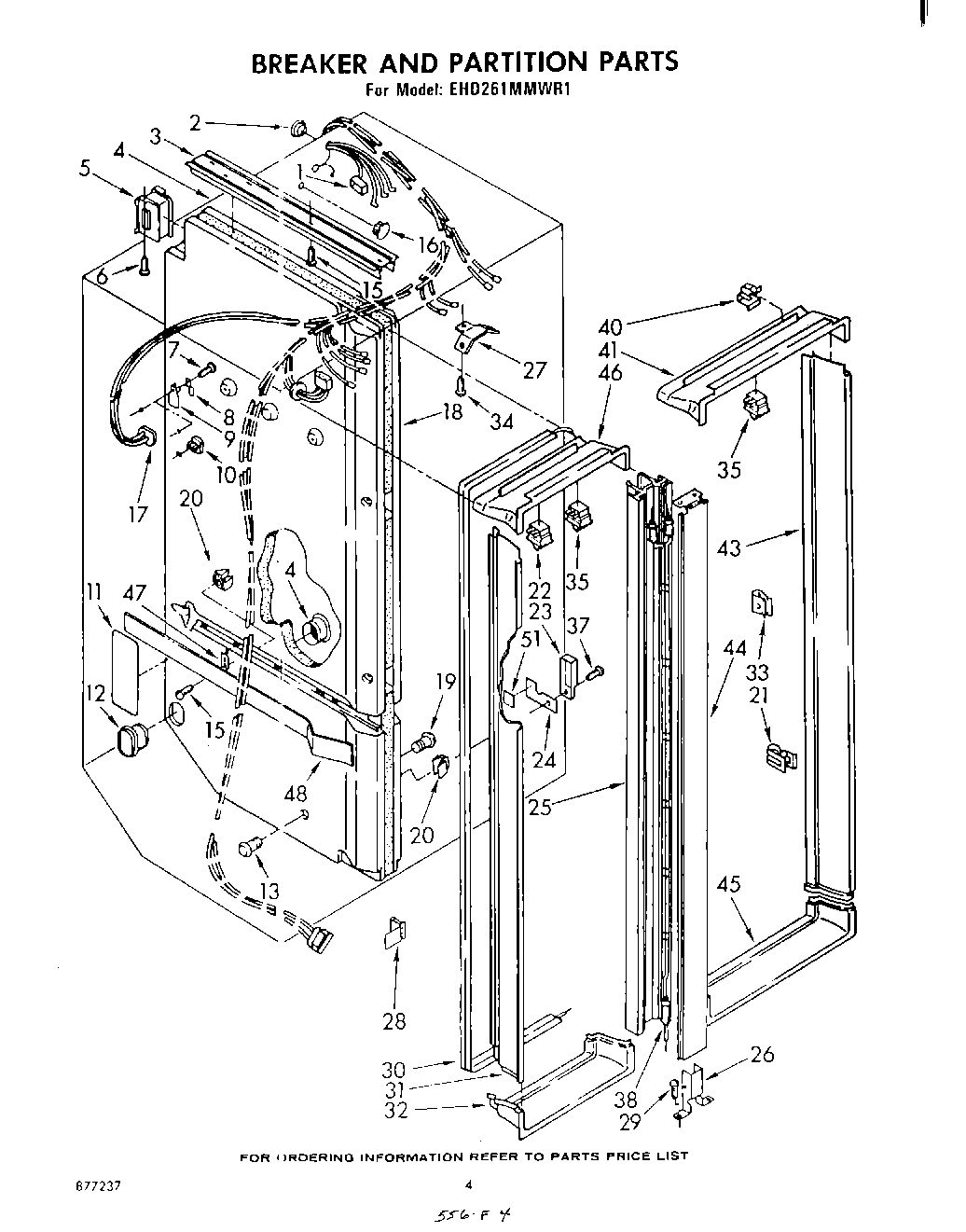

EHD261MMWR1 03 – BREAKER AND PARTITION

Products

Position	Product
1	Liner Wiring (Defrost Timer)
2	Grommet, Wiring
3	Track, Divider (Top)
3	Track, Divider (Back)
3	Track, Divider (Bottom)
4	Liner (Not A Serviceable Part)
5	Control Connector & Gasket Assembly
6	WP488163 Whirlpool Refrigerator Screw
7	SCREW
8	Support Clip
9	Screw Grommet
10	Grommet
11	Shield, Divider
12	Retainer, Insert
13	Retainer, Hole Insert
14	Insert, Air Return
15	W11624204 Whirlpool Screw
16	Hole, Plug
17	Wiring, Ice Maker
18	Divider Mullion Assembly
19	Insert, Hole
20	Expansion Clip
21	Breaker Trim, Bottom Clip
22	WP4387911 Whirlpool Refrigerator Switch
23	Escutcheon, Meat Pan Control
24	Slide, Meat Pan Control
25	Break Mullion, Frame
26	Mullion, Bracket
27	Retainer Bracket, Divider
28	Stile Clip, Retainer
29	WP308685 Whirlpool Microwave Screw
29	WP488729 Whirlpool Refrigerator Door Screw
30	Heater, Stile
31	Breaker Trim, Freezer (L.S.)
32	Breaker Trim, Bottom
33	Breaker Trim, Clip
35	W11384469 Whirlpool Door Switch
37	Screw, 8-15 x 1/2 (4)
38	Heater, Mullion
40	Breaker, Clip
41	Breaker Trim, Top
43	Breaker Trim, R.S.
44	Mullion, Front (New Avocado)
44	Mullion, Front (White)
44	Mullion, Front (Almond)
44	Mullion, Front (Coffee)
44	Mullion, Front (Golden Harvest)
45	Breaker Trim, Bottom
46	Breaker Trim, Top
47	Heat Exchanger, Clip
48	WPL 935634
51	Pad, Foam
