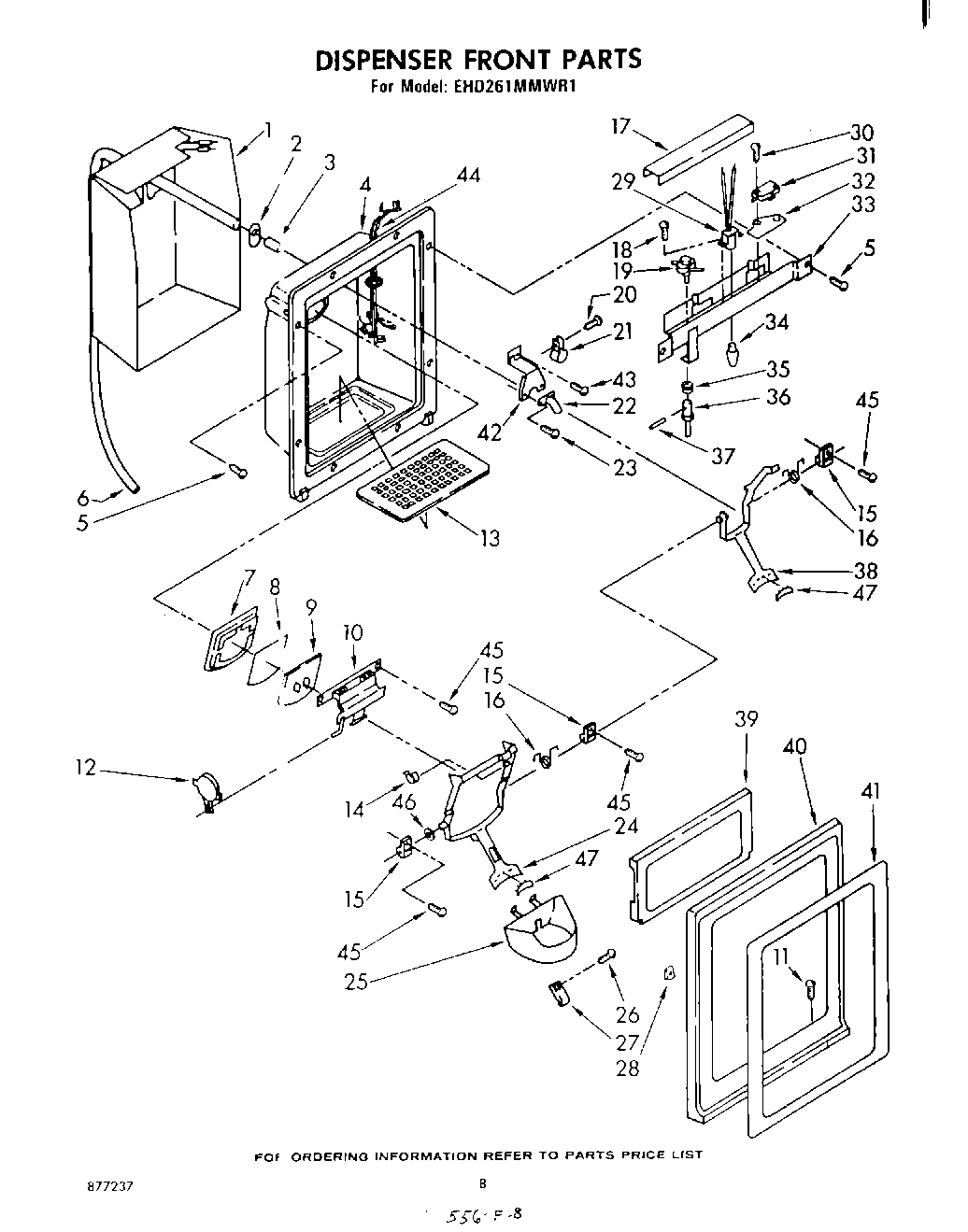

EHD261MMWR1 05 – DISPENSER FRONT

Products

Position	Product
1	Heater, Ice Dispenser
2	Grommet
3	4387491 Whirlpool Refrigerator Insert
4	Housing, Dispenser
5	W11693756 Whirlpool Screw Assembly
6	W10823511 Whirlpool Refrigerator Water Tube
7	Gasket, Door
8	Shield, Ice Door
9	Door, Ice
10	Door Mechanism Assembly
11	WP488729 Whirlpool Refrigerator Door Screw
12	Mechanism Delay
13	Grille, Overflow
14	Clip, Bearing (2)
15	Bearing, Lever (3)
16	Spring, Lever (2)
17	Shield, Wiring
18	WP489128 Whirlpool Refrigerator Screw
19	Switch, Light
20	WP965173 Whirlpool Dishwasher Screw
21	WP488878 Whirlpool Refrigerator Tube Clamp
22	WP4388152 Whirlpool Refrigerator Fitting
24	Lever, Ice Dispenser
25	Guide, Ice
26	Screw
27	Glass Top
28	Speed Nut
29	Socket, Lamp
30	Screw
31	Switch
32	Insulator, Switch (2)
33	Bracket, Control
34	WP22002263 Whirlpool Dryer 10W Light Bulb
35	Spring, Plunger
36	Plunger, Extension
37	Pin, Retainer
38	WP987074 Whirlpool Refrigerator Dispenser Arm
39	Cover, Housing
40	Front Cover, Housing
41	Insert, Housing
42	Bracket, Water
43	Screw, 8-18 x 3/4
44	Wiring, Assembly Door
45	WP3400906 Whirlpool Refrigerator Screw
46	Washer
47	Pad, Lever
