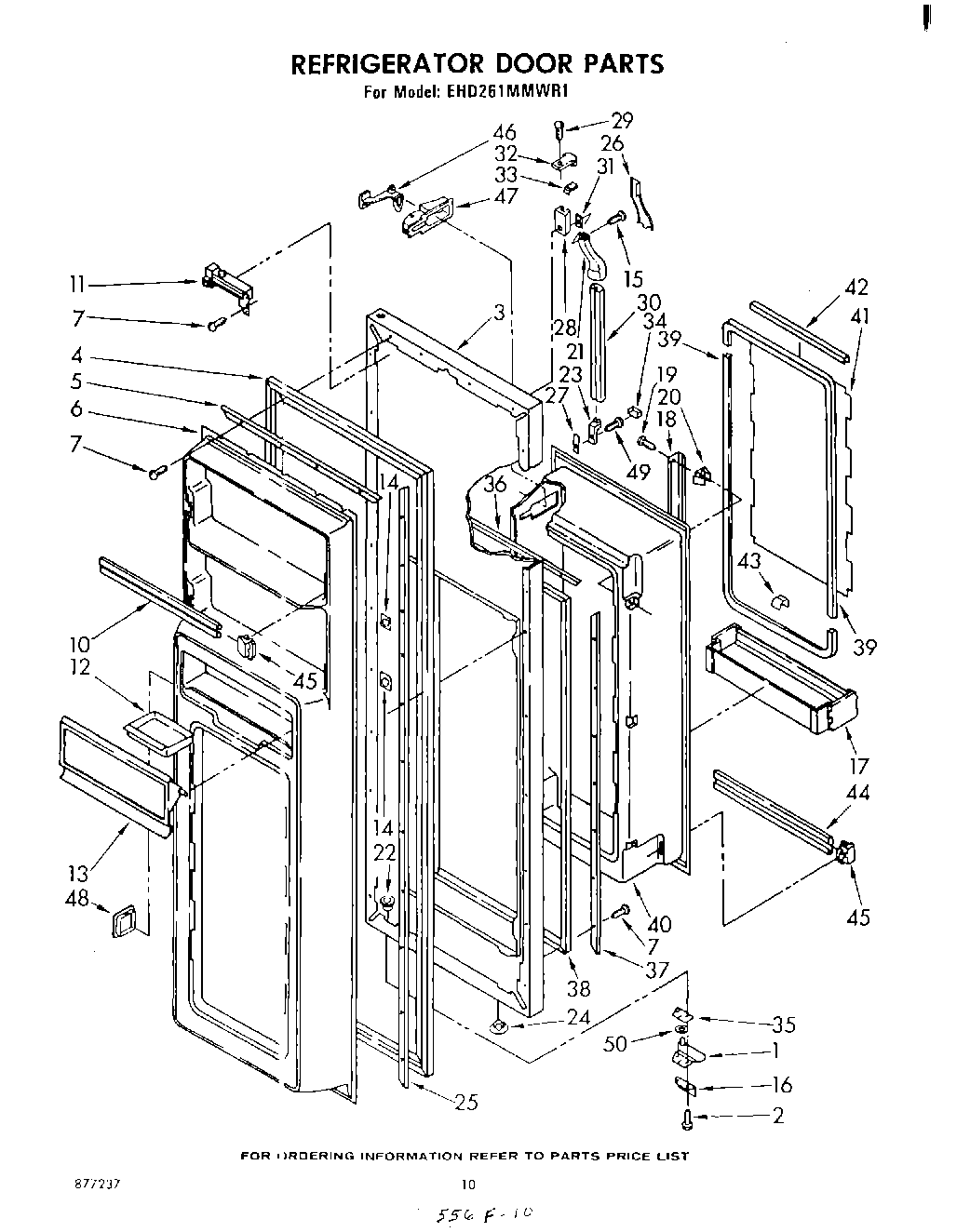

EHD261MMWR1 06 – REFRIGERATOR DOOR , LIT/OPTIONAL

EHD261MMWR1 06 – REFRIGERATOR DOOR , LIT/OPTIONAL

Written by

in

EHD261MMWR1 06 – REFRIGERATOR DOOR , LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	285006 Whirlpool Spray
	paint, spray 13 oz. (coffee)
	WPL 511881
	Paint, Spray 13 Oz. (Avocado)
	350942 Whirlpool Spray Paint
	Golden Harvest
	Leveler (Thinner)
	350956 Whirlpool Spray Assembly
1	Hinge, Bottom
2	WP250830 Whirlpool Refrigerator Screw
3	Door, Refrigerator (White)
3	Door, Refrigerator (Coffee)
3	Door, Refrigerator (Almond)
3	Door, Refrigerator (New Avocado)
3	Door, Refrigerator (Golden Harvest)
4	Door Gasket, Magnetic (For Platinum Model Only)
5	Retainer, Top & Bottom
6	Panel, Interior
7	W11624204 Whirlpool Screw
7	SCREW
10	WPL 988746
11	WPL 840847
13	WPL 935352
14	WP939101 Whirlpool Refrigerator Plate
16	Bracket, Door Stop
17	Shelf, Cantilever (3)
18	Shelf Ladder
20	Expansion Clip
21	Center End Cap, Handle
22	Cap, Hinge Sleeve (2)
23	Handle End,
24	Hole Plug (2)
25	Retainer, Gasket Side
26	Insert, Handle
27	Shim, Handle
28	Retainer, Insert
29	Screw, 6-32 x 1/2
30	Handle, Center (New Avocado)
30	Handle, Center (White, Coffee & Almond)
30	Handle, Center (Golden Harvest)
31	Shim
32	Cap, Handle (2)
33	Spacer, End Cap (2)
34	Cover, End Cap
35	Shim, Bottom Hinge
36	Reinforcement Strip, Top & Bottom (2)
37	Reinforcement Strip, Side
38	Gasket, Seal
39	WPL 986453
40	Panel, Interior Storage
41	Panel, Decorative
42	Trim, Decorative
43	Cap Trim Joint
44	WPL 986448
45	WP839904 Whirlpool Refrigerator Endcap Trim
46	WPL 935111
47	WPL 935109
48	WPL 935112
49	WP488729 Whirlpool Refrigerator Door Screw
50	Golden Harvest (Uncut)
50	WPL 935825
50	WPL 877237
50	WPL 940689
50	Washer
50	WP505587 Whirlpool Refrigerator Sealer
50	876370 Whirlpool Refrigerator Insulation
50	833938 Whirlpool Refrigerator Terminal
50	606755 Whirlpool Refrigerator Bag
50	511873 Whirlpool Refrigerator Paint
50	212643 Whirlpool Refrigerator Permagum Sealer
50	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
50	Almond (Uncut)
50	WP72107 Whirlpool Touchup
50	799344 Whirlpool Refrigerator Paint
50	WP542638 Whirlpool Refrigerator Grease
50	TAPE, VINYL (3/4 X 108“)
50	CEMENT, ALUMILASTIC (1 1/4 OZ.)
50	WPL 799351
50	Enamel, New Avocado (1 Qt. Uncut)
50	Enamel, Coffee (1 Qt. Uncut)
50	Paint, Touch-Up 1/2 Oz. (Coffee)
50	72109 Whirlpool Dacor Avocado Touch-Up Paint
50	72032 Whirlpool Touch Up Paint Black
50	WPL 876029
50	WPL 799833
50	WPL 799832
50	Enamel, Black (1 Qt. Uncut)
50	72017 Whirlpool Appliance Touch-Up Paint White
