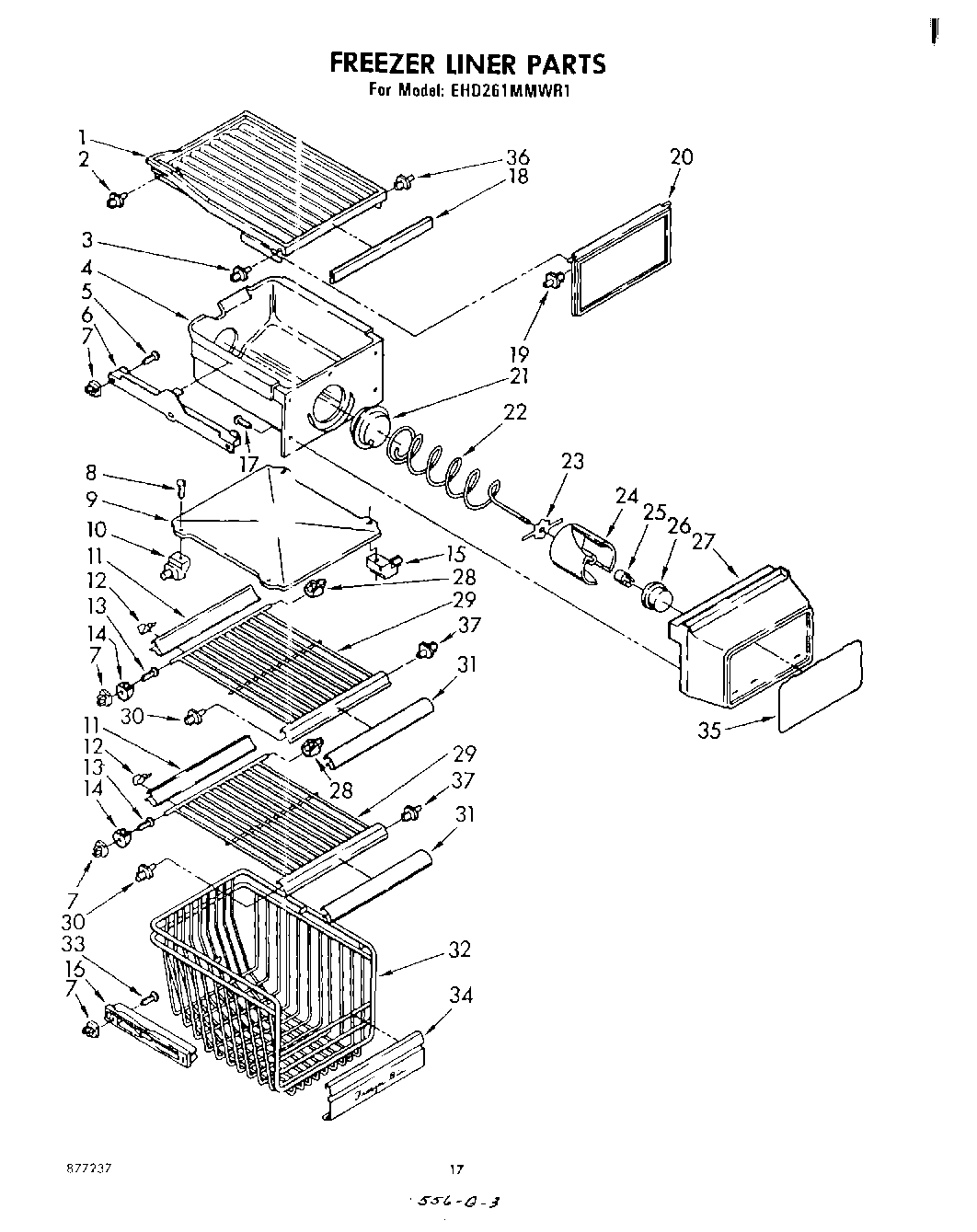

EHD261MMWR1 11 – FREEZER LINER

Products

Position	Product
1	Shelf, Solid
2	Stud, Shelf (2)
3	Shelf, Stud
4	Ice Container
5	Screw, 8 x 1
6	Slide, Freezer Bin
7	Grommet
9	Baffle, Ice Container
10	Retainer, Stud (4)
11	Reflector, Shelf
12	Clip Reflector
13	WP488729 Whirlpool Refrigerator Door Screw
14	Shelf Stud, Saddle L.S.
15	Retainer, Stud
16	Track, Shelf (R.S.)
16	Track, Shelf (L.S.)
17	WP488787 Whirlpool Refrigerator Screw
18	Trim, Shelf
19	Shelf, Stud
20	Frontice, Compartment
21	W10749708 Whirlpool Refrigerator Coupling
22	Conveyor, Ice Container
23	Drum, Drive Bar
24	Drum, Ice Dispenser
25	Collar, Conveyor
26	Bearing, Conveyor
27	Front Cover, Ice Dispenser
28	Shelf, Saddle (R.S.)
29	Wire Shelf
30	Shelf, Stud (2)
31	Trim Shelf, Front
32	Basket, Freezer
33	W11693756 Whirlpool Screw Assembly
34	Trim, Freezer Basket
35	Overlay, Front Cover
36	Stud, Shelf
37	Shelf, Stud
