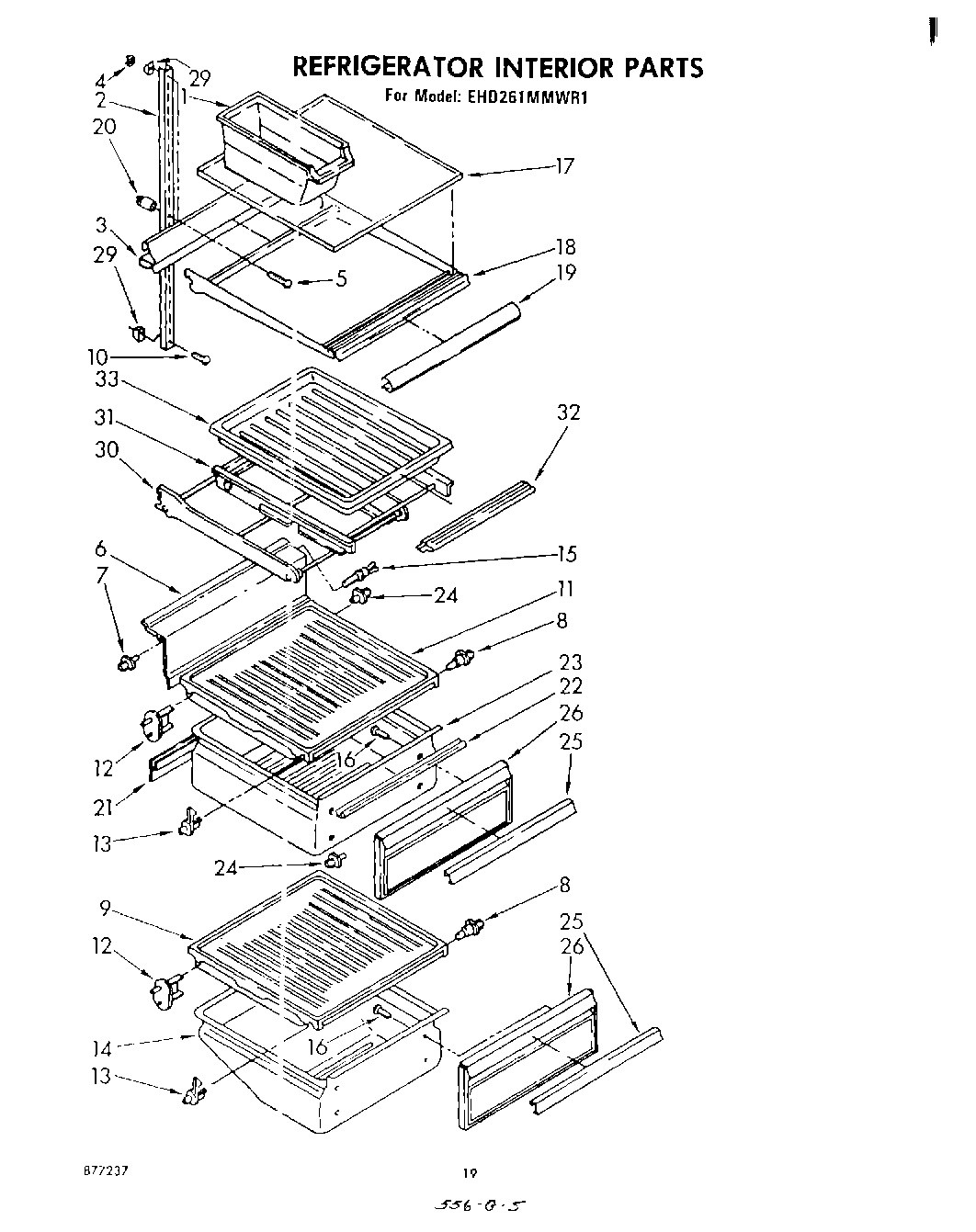

EHD261MMWR1 12 – REFRIGERATOR INTERIOR

Products

Position	Product
1	WP982704 Whirlpool Refrigerator Container
2	Shelf Ladder (2)
3	Reflector, Cantilever
4	Screw, Anchor (3)
5	Screw, 8 x 1-1/4 (3)
6	Light Lens, Lower
7	Stud, Shelf
8	Shelf, Stud
9	Pan Slide & Cover
10	Screw (Repair)
10	Screw, 8-32 x 1-1/4
11	Pan Slide & Cover (Crisper)
12	Stud, Shelf
13	Shelf, Stud
14	Pan (Meat)
15	Stud, Shelf (2)
16	Screw (Repair)
16	WP488729 Whirlpool Refrigerator Door Screw
17	Glass, Cantilever Shelf
18	Shelf, Cantilever
20	Screw, Grommet
21	Crisper Gasket Rear
22	Crisper Gasket Front
23	Pan, Crisper
24	Stud
25	Overlay, Front Cover
26	Front, Pan (Crisper)
26	Front, Pan (Meats)
29	520965 Whirlpool Refrigerator Support
30	Frame, Cantilever Shelf
31	Rollout Shelf, Cantilever
32	Shelf Trim, Cantilever
33	Bin, Rollout Plastic
