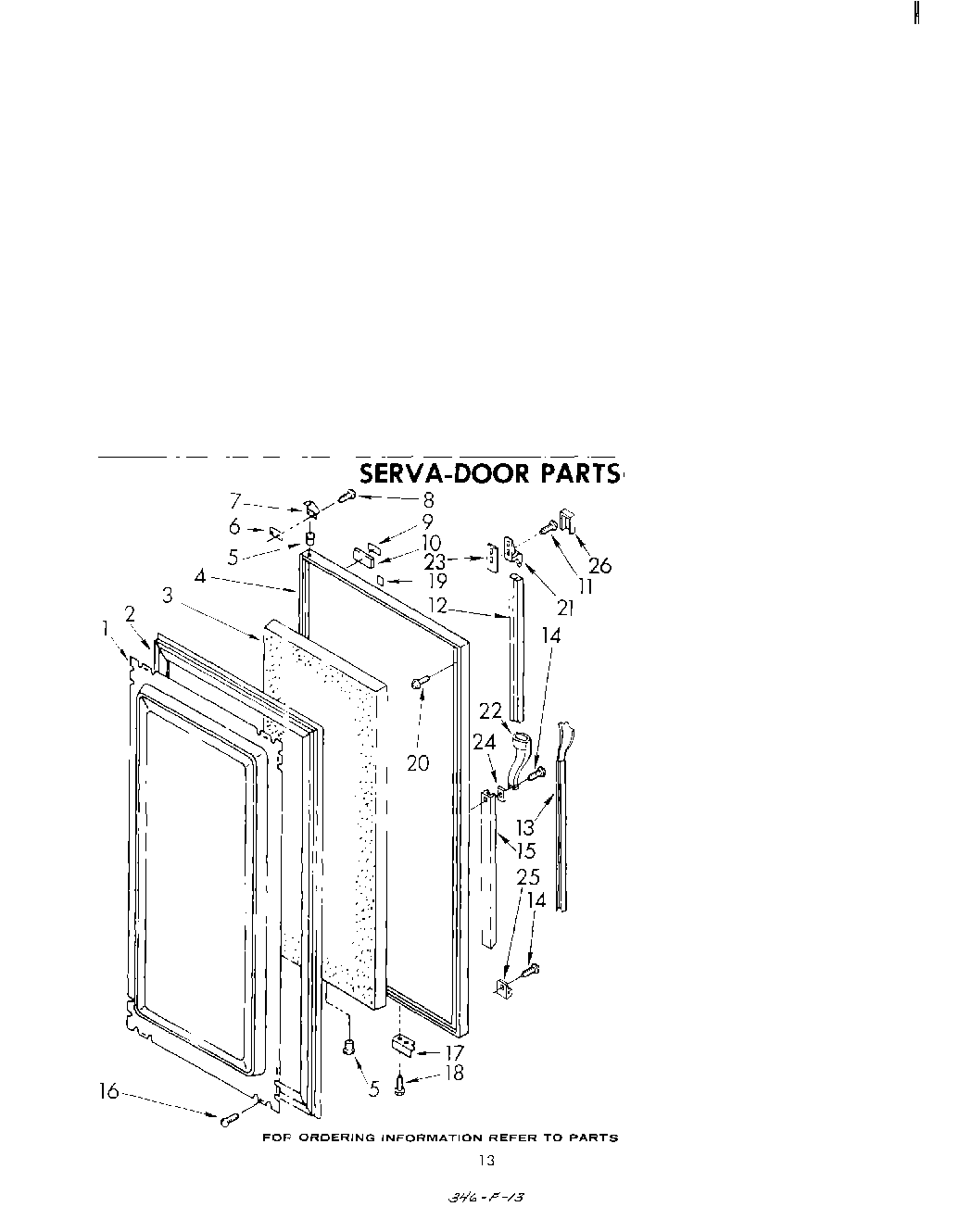

EHD261MMWR2 08 – SERVA DOORadmin2025-04-26T09:50:39+00:00EHD261MMWR2 08 – SERVA DOOR
Products
| Position | Product |
|---|
| 1 | Panel, Interior |
| 2 | Gasket, Serva-Door |
| 3 | Insulation, Servadoor |
| 4 | Serva-Door (White) |
| 4 | Serva-Door (Coffee) |
| 4 | Serva-Door (Golden Harvest) |
| 4 | Serva-Door (New Avocado) |
| 4 | Serva-Door (Almond) |
| 5 | Sleeve, Hinge Pivot |
| 6 | Shim, Hinge Top |
| 7 | Hinge, Top |
| 8 | Screw (Repair) |
| 9 | Insert, Nameplate |
| 10 | Escutcheon, Nameplate |
| 11 | Screw, 8-32 x 7/16 |
| 12 | Handle, Center (Golden Harvest) |
| 12 | Handle, Center (White, Coffee & Almond) |
| 12 | Handle, Center (New Avocado) |
| 13 | Insert, Handle |
| 14 | WPL 488844 |
| 15 | Retainer, Insert |
| 16 | WP488729 Whirlpool Refrigerator Door Screw |
| 17 | Bracket, Door Stop |
| 18 | Screw (Repair) |
| 18 | Screw, 8 x 7/16 |
| 19 | Tape |
| 20 | W11624204 Whirlpool Screw |
| 21 | Handle End, |
| 22 | Center End Cap, Handle |
| 23 | Shim, Handle |
| 24 | Shim |
| 25 | End Cap, Retainer |
| 26 | Cover, End Cap |
