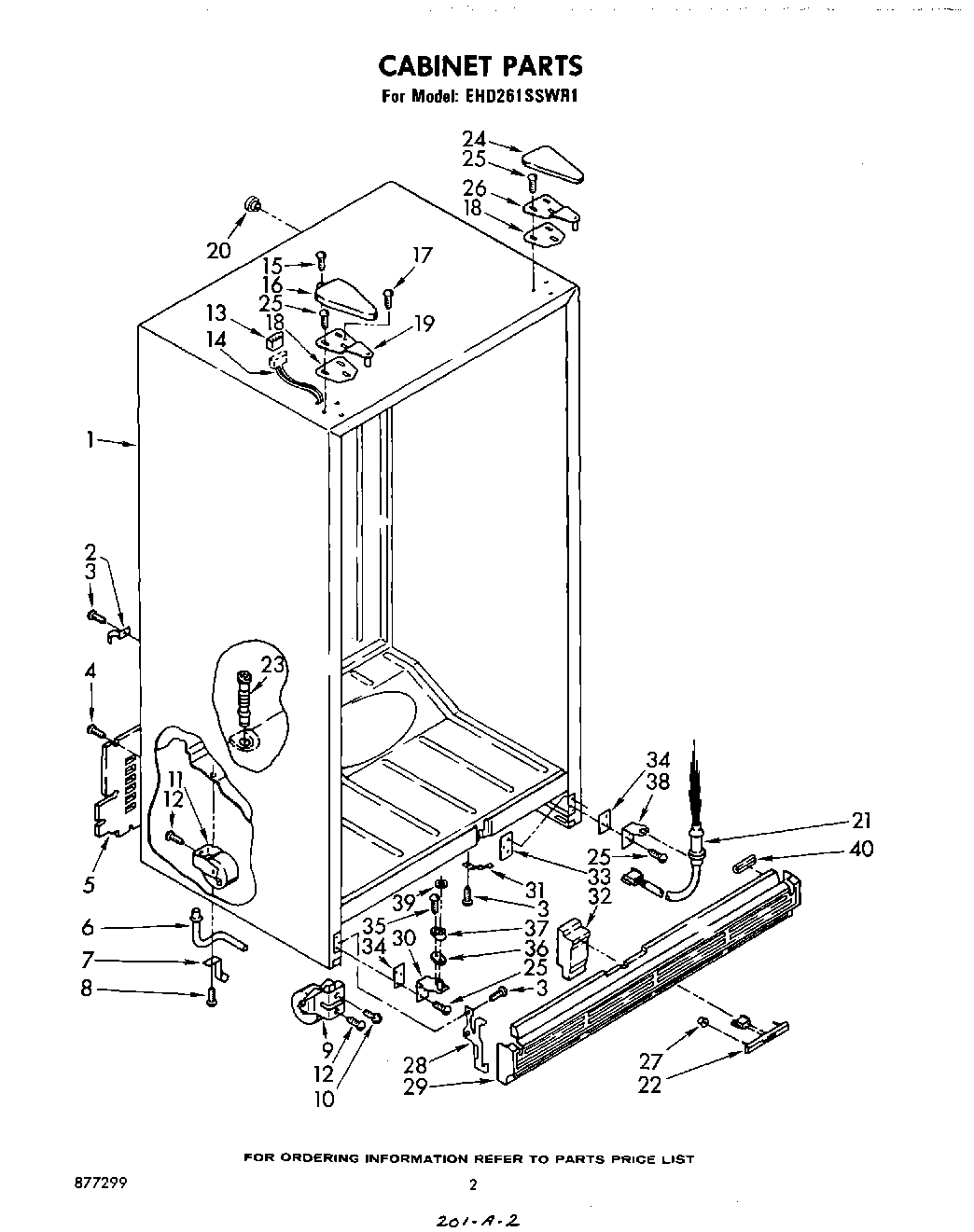

EHD261SSWR1 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Clamp, Water Line (2)
3	W11624204 Whirlpool Screw
5	WPL 851174
6	Extension, Drain Fitting
7	Cup, Drain Extension
8	Screw, 8-15 x 3/8
9	Roller, Front
10	Screw, 5/16-24 x 1
11	WPW10250570 Whirlpool Refrigerator Cabinet Roller
12	Screw, 1/4-28 x 1/2 (2)
13	WPL 851648
14	WPL 482553
15	Screw, 6-32 x 1/2
16	Hinge Cover (Coffee)
16	Hinge Cover (Golden Harvest)
16	WP1129262 Whirlpool Refrigerator Cover
16	Hinge Cover (New Avocado)
17	WP488234 Whirlpool Air Conditioner Screw
18	Shim, Hinge Top
19	Hinge, Top Freezer
20	Grommet
21	Wiring Assembly Door
22	WPL 939954
22	WPL 939956
22	WPL 939953
22	Door, Sensor (Pin, Terminal (Repair))
22	Door Se
22	WPL 939955
23	Drain Fitting, Liner
24	Hinge Cover (Golden Harvest)
24	Hinge Cover (New Avocado)
24	Hinge, Cover (Coffee)
24	1119787 Whirlpool Refrigerator Hinge Cover
25	Screw (Repair)
25	WP999367 Whirlpool Refrigerator Screw
26	Hinge (Top)
27	Stud Anchor
28	WPL 844614
29	Grille (White)
29	Grille (Coffee)
29	WPL 939232
29	Grille (Golden Harvest)
29	Grille (Ne
30	Hinge Bottom (L.H)
31	WPL 939988
32	WPL 836372
33	Tap Plate
34	Shim, Bottom Hinge
35	WP486579 Whirlpool Air Conditioner Screw
35	Screw (Repair)
36	Shim, Door Closer
37	WPW10329686 Whirlpool Door Cam Black
38	Hinge, Bottom
39	WP487576 Whirlpool Washer
40	Bumper, Grille
