EHD261SSWR1 03 – BREAKER TRIM AND LINER
Written by
in

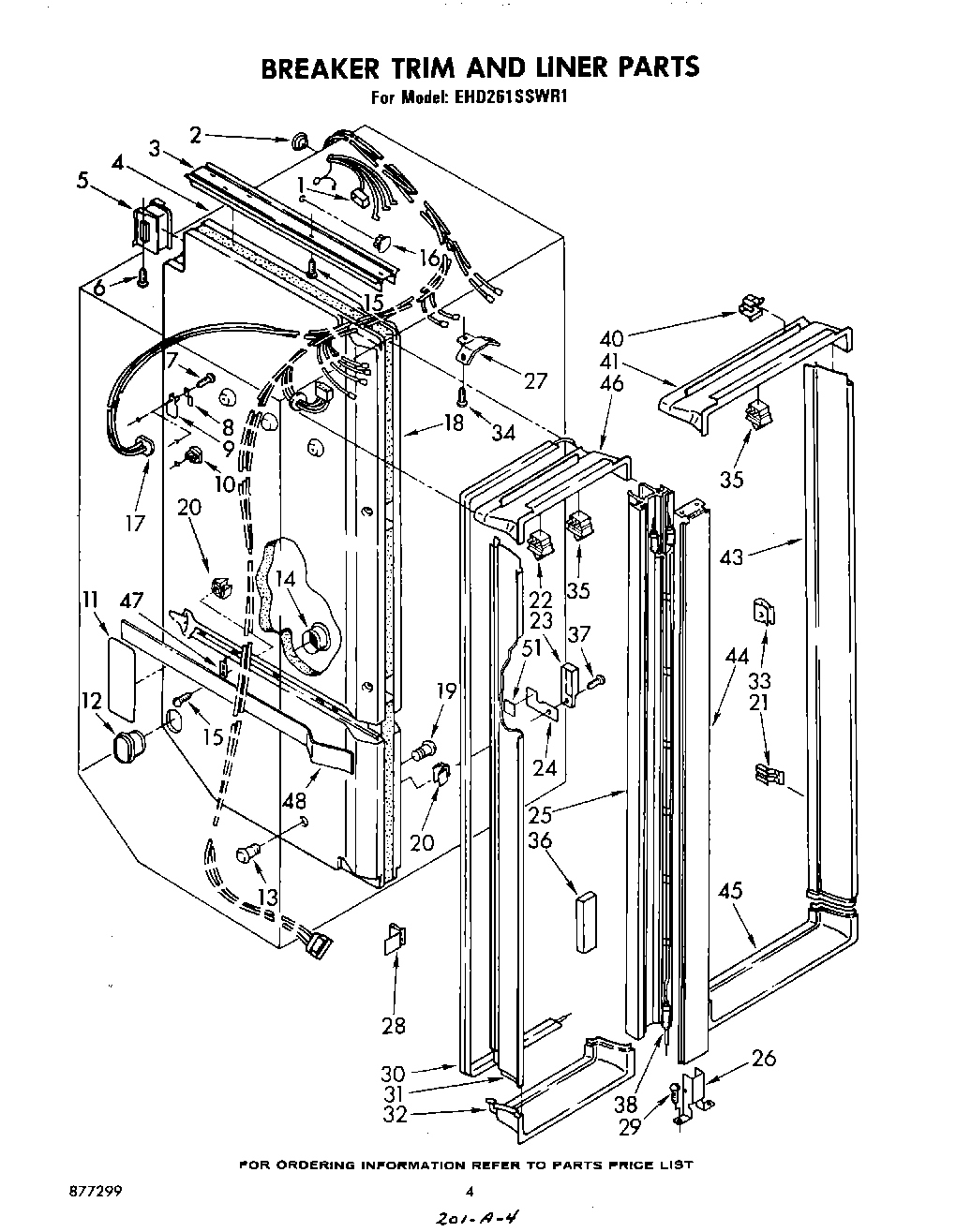

EHD261SSWR1 03 – BREAKER TRIM AND LINER
Products
Position
Product
1
Liner Wiring (Defrost Timer)
2
Grommet, Wiring
3
Track, Divider (Bottom)
3
Track, Divider (Back)
3
Track, Divider (Top)
4
Liner (Not A Serviceable Part)
5
Control Connector & Gasket Assembly
6
WP488163 Whirlpool Refrigerator Screw
7
SCREW
8
Support Clip
9
Screw Grommet
10
Grommet
11
Shield, Divider
12
Insert, Air Return
13
Retainer, Hole Insert
14
Retainer, Insert
15
W11624204 Whirlpool Screw
16
Hole, Plug
17
Wiring, Ice Maker
18
Divider, Mullion
19
Insert, Hole
20
Expansion Clip
21
Breaker Trim, Bottom Clip
22
WP4387911 Whirlpool Refrigerator Switch
23
Escutcheon, Meat Pan Control
24
Slide, Meat Pan Control
25
Break Mullion, Frame
26
Mullion, Bracket
27
Retainer Bracket, Divider
28
Stile Clip, Retainer
29
WP488729 Whirlpool Refrigerator Door Screw
29
WP308685 Whirlpool Microwave Screw
30
Heater, Stile
31
Breaker Trim, Freezer (L.S.)
32
Breaker Trim, Freezer (Bottom)
33
Breaker Trim, Clip
35
W11384469 Whirlpool Door Switch
36
WPL 941706
37
Screw, 8-15 x 1/2 (4)
38
Heater, Mullion
40
Breaker, Clip
41
Breaker Trim, Top Refrigerator
43
Breaker Trim, (R.S.) Refrigerator
44
Mullion, Front (New Avocado)
44
Mullion, Front (White)
44
Mullion, Front (Almond)
44
Mullion, Front (Golden Harvest)
44
Mullion, Front (Coffee)
45
Breaker Trim, Bottom Refrigerator
46
Breaker Trim, Top Freezer
47
Heat Exchanger, Clip
48
WPL 935634
51
Pad, Foam
←
