EHD261SSWR1 07 – REFRIGERATOR DOOR

EHD261SSWR1 07 – REFRIGERATOR DOOR

Written by

in

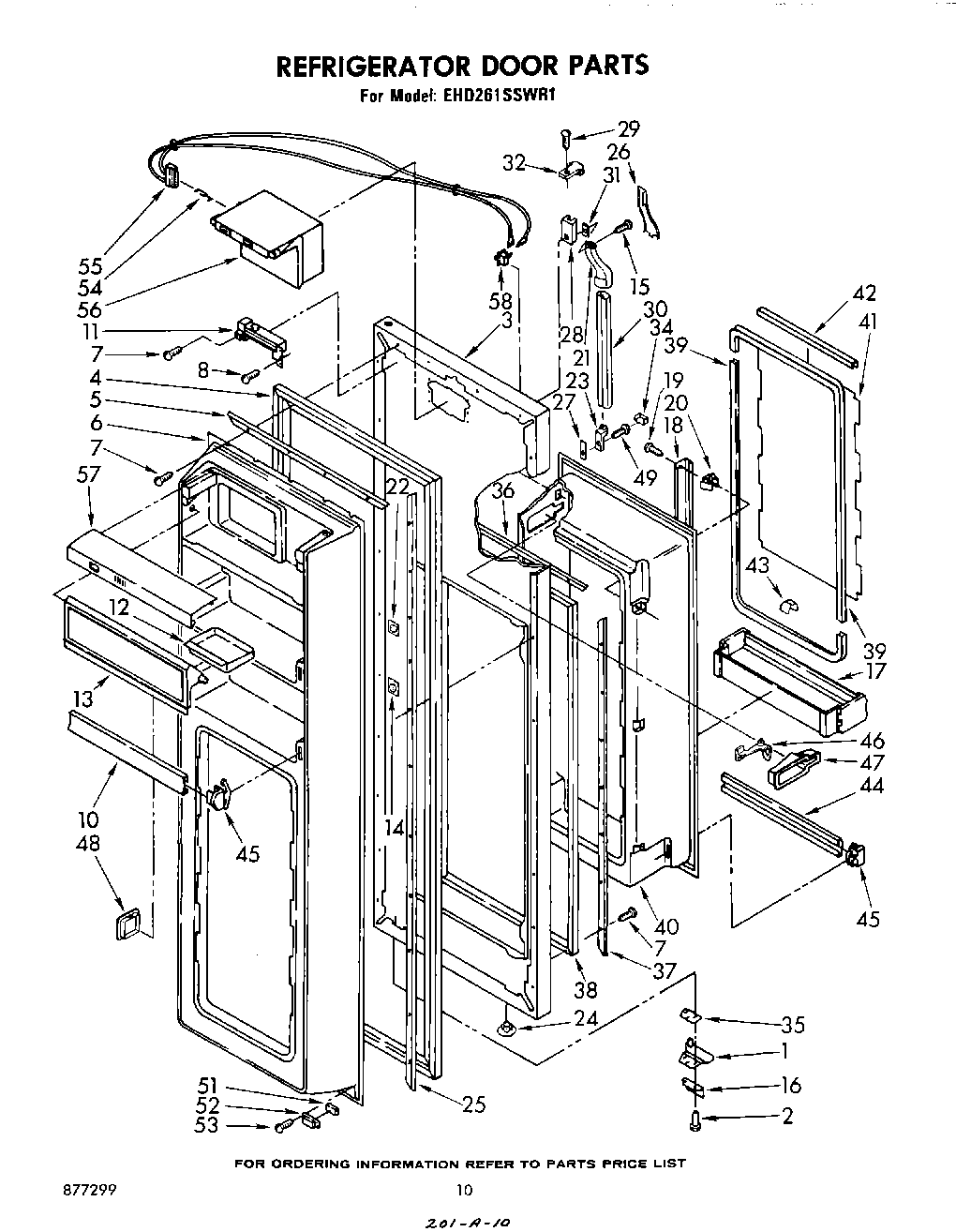

EHD261SSWR1 07 – REFRIGERATOR DOOR

Products

PositionProduct
350930 Whirlpool White Spray Paint
350942 Whirlpool Spray Paint
Golden Harvest
paint, spray 13 oz. (coffee)
Paint, Spray 13 Oz. (Avocado)
Leveler (Thinner)
285006 Whirlpool Spray
350956 Whirlpool Spray Assembly
1Hinge, Bottom
2WP250830 Whirlpool Refrigerator Screw
3Exterior Door Panel (Almond)
3Exterior Door Panel (Golden Harvest)
3Exterior Door Panel (White)
3Exterior Door Panel (New Avocado)
3Exterior Door Panel (Coffee)
4Door Gasket, Magnetic (For Platinum Model Only)
5Retainer, Top & Bottom
6Panel, Interior
7W11624204 Whirlpool Screw
7SCREW
8Screw, 8 x 3/8
10WPL 988746
11WPL 840847
13WPL 940084
14WP939101 Whirlpool Refrigerator Plate
16Bracket, Door Stop
17Shelf, Cantilever (3)
18Shelf Ladder
20Expansion Clip
21Center End Cap, Handle
22Screw Anchor (2)
23Handle End,
24Hole Plug (2)
25Retainer, Gasket Side
26Insert, Handle
27Shim, Handle
28Retainer Insert
29Screw
30Handle, Center (New Avocado)
30Handle, Center (White, Coffee & Almond)
30Handle, Center (Golden Harvest)
31Shim
32End Cap
34Cover, End Cap
35Shim, Bottom Hinge
36Reinforcement Strip, Top & Bottom (2)
37Reinforcement Strip, Side
38Gasket, Seal
39WPL 986453
40Panel, Interior Storage
41Panel, Decorative
42Trim, Decorative
43Cap Trim Joint
44WPL 986448
45WP839904 Whirlpool Refrigerator Endcap Trim
46WPL 935111
47WPL 935109
48WPL 935112
49WP488729 Whirlpool Refrigerator Door Screw
51Magnet
52Magnet Cover (For Platinum Model Only)
53Screw
54Key, Lock Plug
55Connector, Edge
56WPL ARI39366A9
57Escutcheon, Swit
58WPL 939176
5872017 Whirlpool Appliance Touch-Up Paint White
58876370 Whirlpool Refrigerator Insulation
58833938 Whirlpool Refrigerator Terminal
58606755 Whirlpool Refrigerator Bag
58511873 Whirlpool Refrigerator Paint
58212643 Whirlpool Refrigerator Permagum Sealer
58Golden Harvest (Uncut)
5872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
58Almond (Uncut)
58799344 Whirlpool Refrigerator Paint
58WPL 941137
58WPL 940760
58WPL 877299
58WP72107 Whirlpool Touchup
58WP503695 Whirlpool Refrigerator Sealer
58Label System, Sentinel Cover
58WPL 799351
58Enamel, New Avocado (1 Qt. Uncut)
58Enamel, Coffee (1 Qt. Uncut)
58Paint, Touch-Up 1/2 Oz. (Coffee)
5872109 Whirlpool Dacor Avocado Touch-Up Paint
5872032 Whirlpool Touch Up Paint Black
58WPL 876029
58WPL 799833
58WPL 799832
58Enamel, Black (1 Qt. Uncut)
58CEMENT, ALUMILASTIC (1 1/4 OZ.)
58TAPE, VINYL (3/4 X 108“)
58WP542638 Whirlpool Refrigerator Grease
58WP505587 Whirlpool Refrigerator Sealer
58WPL 940100
