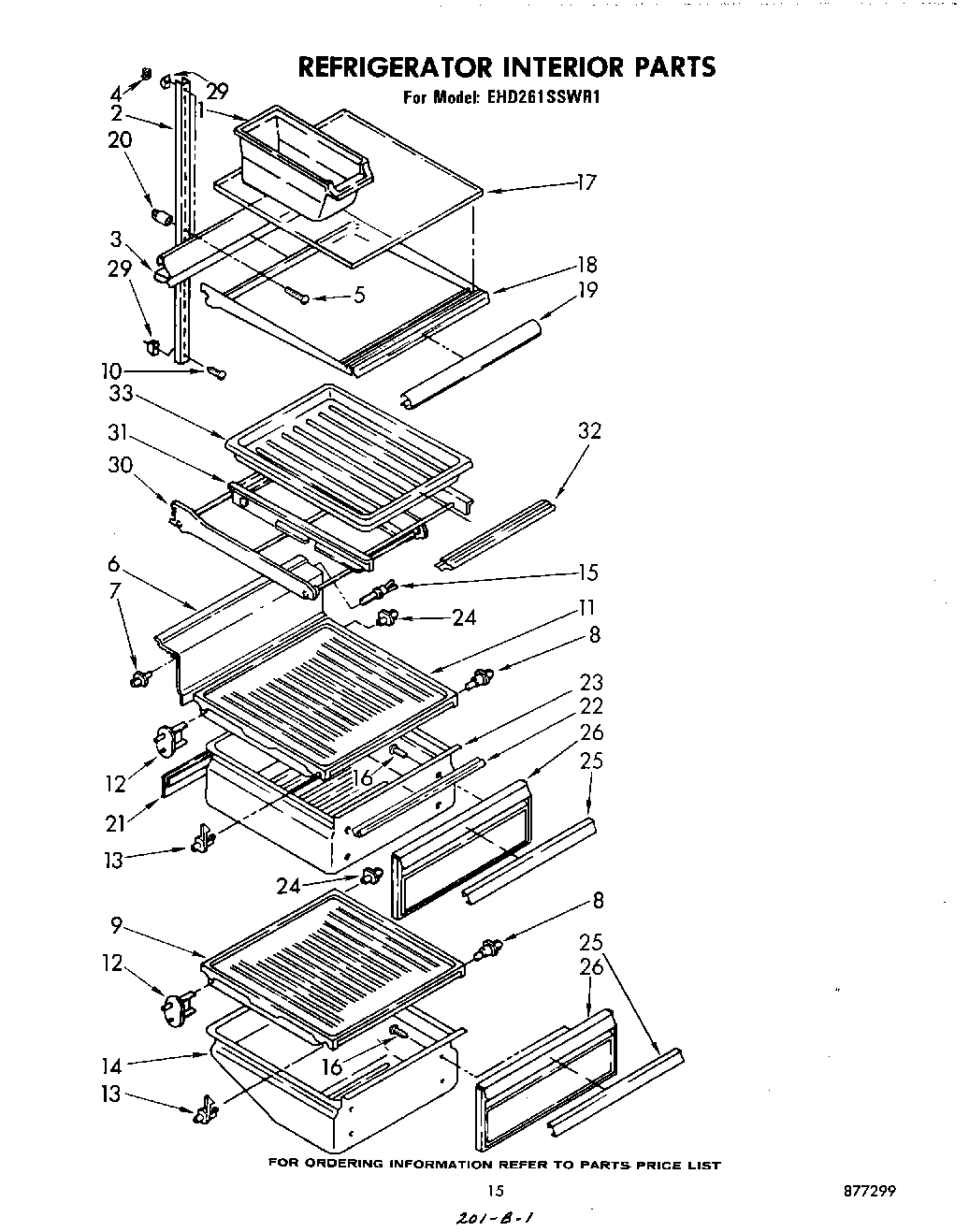

EHD261SSWR1 10 – REFRIGERATOR INTERIOR , LIT/OPTIONAL

EHD261SSWR1 10 – REFRIGERATOR INTERIOR , LIT/OPTIONAL

Written by

in

EHD261SSWR1 10 – REFRIGERATOR INTERIOR , LIT/OPTIONAL

Products

PositionProduct
1WP982704 Whirlpool Refrigerator Container
2Shelf Ladder (2)
3Reflector, Cantilever
4Screw, Anchor (3)
5Screw, 8 x 1-1/4 (3)
6Light Lens, Lower
7Stud, Shelf
8Shelf, Stud
9Pan Slide & Cover
10Screw (Repair)
10Screw, 8-32 x 1-1/4
11Pan Slide & Cover (Crisper)
12Stud, Shelf
13Shelf, Stud
14Pan (Meat)
15Stud, Shelf (2)
16Screw (Repair)
16WP488729 Whirlpool Refrigerator Door Screw
17Glass, Cantilever Shelf
18Shelf, Cantilever
20Screw, Grommet
21Crisper Gasket Rear
22Crisper Gasket Front
23Pan, Crisper
24Stud
25Overlay, Front Cover
26Front, Pan (Crisper)
26Front, Pan (Meats)
29520965 Whirlpool Refrigerator Support
30Frame, Cantilever Shelf
31Rollout Shelf, Cantilever
32Shelf Trim, Cantilever
33Bin, Rollout Plastic
