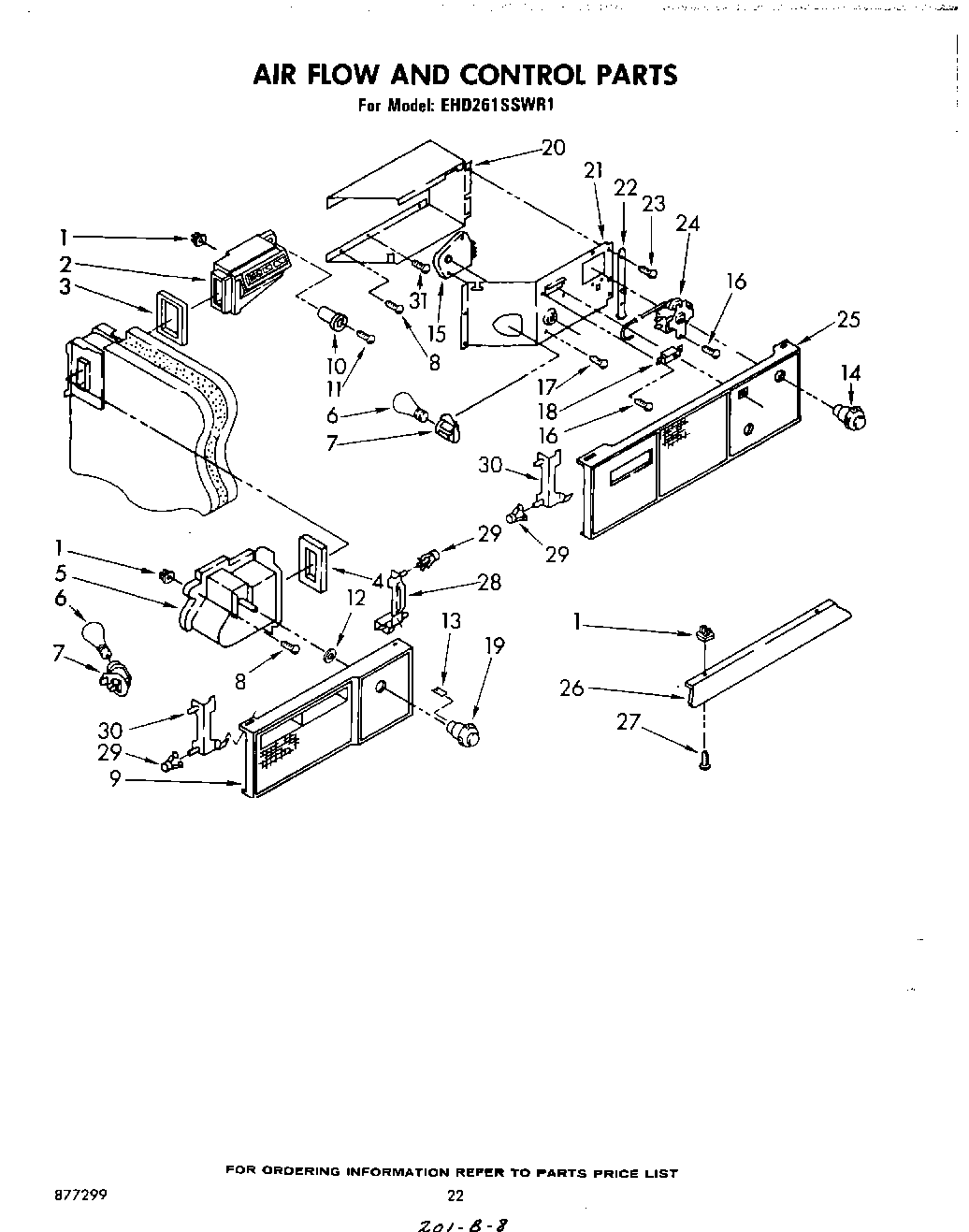

EHD261SSWR1 14 – AIR FLOW AND CONTROL

Products

PositionProduct
1Grommet
2Air Diffuser
3Gasket, Air Diffuser
4Gasket, Air Scoop
5Air Scoop Assembly
6RANGE ONLY 40W 120V APPL BULB
74387478 Whirlpool Refrigerator Light Socket
9Light Lens, Freezer
10836667 Whirlpool Refrigerator Spacer
11Screw, 8 x 1-1/4 (3)
12Retainer, Damper
13Knob, Retainer
14Knob, Temperature Control
15Defrost Timer, 8 Hour
15Timer, Defrost (8 Hour- Alternate)
16WP489128 Whirlpool Refrigerator Screw
17WP3388228 Whirlpool Screw
18WPL 984640
19Control Knob
20Box, Control
21Control Box, Front
22Support, Light Lens
23W11624204 Whirlpool Screw
24WP819470 Whirlpool Refrigerator Thermostat
25Light Lens, R.C.
26Baffle, Liner Top
27WP489069 Whirlpool Compactor Screw
28Support, Light Lens (R.S.)
29Clip, Tubular
30Support, Light Lens (L.S.)
31Screw, 8-32 x 3/8
