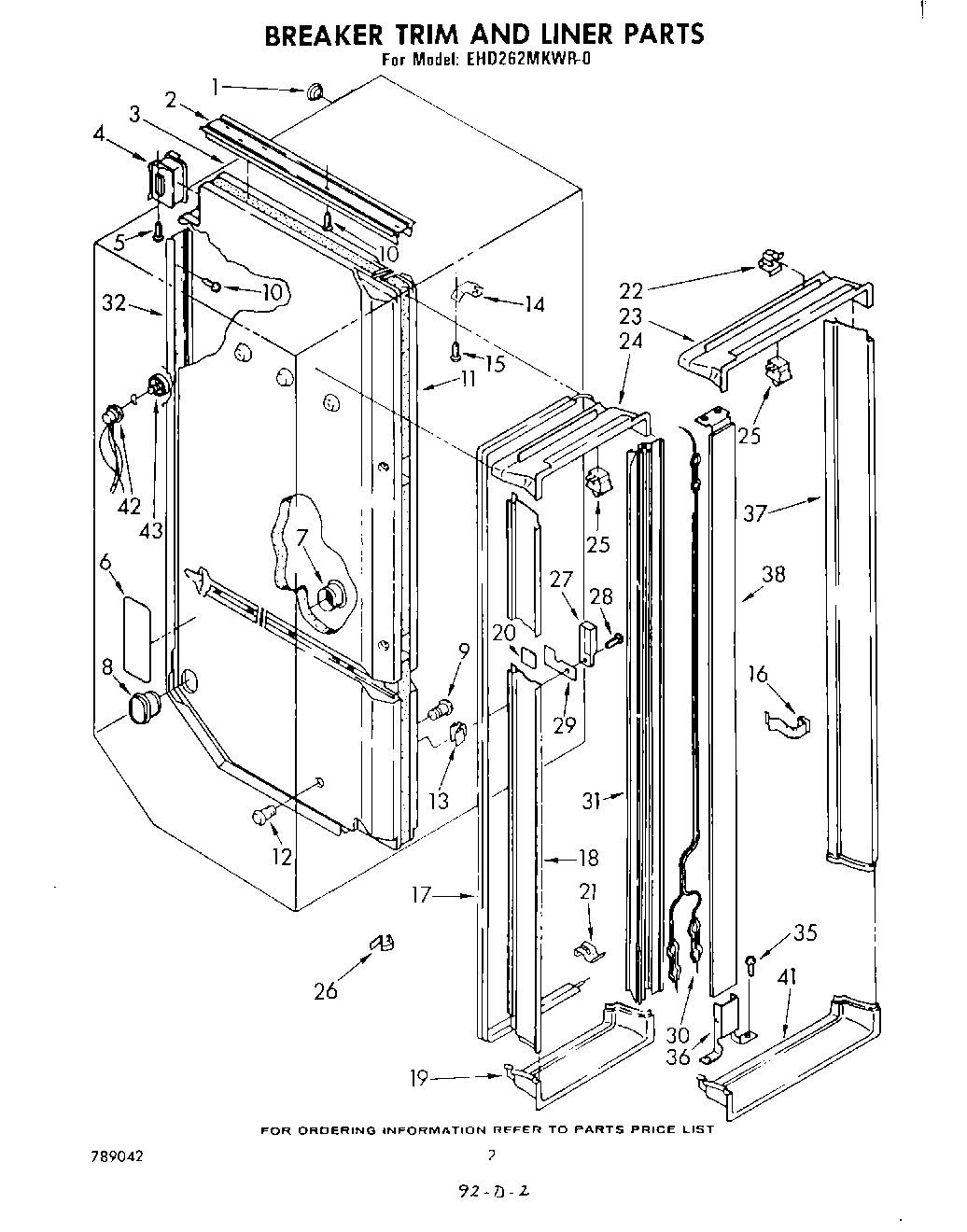

EHD262MKWR0 02 – BREAKER TRIM AND LINER

Products

Position	Product
1	Grommet, Wiring
2	Track, Divider (Top)
3	Liner (Not A Serviceable Part)
4	Control Connector & Gasket Assembly
5	WP488163 Whirlpool Refrigerator Screw
6	Shield, Divider
7	Retainer, Insert
8	Insert, Air Return
9	Insert, Hole
10	W11624204 Whirlpool Screw
11	Divider, Mullion
12	Retainer, Hole Insert
13	Expansion Clip
14	Retainer Bracket, Divider
15	SCREW
16	Breaker, Trim Clip
17	Heater, Stile
18	Breaker Trim, Freezer (L.S.)
19	Breaker Trim, Freezer (Bottom)
20	Pad, Foam
21	Breaker Trim, Bottom Clip
22	Breaker, Clip
23	Breaker, Trim Top Refrigerator
24	Trim, Freezer Breaker (Top)
25	W11384469 Whirlpool Door Switch
26	Stile Clip, Retainer
27	Escutcheon, Meat Pan Control
28	Screw, 8-15 x 1/2 (4)
29	Slide, Meat Pan Control
30	Heater, Mullion
31	Break Mullion, Frame
32	Track, Divider (Back & Bottom)
35	WP308685 Whirlpool Microwave Screw
35	WP488729 Whirlpool Refrigerator Door Screw
36	Mullion, Bracket
37	Breaker Trim, (R.S.) Refrigerator
38	Mullion, Front (Almond)
38	Mullion, Front (Golden Harvest)
38	Mullion, Front (White)
38	Mullion, Front (Coffee)
38	Mullion, Front (New Avocado)
41	Breaker Trim, Bottom Refrigerator
42	Wiring, Ice Maker
43	Receptacle Cap
