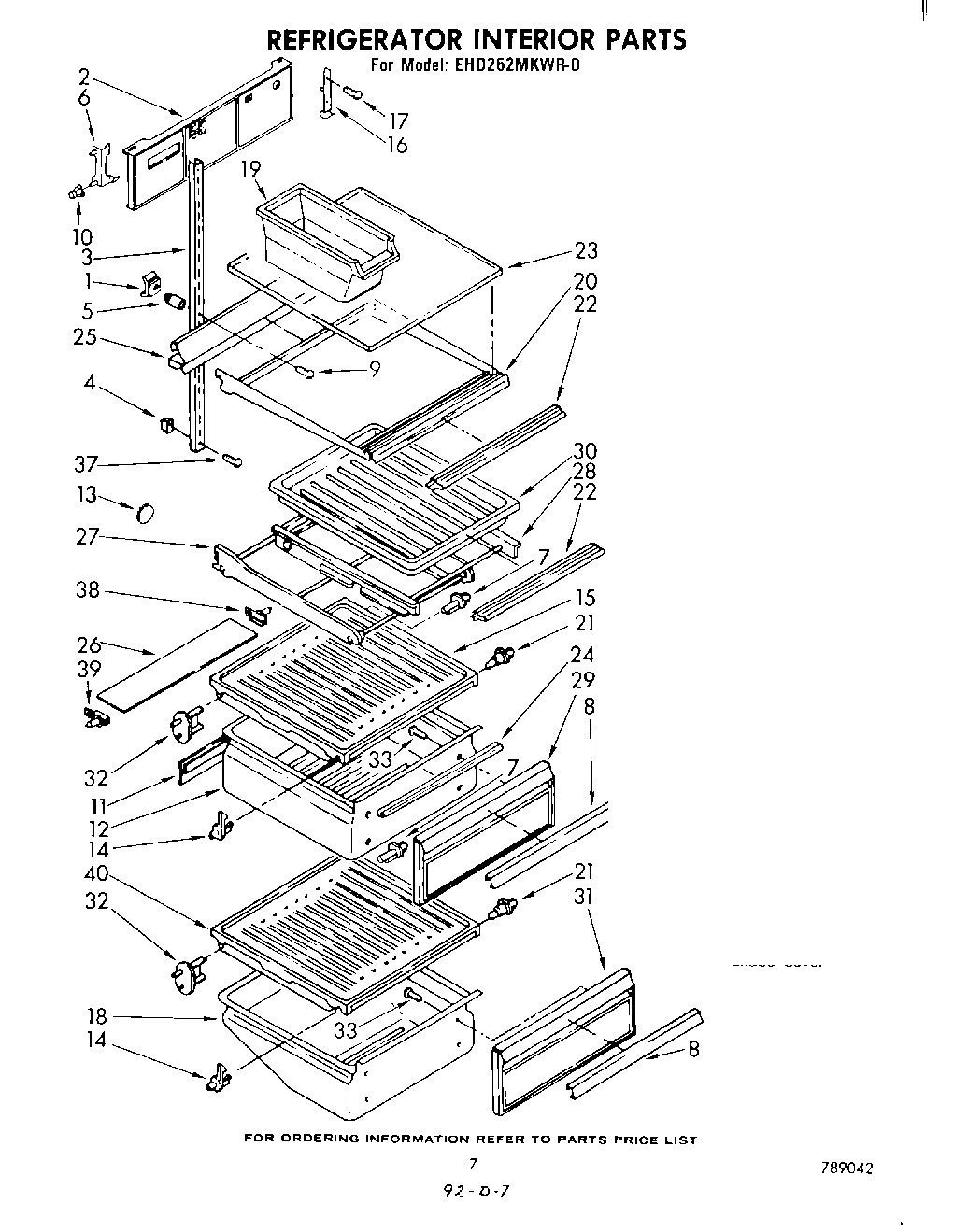

EHD262MKWR0 05 – REFRIGERATOR INTERIOR

Products

Position	Product
1	Screw, Anchor (3)
2	Light Lens
3	Shelf Ladder (2)
4	520965 Whirlpool Refrigerator Support
5	Screw, Grommet
6	Support, Light Lens (L.S.)
7	Stud
8	Overlay, Front Cover
9	Screw, 8 x 1-1/4 (3)
10	Clip, Tubular
11	Crisper Gasket Rear
12	Pan, Crisper
13	Hole, Plug
14	Shelf, Stud
15	Pan Slide & Cover (Crisper)
16	Support, Light Lens
17	W11624204 Whirlpool Screw
18	Pan (Meat)
19	WP982704 Whirlpool Refrigerator Container
20	Shelf, Cantilever
21	Shelf, Stud
22	Shelf Trim, Cantilever
23	Glass, Cantilever Shelf
24	Crisper Gasket Front
25	Reflector, Cantilever
26	Light Lens, Crisper
27	Frame, Cantilever Shelf
28	Rollout Shelf, Cantilever
29	Front, Pan (Crisper)
30	Bin, Rollout Plastic
31	Front, Pan (Meats)
32	Stud, Shelf
33	WP488729 Whirlpool Refrigerator Door Screw
33	Screw (Repair)
37	Screw (Repair)
37	Screw, 8-32 x 1-1/4
38	Stud, Light Lens (R.S.)
39	Stud Light Lens (L.S.)
40	Pan Slide & Cover
