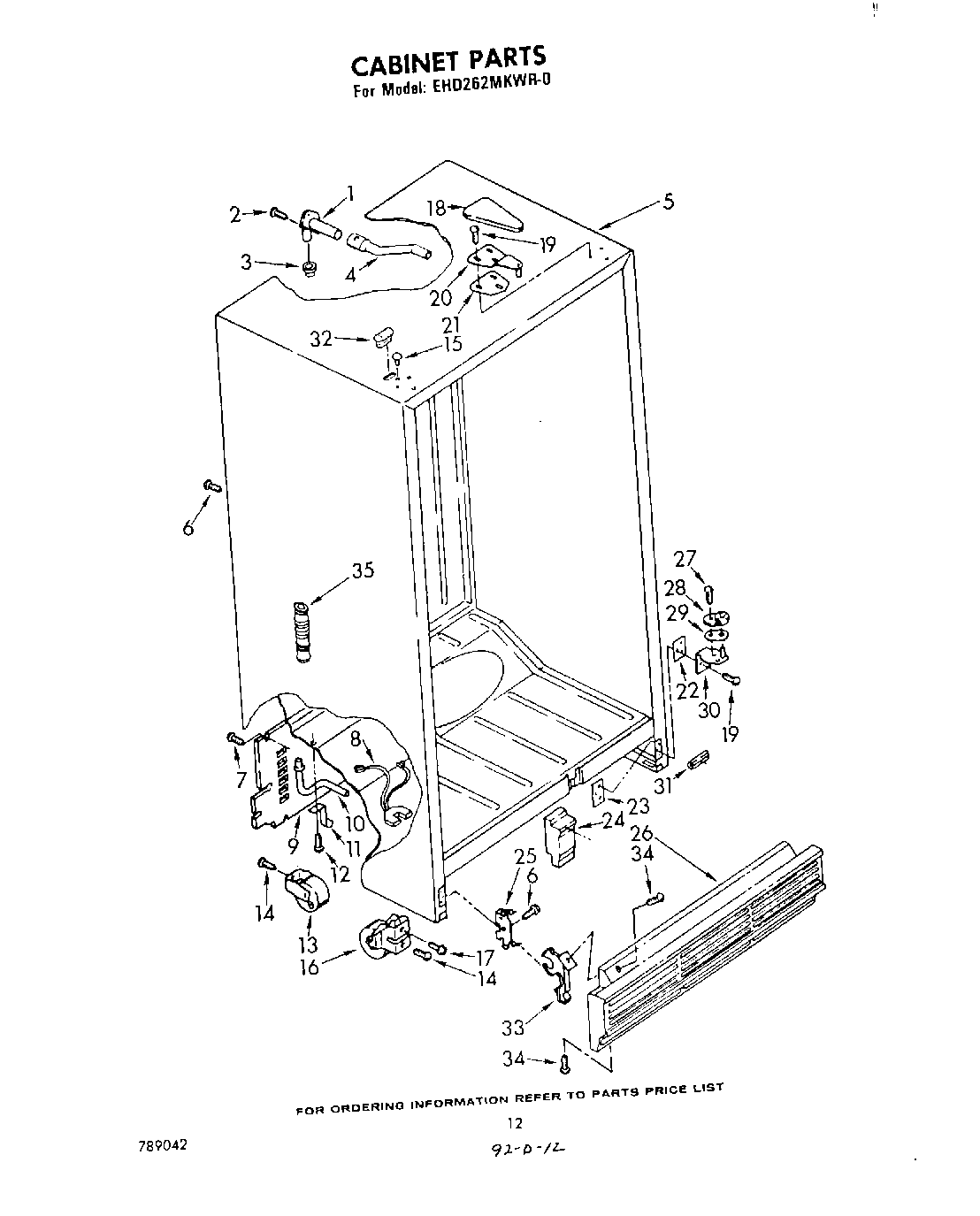

EHD262MKWR0 08 – CABINET

Products

Position	Product
1	WP2196157 Whirlpool Fill Tube
2	WP98165 Whirlpool Screw
3	WP487996 Whirlpool Refrigerator Cap Tube
4	Tube, Water Inlet
5	Cabinet (Not A Serviceable Part)
6	W11624204 Whirlpool Screw
8	WPL 548734
9	WPL 851174
10	Extension, Drain Fitting
11	Cup, Drain Extension
12	Screw, 8-15 x 3/8
13	WPW10250570 Whirlpool Refrigerator Cabinet Roller
14	Screw, 1/4-28 x 1/2 (2)
15	Hole Plug (New Avocado)
15	Hole, Plug (Golden Harvest)
15	Hole, Plug (White)
15	Hole Plug (Coffee)
15	Hole Plug (Almond)
16	Roller, Front
17	Screw, 5/16-24 x 1
18	1119787 Whirlpool Refrigerator Hinge Cover
18	Hinge Cover (Golden Harvest)
18	Hinge Cover (New Avocado)
18	Hinge, Cover (Coffee)
19	WP999367 Whirlpool Refrigerator Screw
19	Screw (Repair)
20	Hinge, Top
21	Shim, Hinge Top
22	Shim, Bottom Hinge
23	Tap Plate
24	WPL 836372
25	WPL 989068
26	Grille, Exterior (White)
26	Grille, Exterior (Coffee)
26	Grille, Exterior (Almond)
26	Grille, Exterior (Golden Harvest)
26	Grille, Exterior (New Avocado)
27	WP486579 Whirlpool Air Conditioner Screw
27	Screw (Repair)
28	WPW10329686 Whirlpool Door Cam Black
29	Shim, Door Closer
30	Hinge Bottom (L.H)
30	Hinge Bottom (R.H)
31	Bumper, Grille
32	Hole Plug (Coffee)
32	Hole Plug (White)
32	Hole Plug (Almond)
32	Hole Plug (New Avocado)
32	Hole Plug (Golden Harvest)
33	WP944224 Whirlpool Refrigerator Support
34	WPL 489085
35	Drain Fitting, Liner
