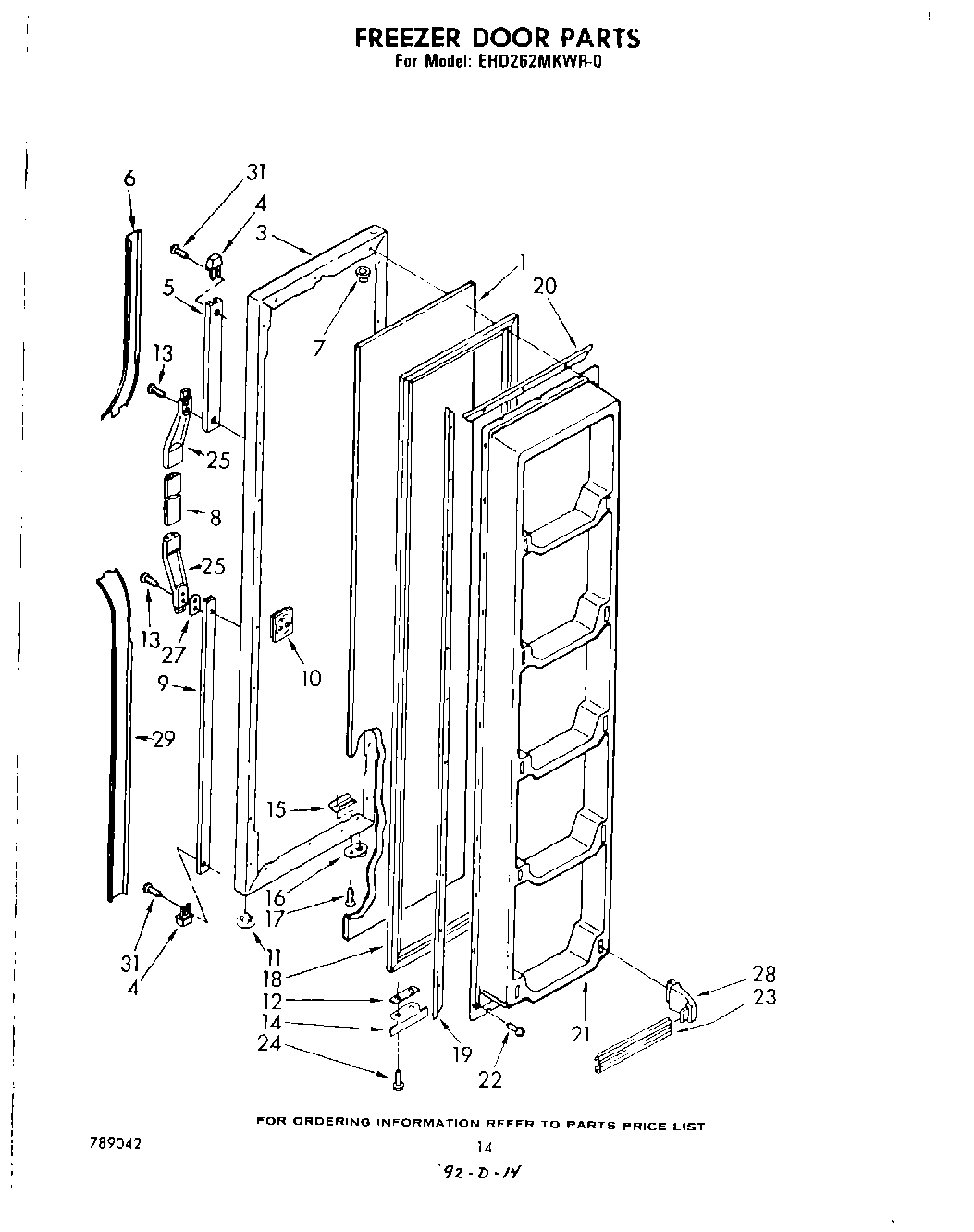

EHD262MKWR0 09 – FREEZER DOORadmin2025-04-26T09:48:51+00:00EHD262MKWR0 09 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | WPL 876029 |
| 3 | Freezer, Door Panel (Also Order Item 28) (White) |
| 3 | Freezer, Door Panel (Also Order Item 28) (Coffee) |
| 3 | Freezer, Door Panel (Also Order Item 28) (Golden Harvest) |
| 3 | Freezer, Door Panel (Also Order Item 28) (New Avocado) |
| 3 | Freezer, Door Panel (Also Order Item 28) (Almond) |
| 4 | End Cap |
| 5 | Retainer Insert (Top) |
| 6 | Insert, Handle |
| 7 | Cap, Hinge Sleeve (2) |
| 8 | Handle, Center (Golden Harvest) |
| 8 | Handle, Center (New Avocado) |
| 8 | Handle, Center (White, Coffee, & Almond) |
| 9 | Retainer Insert (Bottom) |
| 10 | Screw Anchor (2) |
| 11 | Hole Plug (2) |
| 12 | Shim |
| 13 | WP488729 Whirlpool Refrigerator Door Screw |
| 14 | Bracket, Door Stop |
| 15 | Tap Plate |
| 16 | 4318165 Whirlpool Refrigerator Door Closure Cam Kit |
| 17 | WP489069 Whirlpool Compactor Screw |
| 18 | Door Gasket, Magnetic |
| 19 | Retainer, Gasket Side |
| 20 | Retainer, Gasket Top & Bottom |
| 21 | Panel, Interior |
| 22 | SCREW |
| 23 | T |
| 24 | Screw, 89 x 5/8 |
| 25 | Center End Cap, Handle |
| 27 | Shim |
| 28 | WP849996 Whirlpool Refrigerator Endcap Trim |
| 29 | Insert, Handle |
| 31 | Screw |
