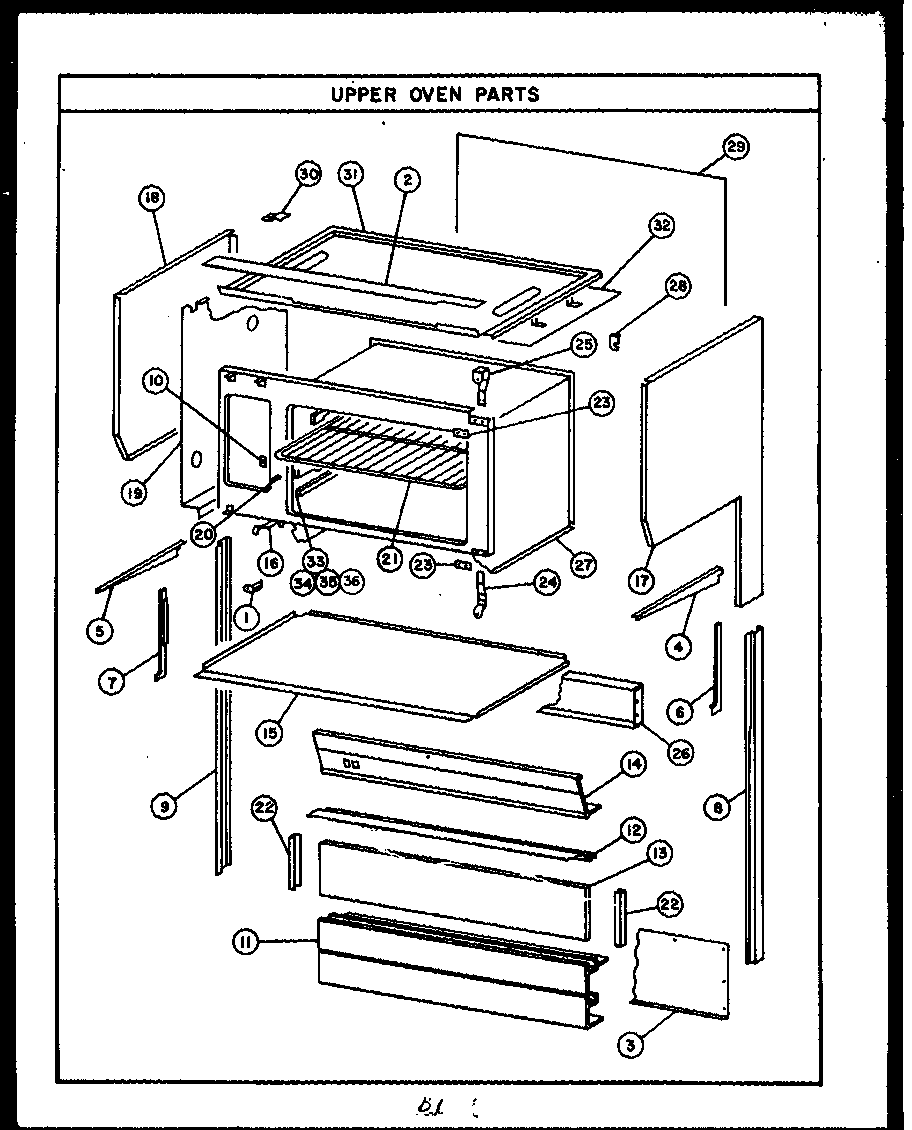

EHD340 05 – UPPER OVEN PARTS

Products

Position	Product
NI	MAY Y71556
	ORDER GRAPHICS PANEL FROM THE SOURCE WHERE THE DRYER WAS PURCHASED. INCLUDE THECOMPLETE MODEL AND SERIAL NUMBERS WITH ORDER.
NI	MAY Y79740
1	MAY Y0099913
2	MAY 73061
3	MAY Y63359
4	MAY Y71972
5	MAY Y71973
6	MAY Y0091477
7	MAY Y0091478
8	MAY 71096
9	MAY 71095
10	MAY Y75826
11	MAY Y71553
12	MAY Y71971
13	MAY Y71554
14	MAY Y62975
15	MAY 71317-3
16	MAY 71092
17	MAY 71087W
17	MAY 71087V
17	MAY 71087C
17	MAY 71087L
17	MAY 71087H
18	MAY 71086V
18	MAY 71086H
18	MAY 71086L
18	MAY 71086W
18	MAY 71086C
19	MAY Y0094391
20	MAY Y78034
21	MAY 78001
22	MAY Y71954
23	MAY 0093625
24	MAY Y0094356
25	MAY Y0094357
26	MAY 71064
27	SEE NOTE GROUND WIRE, GREEN
28	MAY 73057
29	MAY 71097
30	MAY 73060
31	MAY 74091
32	MAY 78701
33	MAY 71146-3
34	MAY 71147-3
35	MAY 78172-3
36	MAY 78002
