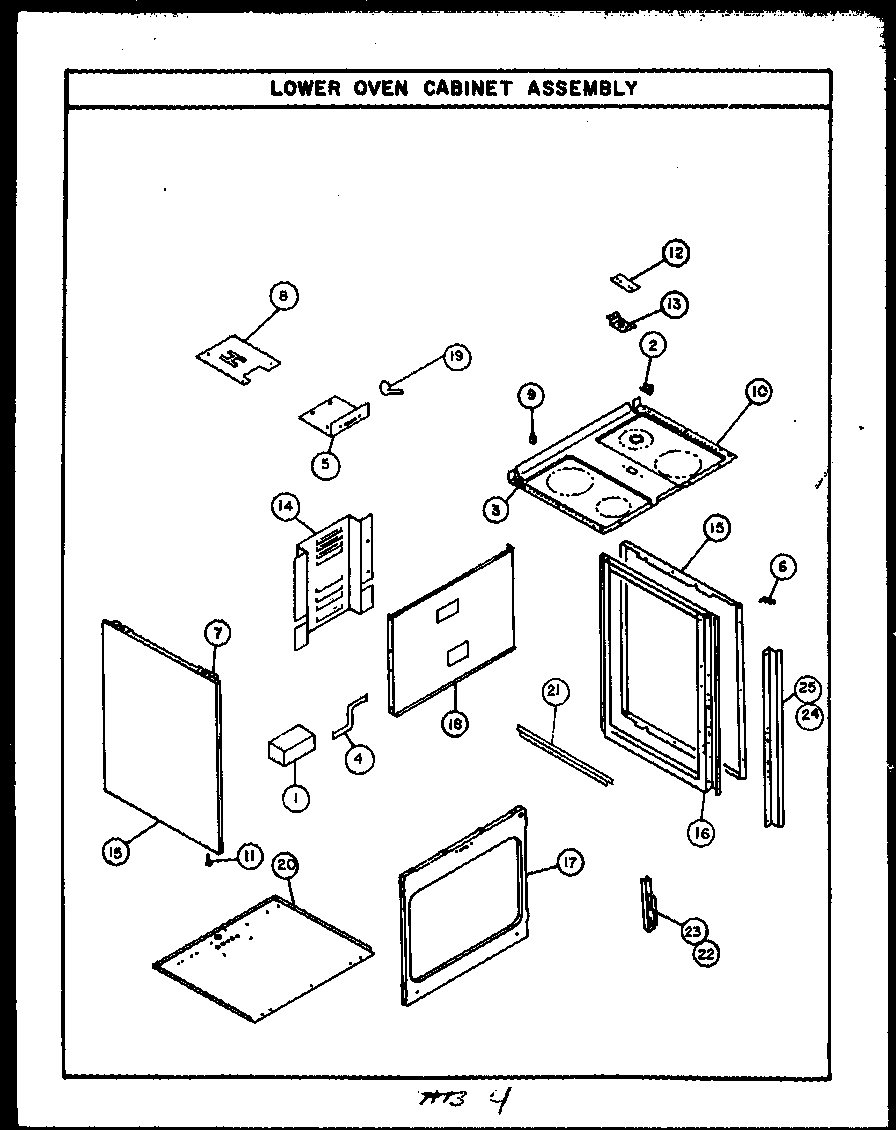

EHD342 02 – LOWER OVEN CABINETASSY

Products

Position	Product
	ORDER GRAPHICS PANEL FROM THE SOURCE WHERE THE DRYER WAS PURCHASED. INCLUDE THECOMPLETE MODEL AND SERIAL NUMBERS WITH ORDER.
2	MAY Y0091519
3	MAY Y0091520
6	MAY 0091473
7	MAY 0091474
9	MAY Y0091587
10	MAY 67871
11	MAY 76205
12	MAY Y67879
14	MAY Y63689
15	MAY 63260W
15	MAY 63260H
15	MAY 63260C
15	MAY 63260L
15	MAY 63260A
17	SEE NOTE GROUND WIRE, GREEN
18	MAY 62950
19	MAY 68513
20	MAY 91309
22	MAY Y66954
23	MAY Y66953
24	MAY Y61812
25	MAY 61811
