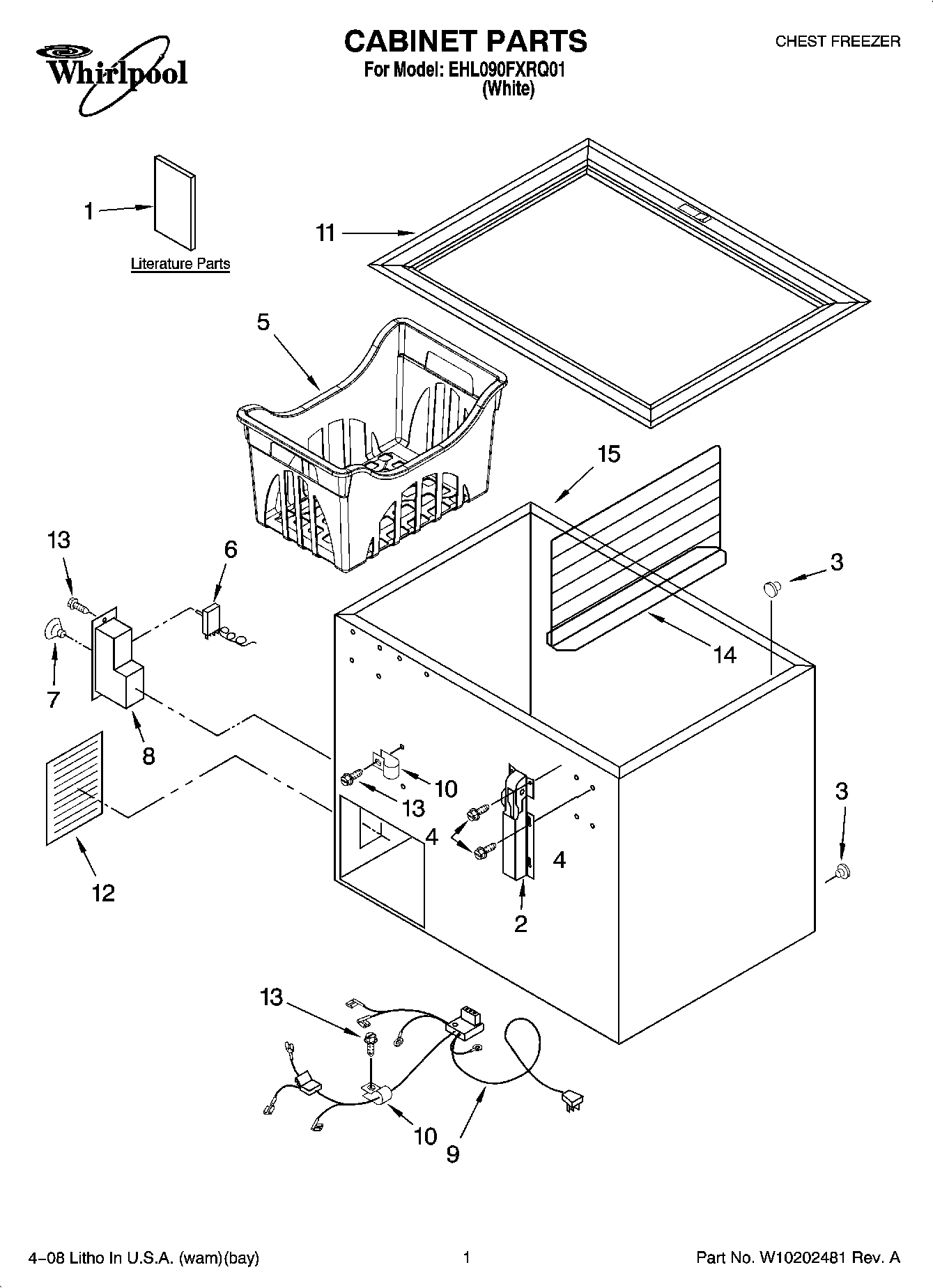

EHL090FXRQ01 01 – CABINET PARTS

Products

Position	Product
1	Energy Guide/Tag
1	Owners Manual
2	Hinge Assembly (With Spring)
2	Hinge Assembly (Without Spring)
3	Drain, Cap
4	4356491 Whirlpool Refrigerator Screw
5	Basket (2)
6	WP4-35940-001 Whirlpool Refrigerator Thermostat
7	Thermostat, Knob
8	W10682894 Whirlpool Refrigerator Control Box
9	4-35130-004 Whirlpool Refrigerator Harness
10	488946 Whirlpool Air Conditioner Clamp
11	Breaker Trim
12	Access Panel
13	3-24004-049 Whirlpool Screw
14	Divider (Optional)
15	Cabinet, (Not A Serviceable Part)
