EHL090FXRQ01 03 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
Rivet Kit (60)
Parts Not Illustrated and Optional Parts (Not Included)
Customer Touch-Up Material

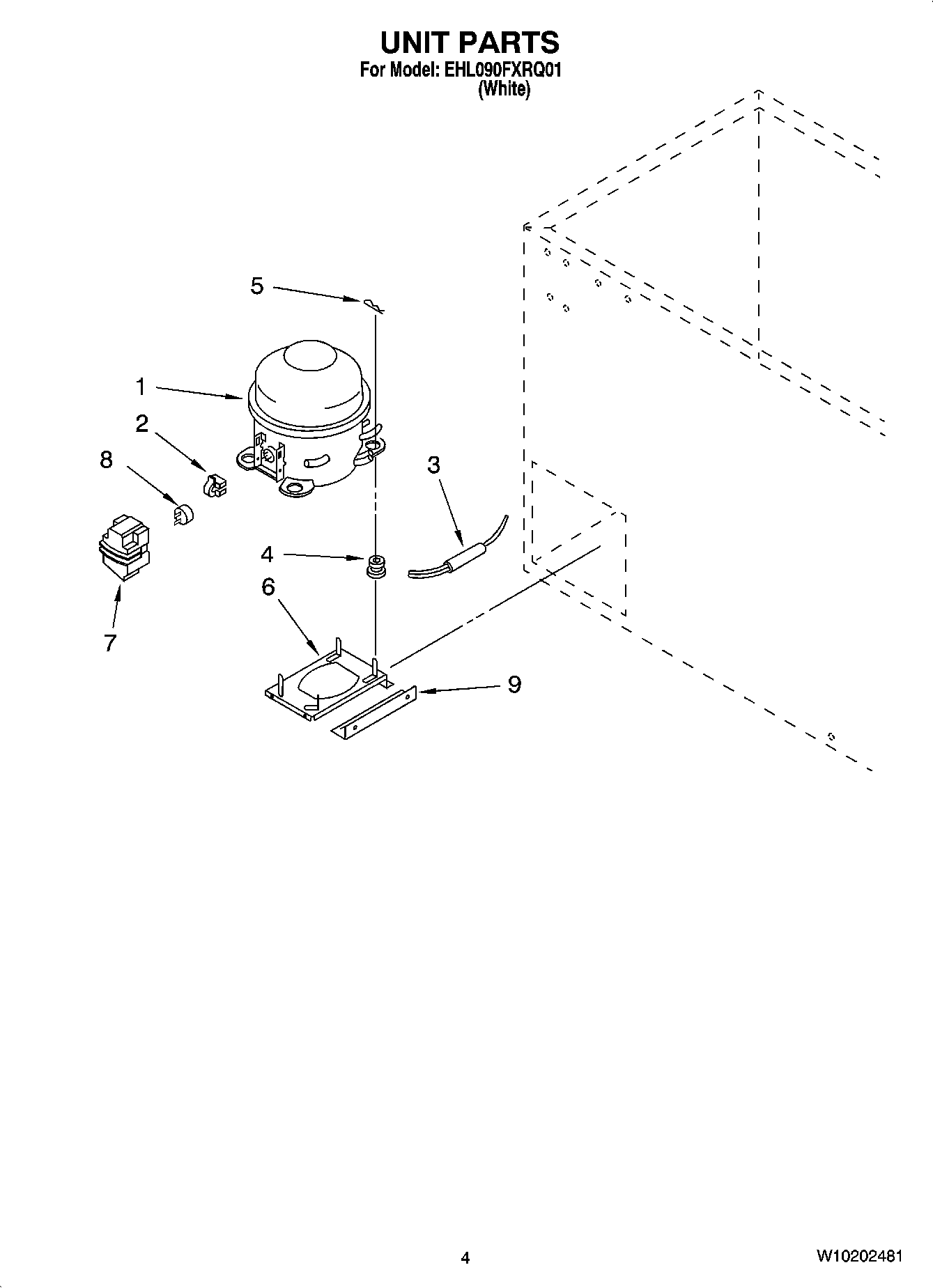

1Compressor (Includes Items 2, 3, 4, 5, 8 & 9)
24356716 Whirlpool Refrigerator Start Relay
3W10843121 Whirlpool Refrigerator Tube
4Grommet, Mounting Compressor
5Clip, Hitch Pin
6Base, Compressor
7WP2162358 Whirlpool Refrigerator Terminal Cover
82264602 Whirlpool Refrigerator Overload
93-81556-001 Whirlpool Brace
9REFRIGERANT CHARGE 4.5 oz. (R-134A)
