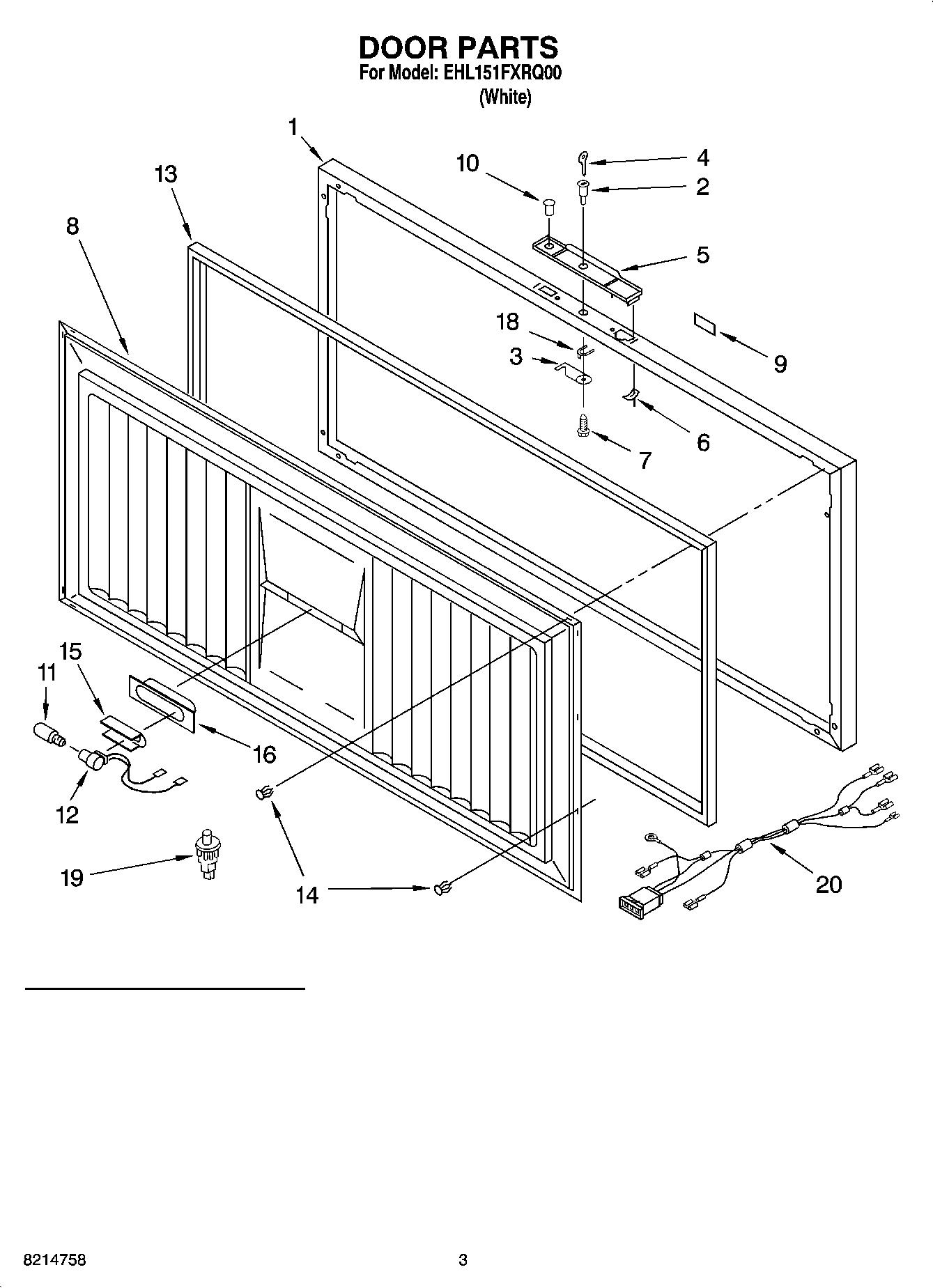

EHL151FXRQ00 02 – DOOR PARTS

Products

Position	Product
1	WP4390902 Whirlpool Refrigerator External Panel
2	3-35284-001 Whirlpool Refrigerator Door Lock
3	2-35195-002 Whirlpool Refrigerator Hook
4	Key
5	Handle
6	3-24059-024 Whirlpool Refrigerator Handle Clip
7	SCREW
8	Interior Door Panel
9	Nameplate
10	Light, Indicator
11	W10873798 Whirlpool Refrigerator Light Bulb
12	Socket, Light
13	Gasket
14	Clip, Gasket (Kit Of 60)
15	Shield, Heat
16	3-25693-001 Whirlpool Refrigerator Defrost Light
18	Clip
19	W10917237 Whirlpool Refrigerator Switch
20	Harness, Wiring (Lid)
