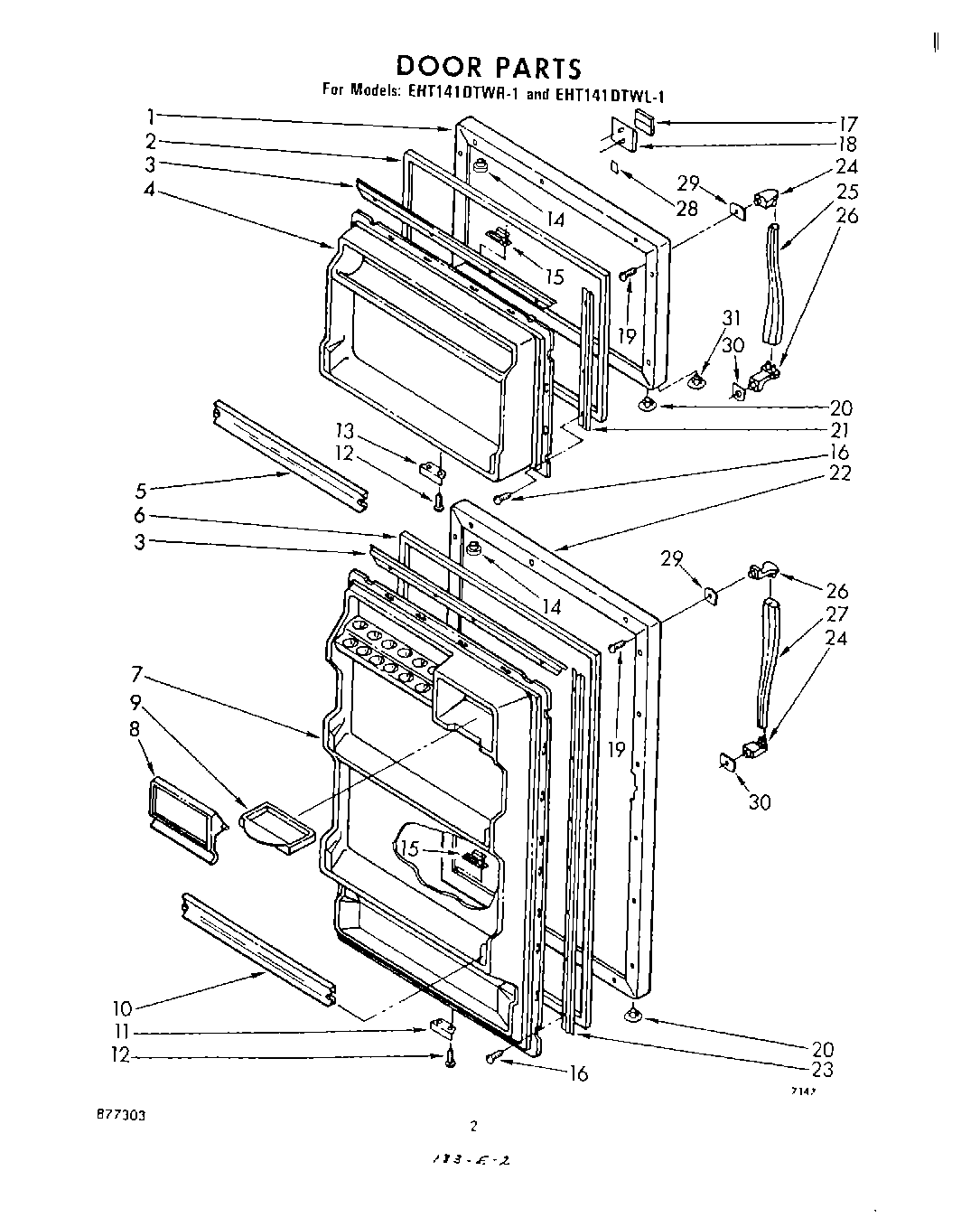

EHT141DTWR1 02 – DOOR , LIT/OPTIONAL

EHT141DTWR1 02 – DOOR , LIT/OPTIONAL

Written by

in

EHT141DTWR1 02 – DOOR , LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Paint, Spray 13 Oz. (Avocado)
	285006 Whirlpool Spray
	paint, spray 13 oz. (coffee)
	WPL 511881
	350942 Whirlpool Spray Paint
	Golden Harvest
	Leveler (Thinner)
	350956 Whirlpool Spray Assembly
1	Freezer Door Panel (R.H. Swing) (Coffee)
1	Freezer Door Panel (R.H. Swing) (Almond (L.H. Swing))
1	Freezer Door Panel (R.H. Swing) (White)
1	Freezer Door Panel (R.H. Swing) (Almond)
1	Freezer Door Panel (R.H. Swing) (Golden Harvest)
1	Freezer Door Panel (R.H. Swing) (New Avocado)
1	Freezer Door Panel (R.H. Swing) (Coffee)
1	Freezer Door Panel (R.H. Swing) (New Avocado)
1	Freezer Door Panel (R.H. Swing) (White)
1	Freezer Door Panel (R.H. Swing) (Golden Harvest)
2	GASKET-DOR
3	Gasket Retainer, Top & Bottom (2)
4	Interior Door Panel (Freezer)
5	Trim, Door Shelf
6	2188445A Whirlpool Refrigerator Door Gasket Seal
7	Interior Door Panel (Refrigerator)
8	Butter Door
10	Trim, Door Shelf (2)
11	Bracket, Door Stop
12	WP488921 Whirlpool Refrigerator Screw
12	Screw (Repair)
13	Bracket, Door Stop
14	Cap, Hinge Sleeve (2)
15	Tap Plate
16	W11624204 Whirlpool Screw
16	SCREW
17	Insert, Nameplate
18	WPL 849310
19	Screw (2)
20	Hole Plug (2) (New Avocado)
20	Hole Plug (2) (Almond)
20	Hole Plug (2) (Coffee)
20	Hole Plug (2) (Golden Harvest)
20	Hole Plug (2)
21	Gasket Retainer, Side (2)
22	WPL 940065
22	WPL 940064
22	Refrigerator Door Panel (R.H. S
22	WPL 940063
22	WPL 940056
22	WPL 940062
22	WPL 940060
22	WPL 940057
22	WPL 940058
22	WPL 940059
23	WPL 935760
24	WPL 982948
25	WPL 982942
26	WPL 982947
27	WPL 982978
28	WPL 991257
29	WPL 941917
30	WPL 941918
31	876370 Whirlpool Refrigerator Insulation
31	833938 Whirlpool Refrigerator Terminal
31	606755 Whirlpool Refrigerator Bag
31	212643 Whirlpool Refrigerator Permagum Sealer
31	Golden Harvest (Uncut)
31	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
31	Almond (Uncut)
31	WP72107 Whirlpool Touchup
31	799344 Whirlpool Refrigerator Paint
31	72017 Whirlpool Appliance Touch-Up Paint White
31	WP505587 Whirlpool Refrigerator Sealer
31	WP542638 Whirlpool Refrigerator Grease
31	WPL 877303
31	WPL 939129
31	WPL 940753
31	Enamel, New Avocado (1 Qt. Uncut)
31	Enamel, Coffee (1 Qt. Uncut)
31	Paint, Touch-Up 1/2 Oz. (Coffee)
31	WPL 941750
31	72109 Whirlpool Dacor Avocado Touch-Up Paint
31	72032 Whirlpool Touch Up Paint Black
31	WPL 876029
31	WPL 799833
31	WPL 799832
31	Enamel, Black (1 Qt. Uncut)
31	CEMENT, ALUMILASTIC (1 1/4 OZ.)
31	TAPE, VINYL (3/4 X 108“)
31	WPL 799351
