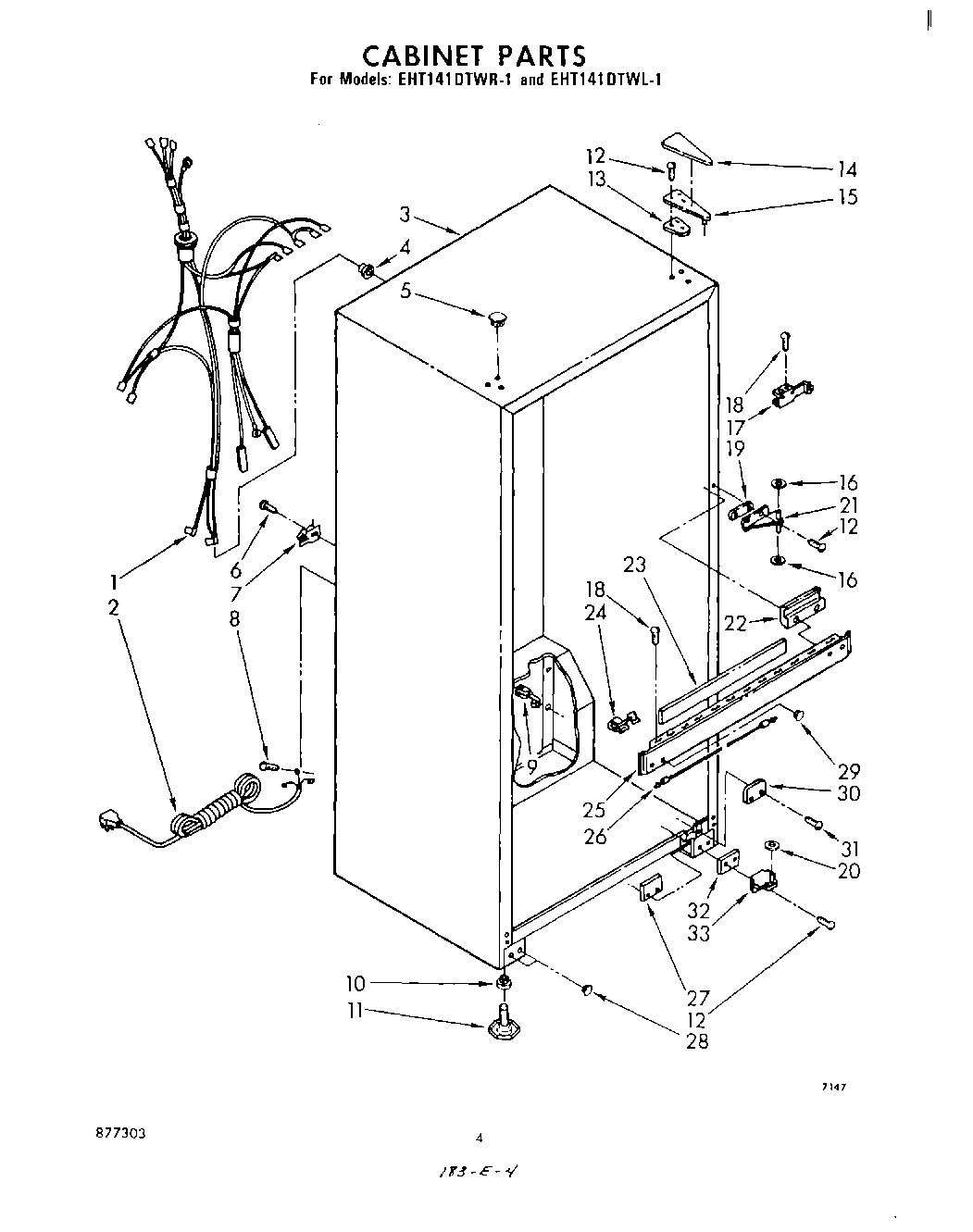

EHT141DTWR1 03 – CABINET

Products

Position	Product
1	Cabinet, Wiring Assembly
2	Cord, Service
3	Cabinet (Not A Serviceable Part)
4	Grommet, Wiring
5	Hole Plug (New Avocado)
5	Hole Plug (Coffee)
5	Hole Plug (2) (Golden Harvest)
5	Hole Plug (2) (Almond)
5	Hole Plug (2) (White)
6	W11624204 Whirlpool Screw
7	Clamp
8	Screw, 8-32 x 3/8
9	Bushing, Strain Relief
10	Grommet (4)
11	W11117769 Whirlpool Refrigerator Leveler
12	Screw (Repair)
12	WP999367 Whirlpool Refrigerator Screw
13	Shim, Hinge
14	1119787 Whirlpool Refrigerator Hinge Cover
14	Hinge, Cover (Coffee)
14	Hinge Cover (New Avocado)
14	Hinge Cover (Golden Harvest)
15	Hinge, Top
16	WP487802 Whirlpool Refrigerator Washer
17	Bracket, Center Rail (2)
18	WP488729 Whirlpool Refrigerator Door Screw
19	Shim, Hinge Center
20	WP487576 Whirlpool Washer
21	Hinge, Center
22	Center, Rail Shim (2)
23	Seal Strip, Center Rail
24	Breaker, Trim Clip
25	Center Rail (Almond)
25	Center Rail (New Avocado)
25	Center Rail (Golden Harvest)
25	Center Rail (White)
25	Center Rail (Coffee)
26	Heater, Mullion
27	Tap Plate, Bottom
28	Plug Button (2) (White)
28	Plug Button (2) (Golden Harvest)
28	Plug Button (2) (Coffee)
28	Plug Button (2) (New Avocado)
28	Plug Button (2) (Almond)
29	WPL 940090
29	Hole Plug (2)
29	Hole Plug (2) (Almond)
29	Hole Plug (2) (Golden Harvest)
29	Hole Plug (2) (Coffee)
30	Tube, Rail Cover (Almond)
30	Tube, Rail Cover (White)
30	Tube, Rail Cover (Golden Harvest)
30	WPL 935710
30	Tube, Rail Cover (Coffee)
31	Screw
32	Shim, Bottom Hinge
33	Hinge, Bottom R.H.
33	Hinge, Bottom L.H.
