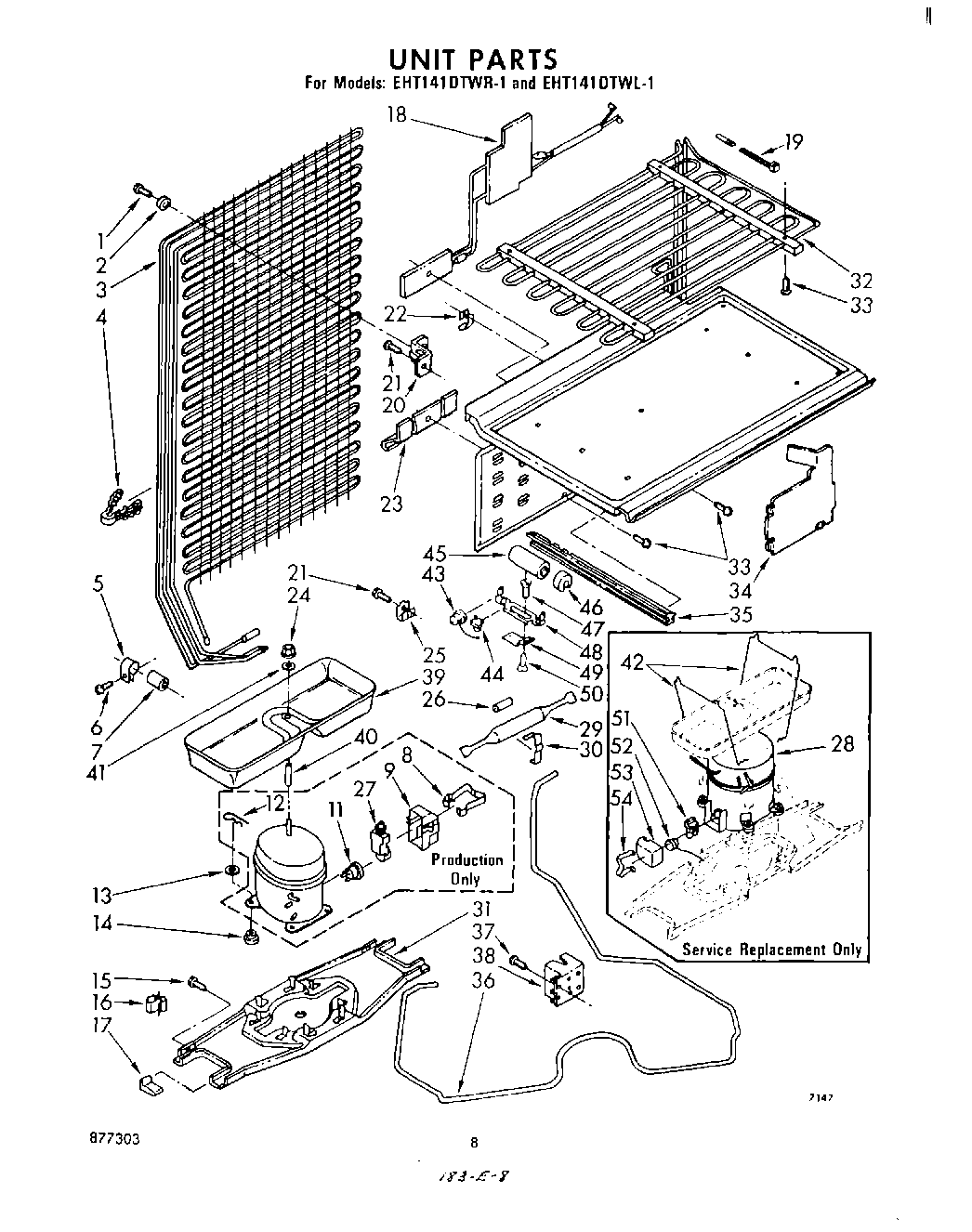

EHT141DTWR1 05 – UNIT

Products

PositionProduct
1Screw, 8 x 7/8
2Bumper, Rubber
3Condenser & Precooler Assembly
4Clip, Tube (2)
5Clamp Tube
6WPW10141625 Whirlpool Refrigerator Screw Assembly
7Dampener (2)
8Strap
9Terminal Cover
11Overload
12clip (4)
13slotted washer (4)
14Grommet (4)
15489340 Whirlpool Refrigerator Screw
16W10812038 Whirlpool Refrigerator Clip
17support grommet (2)
18Defrost Heater
19Strap
20Bracket, Condenser (2)
21Screw, 8 x 1/2
22Clip, Capillary Tube
23Clamp, Capillary Tube
24WP487939 Whirlpool Refrigerator Nut
25Clip, Condenser Mounting (2)
26Restrictor Sleeve
27Relay
28Compressor (Also Order 482727 Installation Kit & 876527 Mounting Kit)
29W10843121 Whirlpool Refrigerator Tube
30Drier Clamp
31Unit, Frame
32Evaporator Assembly
33Screw, 8-15 x 1/2 (4)
34Tube Cover
35Gasket, Evaporator Lower L.S.
35Gasket, Evaporator Lower R.S.
36Heat Exchanger
37W11624204 Whirlpool Screw
38Box, Junction
39Tray, Evaporator
40Spacer
41Washer
42retainer, drain pan (2) (service replacement only)
43Overload (Used On Start Kit 482278)
44Relay (Used On Start Kit 482278)
45WP482156 Whirlpool Refrigerator Capacitor
46Cap, Capacitor (Used On Start Kit 482278)
47Screw (2) (Used On Start Kit 482278)
48Support, Bracket (Used On Start Kit 482278)
49Bracket, Mounting (Used On Start Kit 482278)
50Screw (Used On Start Kit 482278)
51Relay (Used On Service Compressor 702215)
51Relay
52WPL 937214
53Cover, Terminal
54Start Kit
54VALVE, ACCESS (1/2“)
54Cover, Spring
54VALVE, ACCESS (5/8“)
54WP978025 Whirlpool Refrigerator Valve
54978030 Whirlpool Refrigerator Valve
54978027 Whirlpool Refrigerator Primary Valve
54978026 Whirlpool Refrigerator Primary Valve
