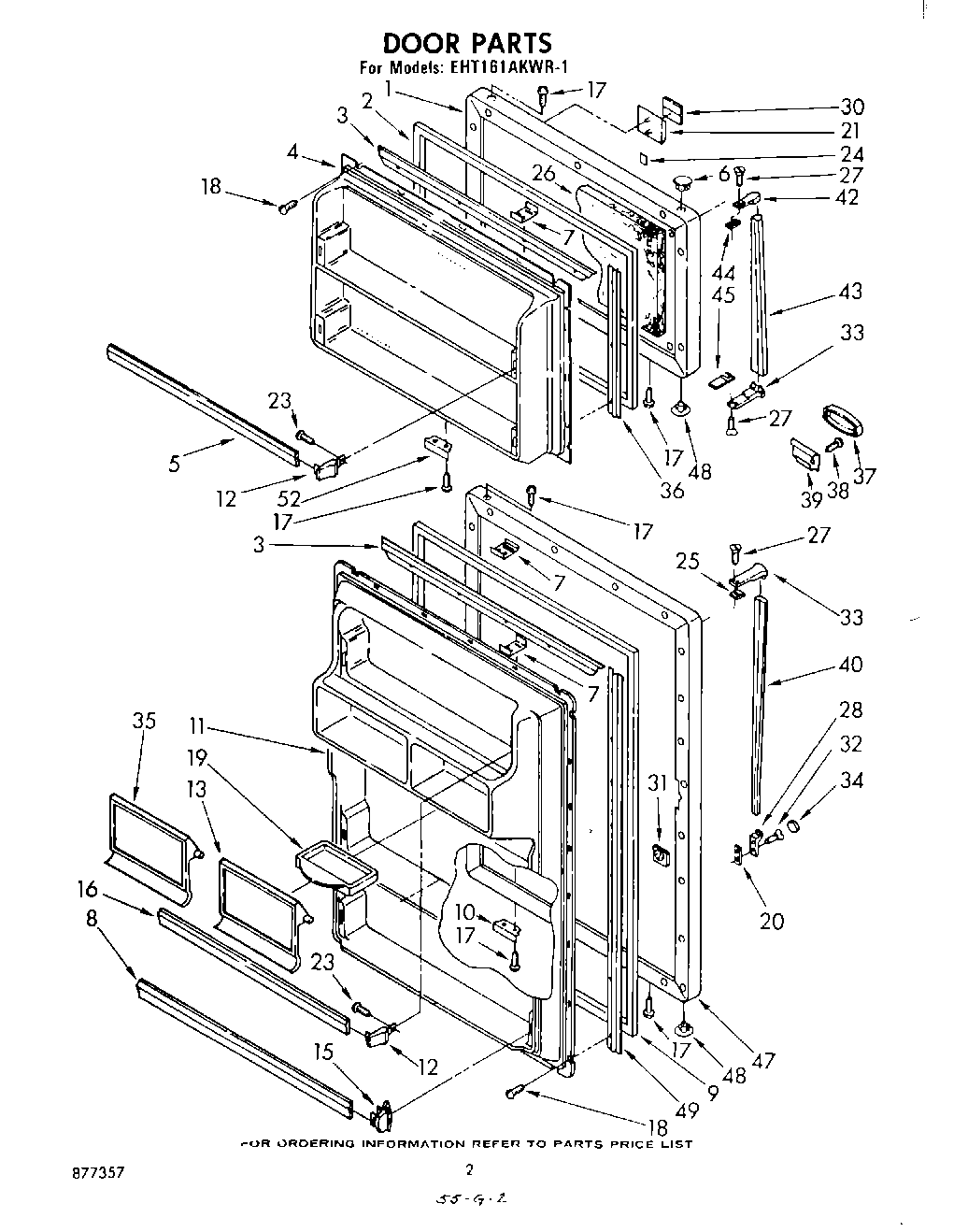

EHT161AKWR1 02 – DOOR

EHT161AKWR1 02 – DOOR

Written by

in

EHT161AKWR1 02 – DOOR

Products

Position	Product
1	Door, Freezer R.H. (Also Order Item 26) (White)
1	Door, Freezer R.H. (Also Order Item 26) (Almond)
1	Door, Freezer R.H. (Also Order Item 26) (New Avocado)
1	Door, Freezer R.H. (Also Order Item 26) (Coffee)
1	Door, Freezer R.H. (Also Order Item 26) (Golden Harvest)
2	Gasket, Freezer Door
3	Retainer, Top & Bottom (2)
4	Panel, Interior
5	Trim, Shelf (2)
6	Hole Plug (Almond)
6	Hole Plug (Coffee)
6	Hole Plug (New Avocado)
6	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Tap Plate
8	Trim Shelf
9	Gasket, Refrigerator Door
10	Bracket, Door Stop
11	Panel, Interior
12	Support, Door Trim (2)
13	Door, Butter
15	Retainer, Door Trim (2)
16	Trim, Shelf (2)
17	WP488921 Whirlpool Refrigerator Screw
17	Screw (Repair)
18	W11624204 Whirlpool Screw
18	SCREW
20	Shim, Handle End
21	WPL 849310
23	WP488787 Whirlpool Refrigerator Screw
24	Tape Strip
25	Spacer, Handle
26	WPL 876029
27	Screw (Repair)
27	WP488920 Whirlpool Refrigerator Screw
28	WP2183139 Whirlpool Refrigerator Handle End Cap
30	WPL 848308
31	WP939101 Whirlpool Refrigerator Plate
32	WP488729 Whirlpool Refrigerator Door Screw
33	Cap, Handle
34	WP1101634 Whirlpool Refrigerator Cover
35	Door, Utility
36	Retainer Gasket Side
37	Medallion (New Avocado)
37	Medallion (Golden Harvest)
37	Medallion (Almond)
37	Medallion (White)
37	Medallion (Coffee)
39	Clip, Medallion
40	Handle, Center
42	WPL 983544
43	WPL 982944
44	WPL 848338
45	WPL 987867
47	WPL 940289
47	WPL 940286
47	WPL 940287
47	WPL 940288
47	WPL 940290
48	Hole Plug (2) (New Avocado)
48	Hole Plug (2) (Almond)
48	Hole Plug (2) (Coffee)
48	Hole Plug (2)
48	Hole Plug (2) (Golden Harvest)
49	Retainer, Gasket Side
52	Bracket, Door Stop
