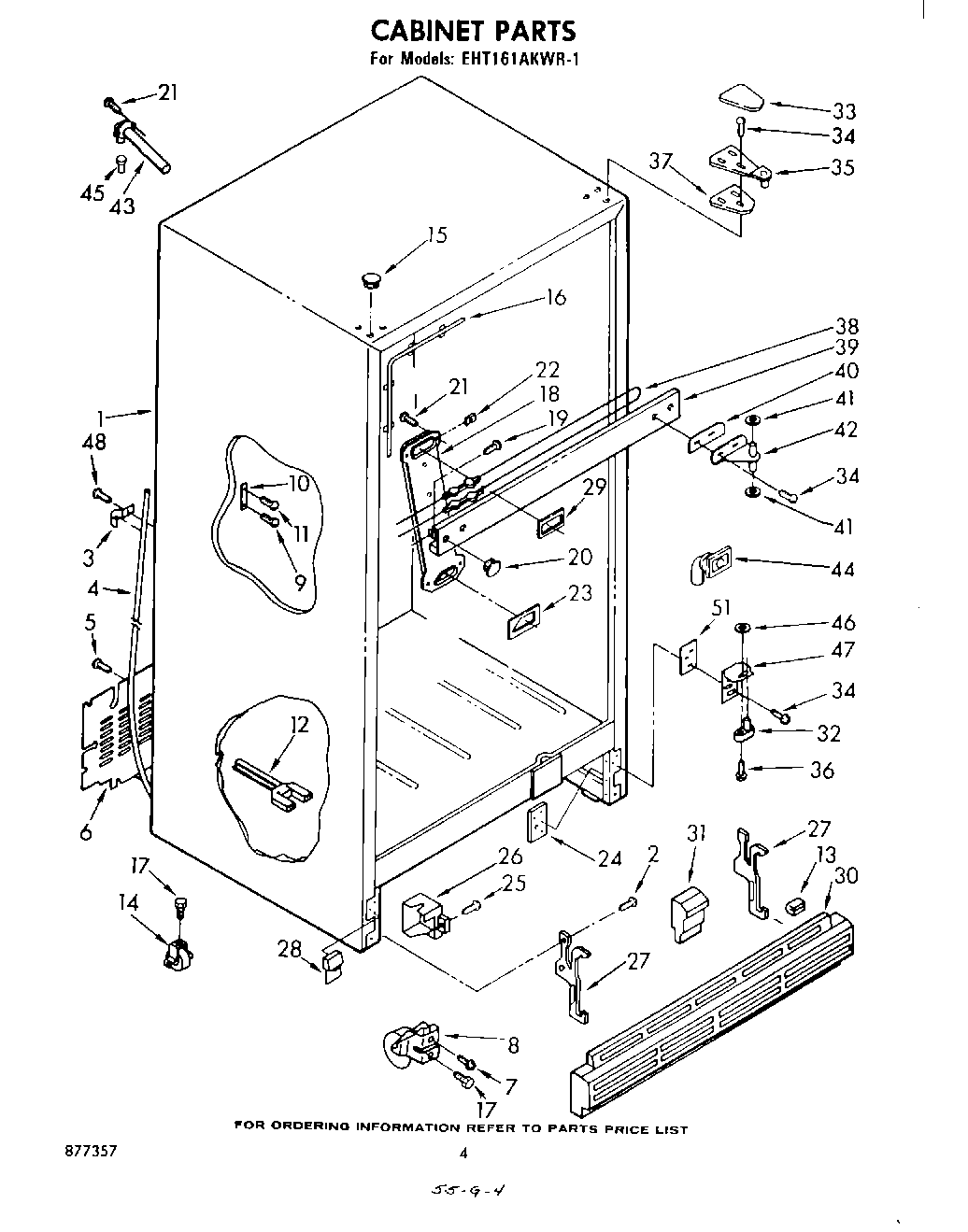

EHT161AKWR1 03 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2W11624204 Whirlpool Screw
3WPL 836077
48316810 Whirlpool Refrigerator Drain Tube
6Cover
7Screw, 5/16-24 x 1
8Roller, Front
9WP489128 Whirlpool Refrigerator Screw
10Strap, Ground
11Screw, 8-32 x 1-1/2
12WPL 548734
13Bumper, Grille
14WPW10250570 Whirlpool Refrigerator Cabinet Roller
15Hole Plug (2) (White)
15Hole Plug (2) (Almond)
15Hole Plug (New Avocado)
15Hole Plug (2) (Golden Harvest)
15Hole Plug (Coffee)
16Stile, Heater
17Screw, 1/4-28 x 1/2 (2)
18Duct, Air
19Screw, 8 x 3/8
19Screw (Repair)
20Hole Plug (Coffee)
20Hole Plug (New Avocado)
20Hole Plug (Golden Harvest)
20Hole, Plug (Almond)
20Hole, Plug (White)
21WP98165 Whirlpool Screw
22Nut, Speed (4)
23Gasket Outlet
24Tap Plate
25WP488729 Whirlpool Refrigerator Door Screw
26WPL 549947
27WPL 844614
28WPL 989930
28WPL 989929
28WPL 989928
28Corner, Filler (
28WPL 989931
29Gasket Inlet
30Grille (New Avocado)
30Grille (Golden Harvest)
30Grille (Coffee)
30Grille (White)
30Grille (Almond)
31WPL 836372
32Hinge Pin, Bottom
33Hinge, Cover (Coffee)
331119787 Whirlpool Refrigerator Hinge Cover
33Hinge Cover (Golden Harvest)
33Hinge Cover (New Avocado)
34Screw (Repair)
34WP999367 Whirlpool Refrigerator Screw
35Hinge, Top
36Screw 10-32 x 5/16
37WPL 836151
38WPL 989254
39WPL 989191
39WPL 836066
39WPL 989907
39WPL 989906
39WPL 989905
40Shim, Hinge Center
41WP488296 Whirlpool Washer Refrigerator
42Hinge, Center
43WP2196157 Whirlpool Fill Tube
44WPL 836096
45WP487996 Whirlpool Refrigerator Cap Tube
46WP487802 Whirlpool Refrigerator Washer
47Hinge, Bottom
48WP489069 Whirlpool Compactor Screw
51Shim, Bottom Hinge
