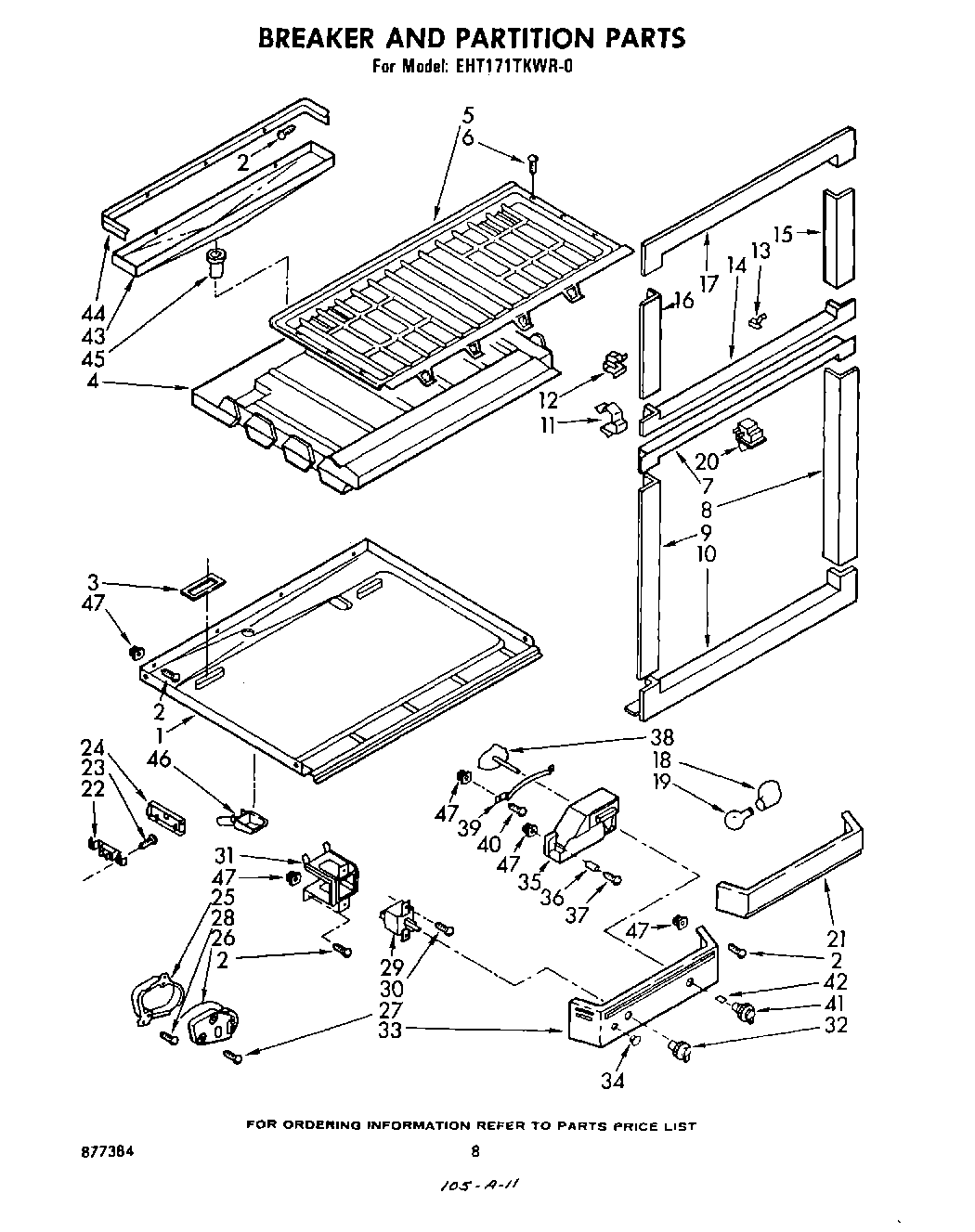

EHT171TKWR0 05 – BREAKER AND PARTITION

Products

Position	Product
1	Compartment Separator Bottom
2	W11624204 Whirlpool Screw
3	Gasket, Air Return
4	Insulation, Separator
5	Separator, Top Compartment
6	WP488729 Whirlpool Refrigerator Door Screw
7	Breaker, Mullion (Bottom)
8	Breaker, Refrigerator R.S.
9	Breaker, Refrigerator L.S.
10	Breaker Trim Bottom
11	Clip, Wrapper (23)
12	Breaker, Clip
13	Breaker, Trim Clip
14	Breaker, Mullion (Top)
15	Breaker, Freezer (R.S.)
16	Breaker, Freezer (L.S.)
17	Breaker Trim Top Freezer
18	4387478 Whirlpool Refrigerator Light Socket
19	RANGE ONLY 40W 120V APPL BULB
20	W11384469 Whirlpool Door Switch
21	Light Lens
22	Bracket & Switch Assembly
23	WP489128 Whirlpool Refrigerator Screw
24	Escutcheon, Power Saver
25	Timer, Container
26	Defrost, Timer
27	Screw, 8 x 3/8 (2)
28	WP489069 Whirlpool Compactor Screw
29	WP819470 Whirlpool Refrigerator Thermostat
30	WP965173 Whirlpool Dishwasher Screw
31	Bracket, Thermostat
32	Knob, Temperature Control
33	Panel, Control
34	Hole Plug (2)
35	Air Diffuser
36	836667 Whirlpool Refrigerator Spacer
37	Screw, 8 x 1-1/4 (3)
38	Damper, Air
39	Retrainer, Air Dampener
40	Screw, 8 x 3/8
41	Control Knob
42	Knob, Retainer
43	Drain Pan
44	Gasket Pan
45	WPL 836096
46	Cup, Drain
47	Grommet
