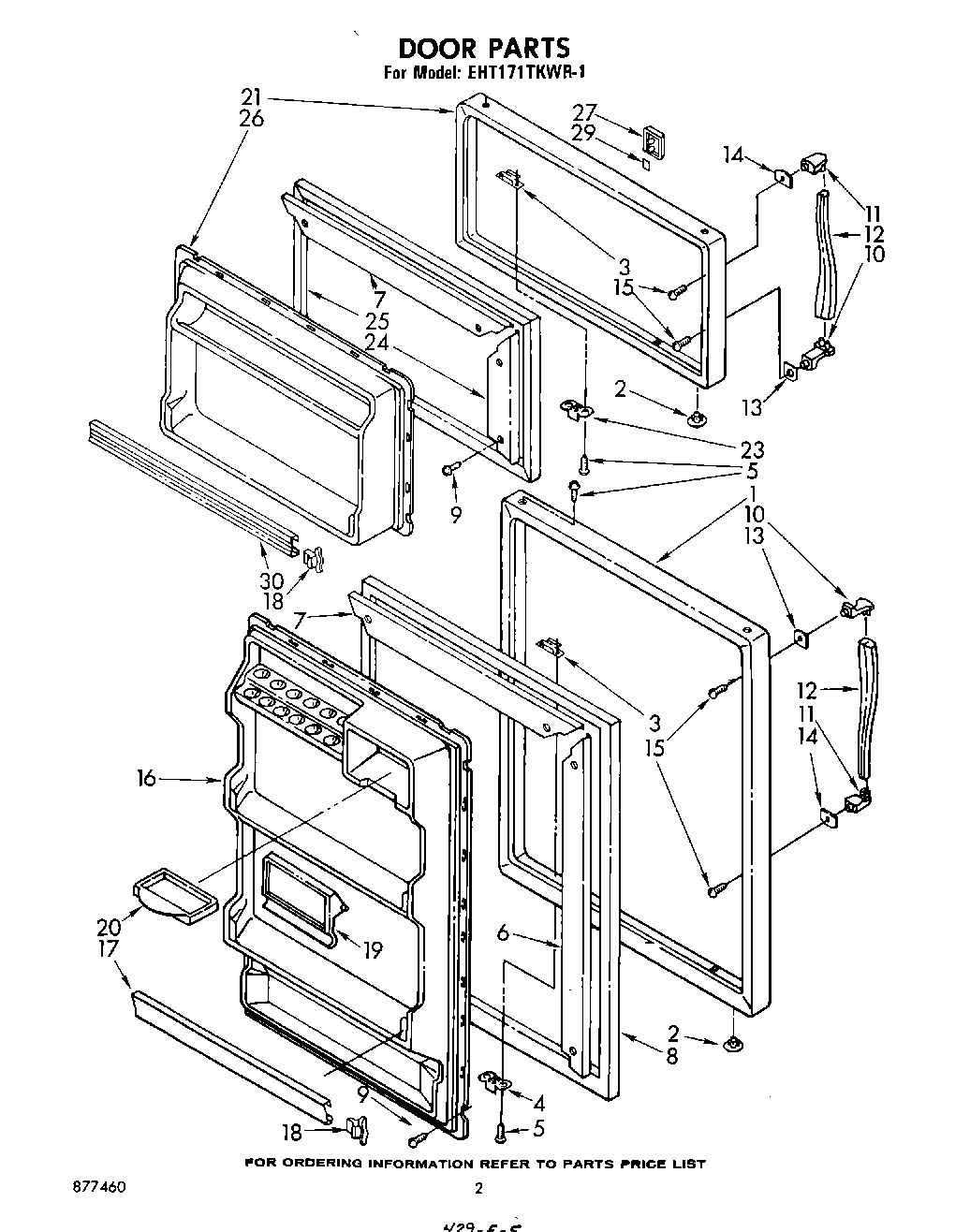

EHT171TKWR1 02 – DOOR, LIT/OPTIONAL

EHT171TKWR1 02 – DOOR, LIT/OPTIONAL

Written by

in

EHT171TKWR1 02 – DOOR, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	285006 Whirlpool Spray
	Paint, Spray 13 Oz. (Avocado)
	paint, spray 13 oz. (coffee)
	350942 Whirlpool Spray Paint
	Golden Harvest
	350956 Whirlpool Spray Assembly
	Leveler (Thinner)
1	Exterior Door Panel (Almond)
1	Exterior Door Panel (Avocado)
1	Exterior Door Panel (Golden Harvest)
1	Exterior Door Panel (Coffee)
1	Exterior Door Panel (White)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	Retainer, Gasket Side
7	Retainer, Gasket Top
8	2188450A Whirlpool Refrigerator Door Gasket
9	W11624204 Whirlpool Screw
9	SCREW
10	WPL 982947
11	WPL 982948
12	WPL 982978
13	WPL 941917
14	WPL 941918
15	Screw (2)
16	Interior, Door Panel
17	Door, Trim (2)
18	WP839975 Whirlpool Refrigerator Endcap Trim
19	Door, Butter
21	Exterior Door Freezer (Coffee)
21	Exterior Door Freezer (Golden Harvest)
21	Exterior Door Freezer (Avocado)
21	Exterior Door Freezer (Almond)
21	Exterior Door Freezer (White)
23	Bracket, Door Stop
24	Retainer Gasket Side
25	2188460A Whirlpool Refrigerator Door Gasket
26	Interior Panel Freezer
27	WPL 945117
29	Tape Strip
30	WPL 843707
30	511873 Whirlpool Refrigerator Paint
30	WPL 877460
30	212643 Whirlpool Refrigerator Permagum Sealer
30	WPL 944196
30	Enamel, Coffee (1 Qt. Uncut)
30	Golden Harvest (Uncut)
30	WPL 945441
30	72017 Whirlpool Appliance Touch-Up Paint White
30	WPL 945759
30	Almond (Uncut)
30	WP72107 Whirlpool Touchup
30	799344 Whirlpool Refrigerator Paint
30	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
30	606755 Whirlpool Refrigerator Bag
30	876370 Whirlpool Refrigerator Insulation
30	Enamel, New Avocado (1 Qt. Uncut)
30	Paint, Touch-Up 1/2 Oz. (Coffee)
30	72109 Whirlpool Dacor Avocado Touch-Up Paint
30	WPL 876029
30	72032 Whirlpool Touch Up Paint Black
30	WPL 799351
30	Kit, Evaporator Repair (Aluminum Epoxy)
30	WPL 799832
30	Enamel, Black (1 Qt. Uncut)
30	CEMENT, ALUMILASTIC (1 1/4 OZ.)
30	TAPE, VINYL (3/4 X 108“)
30	WP542638 Whirlpool Refrigerator Grease
30	WP505587 Whirlpool Refrigerator Sealer
30	WP503695 Whirlpool Refrigerator Sealer
30	WPL 944197
