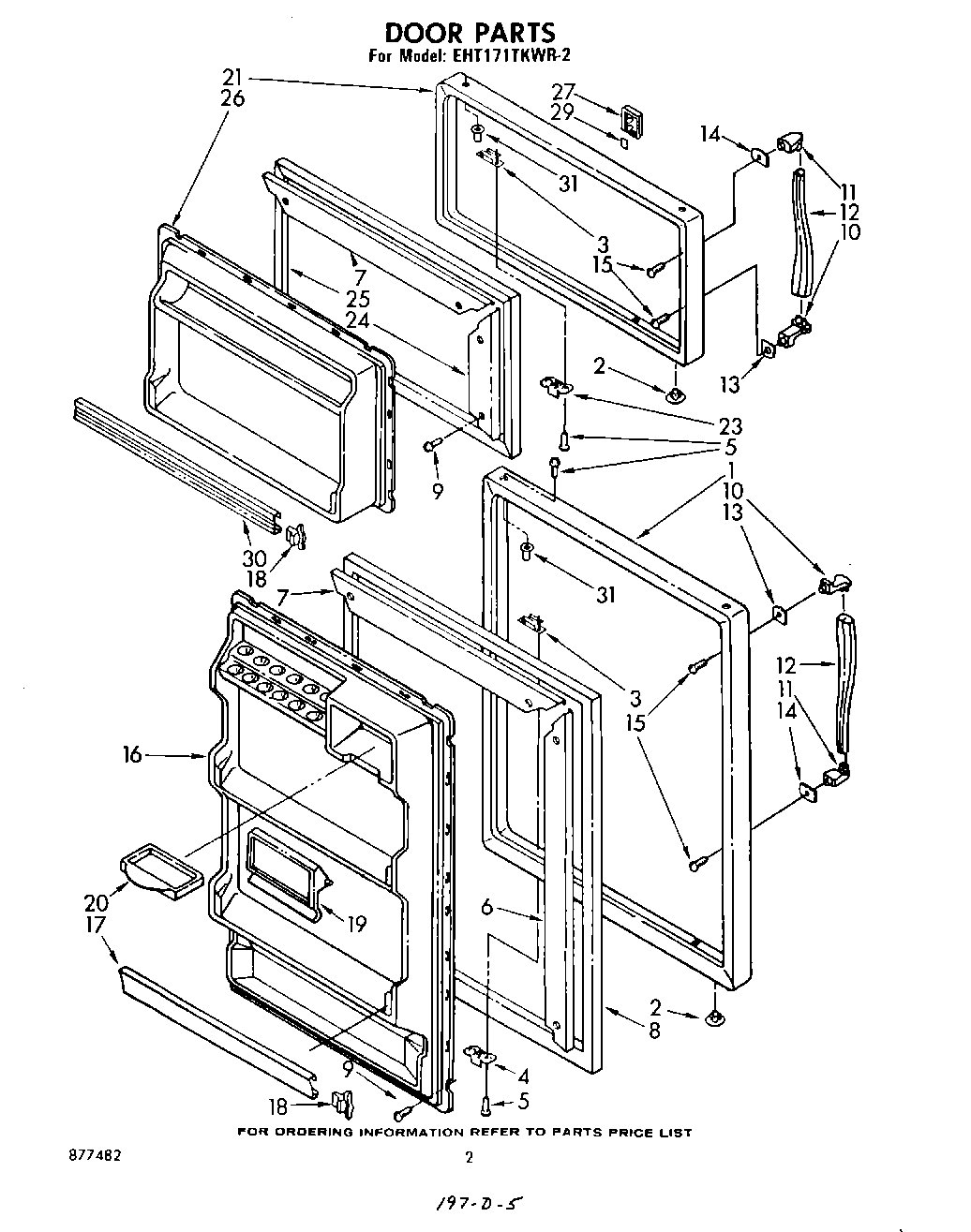

EHT171TKWR2 02 – DOOR, LIT/OPTIONAL

EHT171TKWR2 02 – DOOR, LIT/OPTIONAL

Written by

in

EHT171TKWR2 02 – DOOR, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	350942 Whirlpool Spray Paint
	Golden Harvest
	285006 Whirlpool Spray
	paint, spray 13 oz. (coffee)
	Paint, Spray 13 Oz. (Avocado)
	Leveler (Thinner)
	350956 Whirlpool Spray Assembly
1	Exterior Door Panel (White)
1	Exterior Door Panel (Golden Harvest)
1	Exterior Door Panel (New Avocado)
1	Exterior Door Panel (Almond)
1	Exterior Door Panel (Coffee)
2	Hole Plug (2) (New Avocado)
2	Hole Plug (2) (Coffee)
2	Hole Plug (2)
2	Hole Plug (2) (Almond)
2	Hole Plug (2) (Golden Harvest)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	Retainer, Gasket Side
7	Retainer, Gasket Top
8	2188450A Whirlpool Refrigerator Door Gasket
9	SCREW
9	WP489069 Whirlpool Compactor Screw
10	WPL 982947
11	WPL 982948
12	WPL 982978
13	WPL 941917
14	WPL 941918
15	Screw (2)
16	Interior, Door Panel
17	Door, Trim (2)
18	WP839975 Whirlpool Refrigerator Endcap Trim
19	Door, Butter
21	Exterior Door Freezer (Golden Harvest)
21	Exterior Door Freezer (New Avocado)
21	Exterior Door Freezer (Almond)
21	Exterior Door Freezer (White)
21	Exterior Door Freezer (Coffee)
23	Bracket, Door Stop
24	Retainer Gasket Side
25	2188460A Whirlpool Refrigerator Door Gasket
26	Interior Panel Freezer
27	WPL 945117
29	Tape Strip
30	WPL 843707
31	WP505587 Whirlpool Refrigerator Sealer
31	WPL 945759
31	WP503695 Whirlpool Refrigerator Sealer
31	876370 Whirlpool Refrigerator Insulation
31	606755 Whirlpool Refrigerator Bag
31	Enamel, Coffee (1 Qt. Uncut)
31	511873 Whirlpool Refrigerator Paint
31	212643 Whirlpool Refrigerator Permagum Sealer
31	Golden Harvest (Uncut)
31	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
31	Almond (Uncut)
31	WP72107 Whirlpool Touchup
31	799344 Whirlpool Refrigerator Paint
31	72017 Whirlpool Appliance Touch-Up Paint White
31	WPL 945441
31	WPL 944197
31	Enamel, New Avocado (1 Qt. Uncut)
31	Cap, Hinge Sleeve (2)
31	Paint, Touch-Up 1/2 Oz. (Coffee)
31	72109 Whirlpool Dacor Avocado Touch-Up Paint
31	72032 Whirlpool Touch Up Paint Black
31	WPL 799351
31	Kit, Evaporator Repair (Aluminum Epoxy)
31	WPL 876029
31	WPL 799832
31	Enamel, Black (1 Qt. Uncut)
31	CEMENT, ALUMILASTIC (1 1/4 OZ.)
31	TAPE, VINYL (3/4 X 108“)
31	WP542638 Whirlpool Refrigerator Grease
31	WPL 944196
31	WPL 877482
