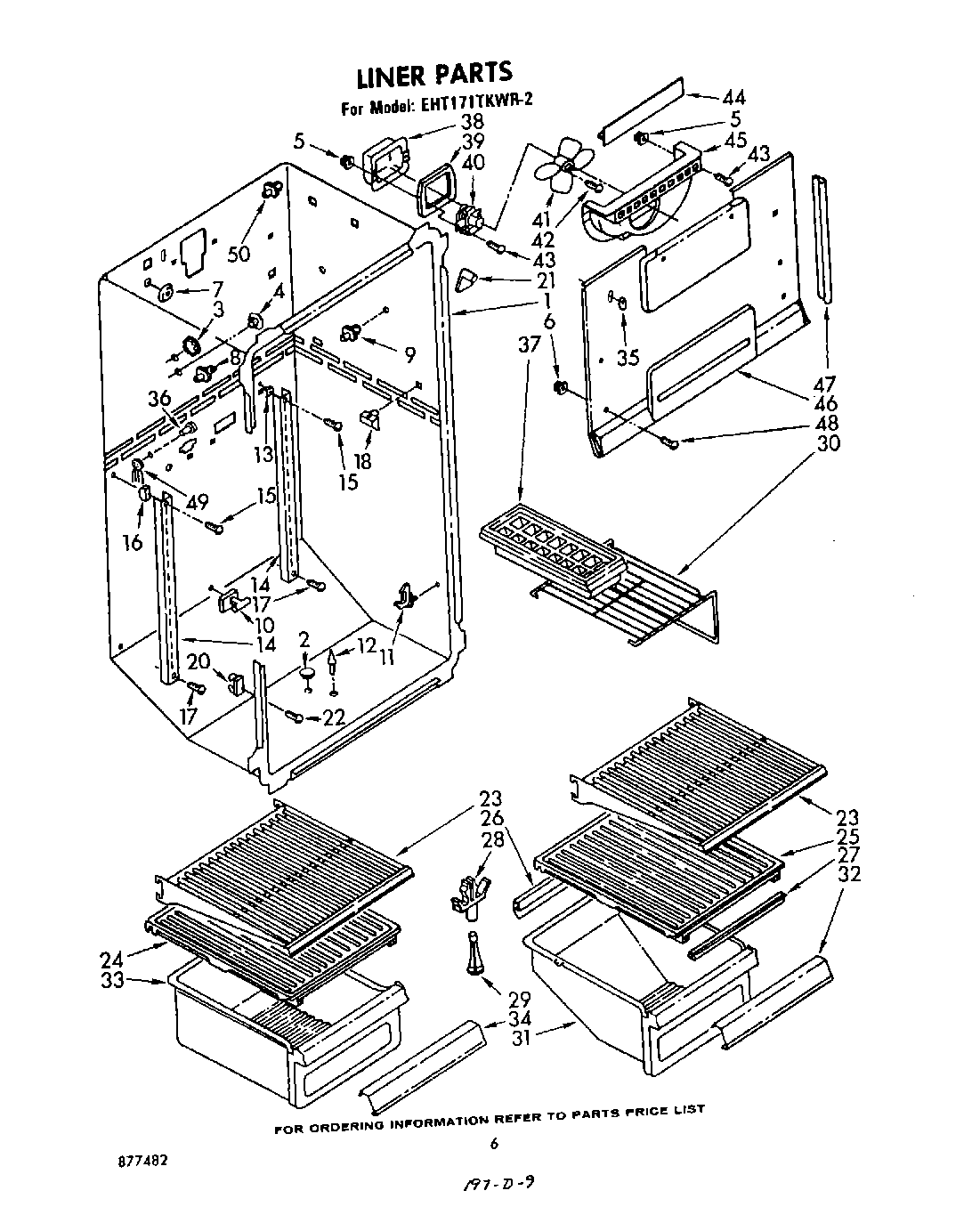

EHT171TKWR2 04 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Drain Cover
3	Hole, Plug
4	Hole, Plug
5	Grommet
6	Grommet
7	Grommet, Water Inlet
8	Shelf Stud (2)
9	Shelf, Stud
10	Stud, Support Rear
11	Shelf, Stud
12	Grommet, Crisper Cover
13	Screw, Anchor (3)
14	Shelf, Ladder (2)
15	Screw, 8 x 1-1/4 (3)
16	520965 Whirlpool Refrigerator Support
17	Screw, 8-32 x 1-1/4
18	Retainer, Stud (4)
20	Spacer, Liner (8)
21	Spacer, Liner (2)
22	WP488163 Whirlpool Refrigerator Screw
23	Shelf, Cantilever
24	Cover, Meat Pan
25	Cover, Pan Slide
26	Crisper Gasket, Rear
27	Crisper Gasket, Front
28	Support, Cover
29	Post, Cover
30	Wire, Shelf F.C.
31	Pan, Crisper
32	Overlay Pan
33	Pan, Meat
34	Overlay Pan
35	Hole Plug, Evaporator
36	Receptacle Cap
37	WP841180A Whirlpool Microwave Glass Turntable Tray
38	Cover, Motor
39	Gasket, Motor Cover
40	482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
41	WP1100938 Whirlpool Refrigerator Fan Blade
42	WP487887 Whirlpool Refrigerator Screw
43	W11624204 Whirlpool Screw
44	Gasket, Sealing
45	Scroll, Fan
46	Cover, Evaporator
47	Gasket, Cover (2) (15-3/4“)
48	WP488729 Whirlpool Refrigerator Door Screw
49	Liner Wiring (Defrost Timer)
50	Stud
