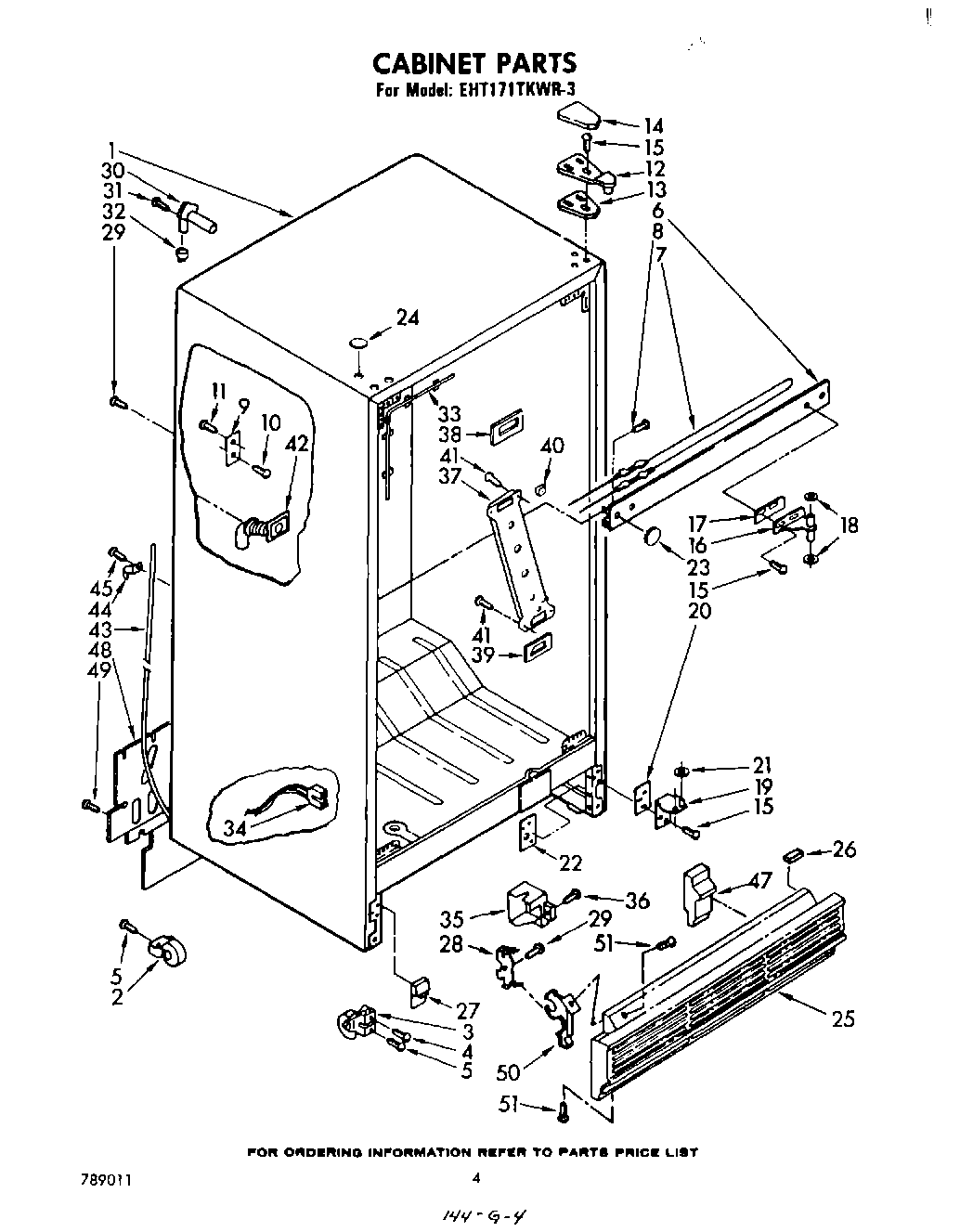

EHT171TKWR3 03 – CABINET

EHT171TKWR3 03 – CABINET

Written by

in

EHT171TKWR3 03 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	WPW10250570 Whirlpool Refrigerator Cabinet Roller
3	Roller, Front
4	Screw, 5/16-24 x 1
5	Screw, 1/4-28 x 1/2 (2)
6	Center Rail (Golden Harvest)
6	Center Rail (Coffee)
6	Center Rail (Almond)
6	Center Rail (White)
6	Center Rail (New Avocado)
7	Heater, Mullion
8	Screw (Repair)
8	Screw, 8 x 3/8
9	Strap, Ground
10	WP489128 Whirlpool Refrigerator Screw
11	Screw, 8-32 x 1-1/2
12	Hinge, Top
13	WPL 836151
14	Hinge Cover (New Avocado)
14	Hinge, Cover (Coffee)
14	1119787 Whirlpool Refrigerator Hinge Cover
14	Hinge Cover (Golden Harvest)
15	WP999367 Whirlpool Refrigerator Screw
15	Screw (Repair)
16	Hinge, Center
17	Shim, Hinge Center
18	WP488296 Whirlpool Washer Refrigerator
19	Hinge (Bottom)
20	Shim, Bottom Hinge
21	WP487802 Whirlpool Refrigerator Washer
22	Tap Plate
23	Hole Plug (New Avocado)
23	Hole Plug (Golden Harvest)
23	Hole Plug (Coffee)
23	Hole, Plug (Almond)
23	Hole, Plug (White)
24	Hole Plug (2) (White)
24	Hole Plug (2) (Almond)
24	Hole Plug (New Avocado)
24	Hole Plug (Coffee)
24	Hole Plug (2) (Golden Harvest)
25	Exterior, Grille (Coffee)
25	Exterior, Grille (White)
25	Exterior Grille (New Avocado)
25	Exterior, Grille (Almond)
25	Exterior, Grille (Golden Harvest)
26	Bumper, Grille
27	WPL 989929
27	WPL 989928
27	WPL 989931
27	WPL 989930
27	Corner, Filler (
28	WPL 989068
29	W11624204 Whirlpool Screw
30	WP2196157 Whirlpool Fill Tube
32	WP487996 Whirlpool Refrigerator Cap Tube
33	Stile, Heater
34	WPL 548734
35	WPL 549947
36	WP488729 Whirlpool Refrigerator Door Screw
37	Duct, Air
38	Gasket Inlet
39	Gasket Outlet
40	Nut, Speed (4)
41	WP98165 Whirlpool Screw
42	WPL 836096
43	8316810 Whirlpool Refrigerator Drain Tube
44	WPL 836077
45	WP489069 Whirlpool Compactor Screw
47	WPL 836372
48	WPL 850459
50	WP944224 Whirlpool Refrigerator Support
51	WPL 489085
