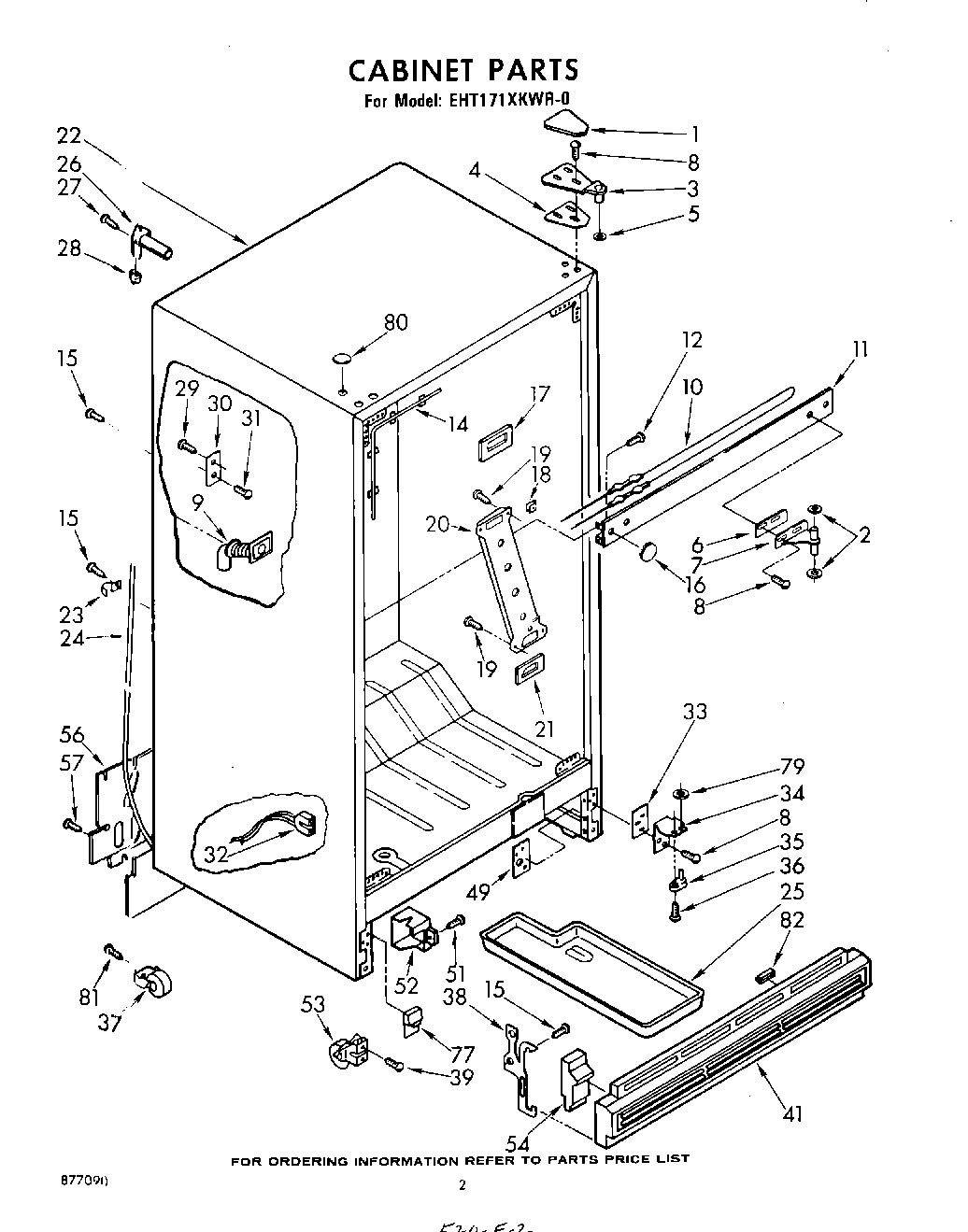

EHT171XKWR0 02 – CABINET

EHT171XKWR0 02 – CABINET

Written by

in

EHT171XKWR0 02 – CABINET

Products

PositionProduct
1Hinge Cover (New Avocado)
1Hinge, Cover (Coffee)
11119787 Whirlpool Refrigerator Hinge Cover
1Hinge Cover (Golden Harvest)
2WP488296 Whirlpool Washer Refrigerator
3Hinge & Shim (Top)
4WPL 836151
5WP487802 Whirlpool Refrigerator Washer
6Shim, Hinge Center
7Hinge & Shim (Center)
8WP999367 Whirlpool Refrigerator Screw
8Screw (Repair)
9WPL 836096
10Heater, Mullion
11Center Rail (Coffee)
11Center Rail (Almond)
11Center Rail (New Avocado)
11Center Rail (White)
11Center Rail (Golden Harvest)
12Screw (Repair)
12Screw, 8 x 3/8
14Stile, Heater
15W11624204 Whirlpool Screw
16Hole Plug (New Avocado)
16Hole Plug (Golden Harvest)
16Hole Plug (Coffee)
16Hole, Plug (Almond)
16Hole, Plug (White)
17Gasket Inlet
18Nut, Speed (4)
20Duct, Air
21Gasket Outlet
22Cabinet (Not A Serviceable Part)
23WPL 836077
248316810 Whirlpool Refrigerator Drain Tube
25WPL 842041
26WP2196157 Whirlpool Fill Tube
27WP98165 Whirlpool Screw
28WP487996 Whirlpool Refrigerator Cap Tube
29Screw, 8-32 x 1-1/2
30Strap, Ground
31WP489128 Whirlpool Refrigerator Screw
32WPL 548734
33Shim, Bottom Hinge
34Hinge, Bottom
35Hinge Pin, Bottom
36Screw 10-32 x 5/16
37WPW10250570 Whirlpool Refrigerator Cabinet Roller
38WPL 844614
39Screw, 5/16-24 x 1
41Exterior Grille (Coffee)
41Exterior Grille (White)
41Exterior Grille (New Avocado)
41Exterior Grille (Almond)
41Exterior Grille (Golden Harvest)
49Tap Plate
51WP488729 Whirlpool Refrigerator Door Screw
52WPL 549947
53Roller, Front
54WPL 836372
56WPL 850459
77Corner, Filler (
77WPL 989928
77WPL 989931
77WPL 989929
77WPL 989930
80Hole Plug (2) (White)
80Hole Plug (2) (Almond)
80Hole Plug (2) (Golden Harvest)
80Hole Plug (New Avocado)
80Hole Plug (Coffee)
81Screw, 1/4-28 x 1/2 (2)
82Bumper, Grille
