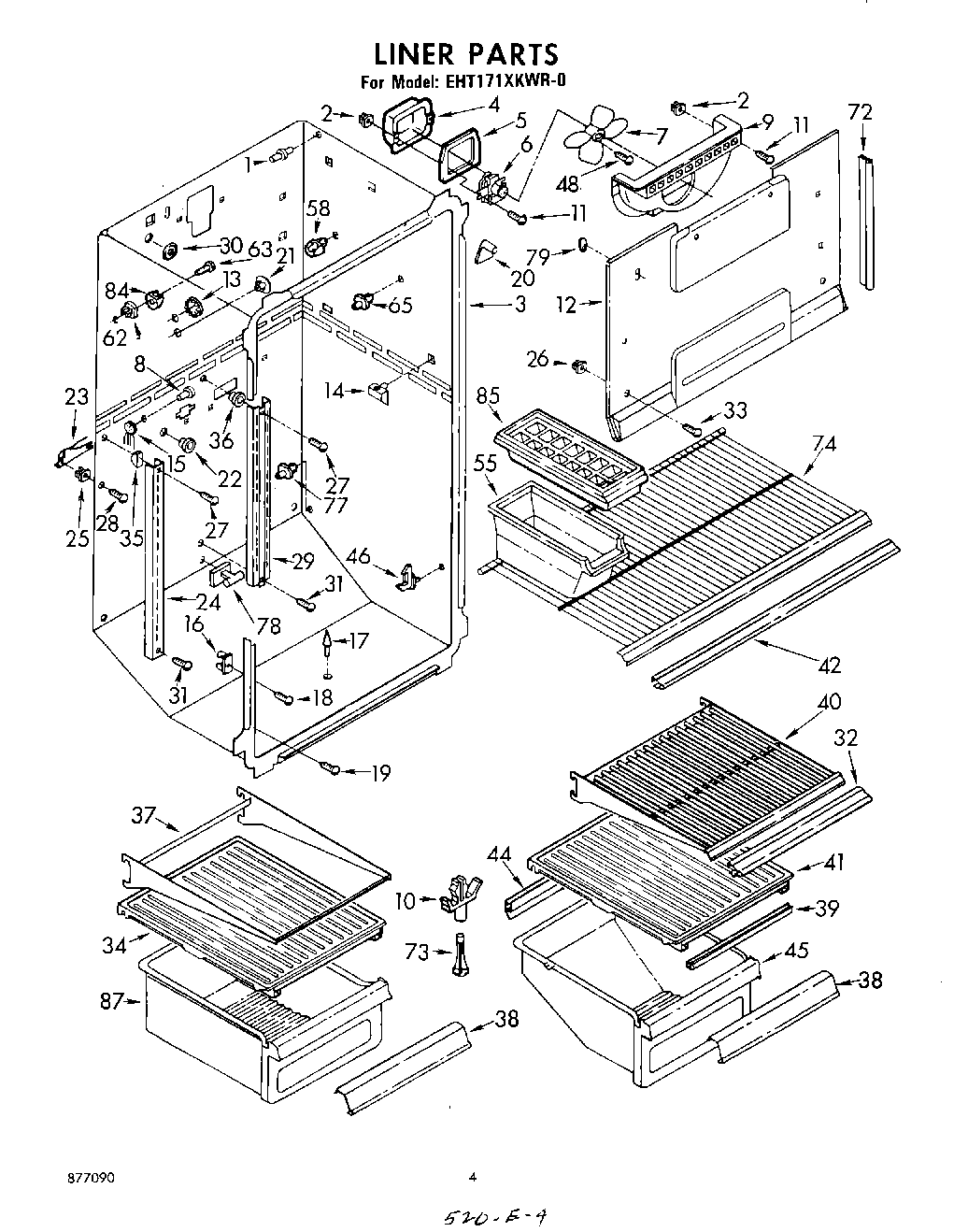

EHT171XKWR0 03 – LINER

Products

Position	Product
1	Stud
2	Grommet
3	Liner (Not A Serviceable Part)
4	Cover, Motor
5	Gasket, Motor Cover
6	482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
7	WP1100938 Whirlpool Refrigerator Fan Blade
8	Receptacle Cap
9	Scroll, Fan
10	Support, Cover
11	W11624204 Whirlpool Screw
12	Cover, Evaporator
13	Hole, Plug
14	Retainer, Stud (4)
15	Wiring, Ice Maker
16	Spacer, Liner (8)
17	Grommet, Crisper Cover
18	WP488163 Whirlpool Refrigerator Screw
19	Screw, 8 x 3/8 (2)
20	Spacer, Liner (2)
21	Hole, Plug
22	Grommet, Wiring
23	Shelf, Reinforcement
24	Shelf, Ladder (2)
25	Screw Grommet
26	Grommet
27	Screw, 8 x 1-1/4 (3)
28	WP98165 Whirlpool Screw
29	Shelf, Ladder Center
30	Grommet, Water Inlet
31	Screw, 8-32 x 1-1/4
31	Screw (Repair)
32	Trim, Shelf
34	Cover, Meat Pan
35	520965 Whirlpool Refrigerator Support
36	Screw Support, Center Ladder (2)
37	Pan Shelf
38	Overlay, Pan
39	Crisper, Gasket Front
40	Shelf, Cantilever (3)
41	Pan, Slide & Cover (2)
42	Trim, Shelf
44	Crisper Gasket, Rear
45	Pan, Crisper
46	Shelf, Stud
48	WP487887 Whirlpool Refrigerator Screw
55	WP982704 Whirlpool Refrigerator Container
58	Shelf Stud Saddle (R.S.)
62	Screw Grommet
63	WP488729 Whirlpool Refrigerator Door Screw
65	Stud, Shelf (2)
72	Gasket, Cover (2) (15-3/4“)
73	Post, Cover
74	Shelf, Freezer
77	Shelf, Stud
78	Stud, Support Rear
79	Hole Plug, Evaporator
84	Shelf Stud, Saddle L.S.
85	WP841180A Whirlpool Microwave Glass Turntable Tray
87	WPL 983809
