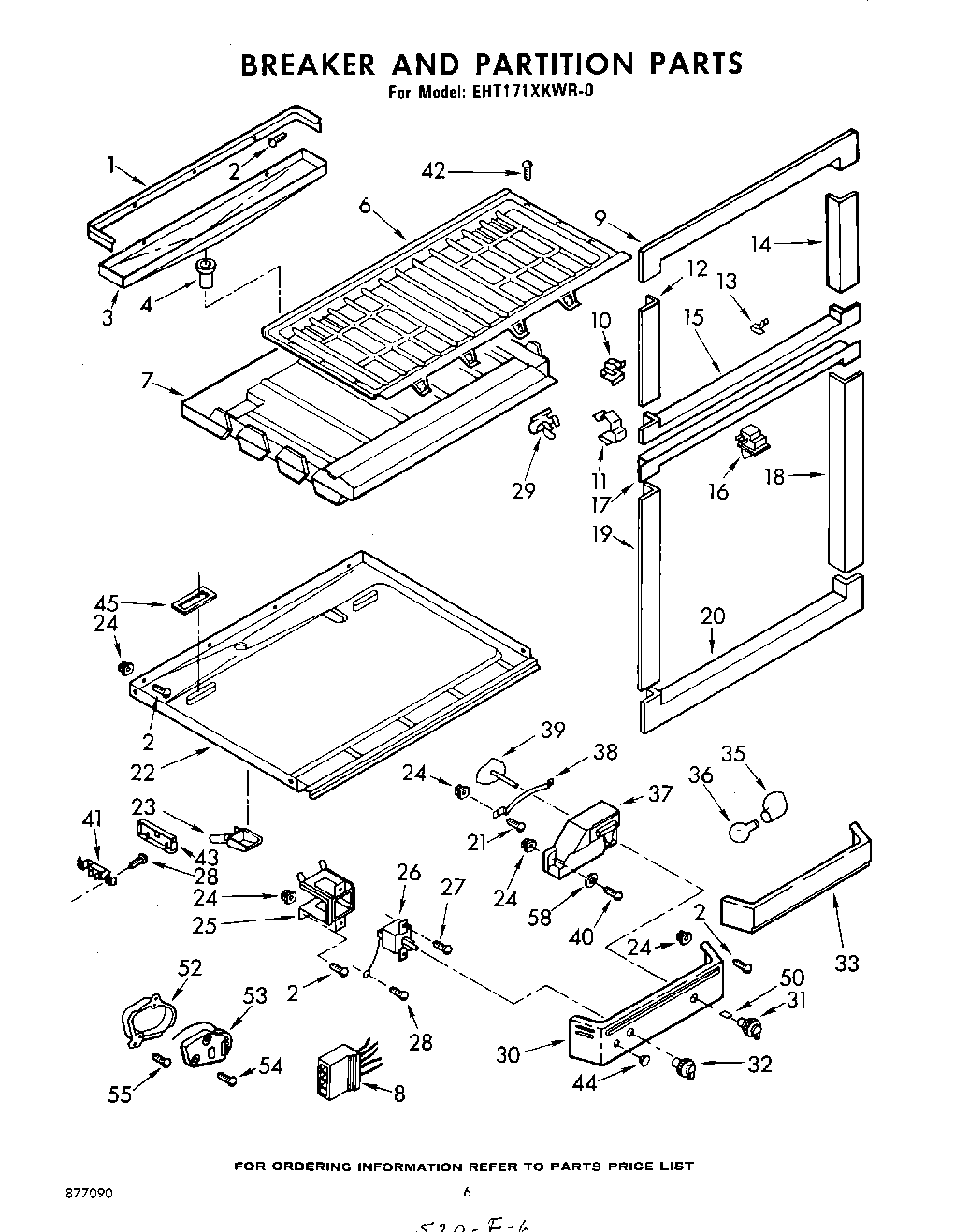

EHT171XKWR0 04 – BREAKER AND PARTITION

Products

Position	Product
1	Gasket Pan
2	W11624204 Whirlpool Screw
3	Drain Pan
4	Fitting, Drain Pan
6	Separator, Top Compartment
7	Insulation, Separator
8	Liner Wiring (Defrost Timer)
9	Breaker Trim Top Freezer
10	Breaker, Clip
11	Clip, Wrapper (23)
12	Breaker, Freezer (L.S.)
13	Breaker, Trim Clip
14	Breaker, Freezer (R.S.)
15	Breaker, Mullion (Top)
16	W11384469 Whirlpool Door Switch
17	Breaker, Mullion (Bottom)
18	Breaker, Refrigerator R.S.
19	Breaker, Refrigerator L.S.
20	Breaker Trim Bottom
21	Screw, 8 x 3/8
22	Compartment Separator Bottom
23	Cup, Drain
24	Grommet
25	Bracket, Thermostat
26	WP819470 Whirlpool Refrigerator Thermostat
27	WP965173 Whirlpool Dishwasher Screw
28	WP489128 Whirlpool Refrigerator Screw
29	Clip, Breaker Retainer (2)
30	Panel, Control
31	Control Knob
32	Knob, Temperature Control
33	Light Lens
35	4387478 Whirlpool Refrigerator Light Socket
36	RANGE ONLY 40W 120V APPL BULB
37	Air Diffuser
38	Retrainer, Air Dampener
39	Damper, Air
40	Screw, 8 x 1-1/4 (3)
41	Bracket & Switch Assembly
42	WP488729 Whirlpool Refrigerator Door Screw
43	Escutcheon, Power Saver
44	Hole Plug (2)
45	Gasket, Air Return
50	Knob, Retainer
52	Timer, Container
53	Defrost, Timer
54	Screw, 8 x 3/8 (2)
55	WP489069 Whirlpool Compactor Screw
58	836667 Whirlpool Refrigerator Spacer
