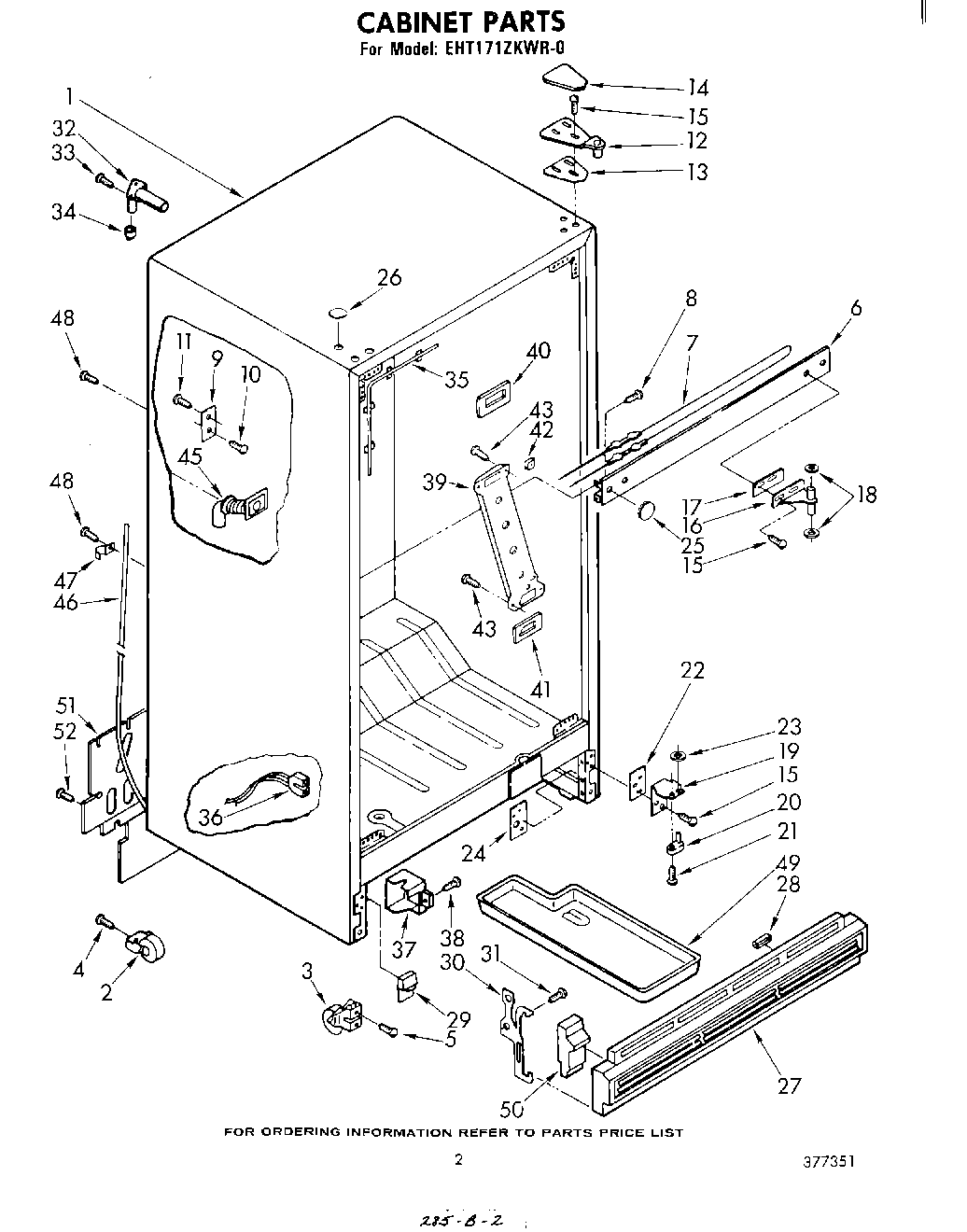

EHT171ZKWR0 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	WPW10250570 Whirlpool Refrigerator Cabinet Roller
3	Roller, Front
4	Screw, 5/16-24 x 1
5	Screw, 1/4-28 x 1/2 (2)
6	Center Rail (Golden Harvest)
6	Center Rail (New Avocado)
6	Center Rail (Almond)
6	Center Rail (White)
6	Center Rail (Coffee)
7	Heater, Mullion
8	Screw (Repair)
8	Screw, 8 x 3/8
9	Strap, Ground
10	WP489128 Whirlpool Refrigerator Screw
11	Screw, 8-32 x 1-1/2
12	Hinge, Top
13	WPL 836151
14	Hinge Cover (New Avocado)
14	1119787 Whirlpool Refrigerator Hinge Cover
14	Hinge Cover (Golden Harvest)
14	Hinge, Cover (Coffee)
15	Screw (Repair)
15	WP999367 Whirlpool Refrigerator Screw
16	Hinge, Center
17	Shim, Hinge Center
18	WP488296 Whirlpool Washer Refrigerator
19	Hinge, Bottom
20	Hinge Pin, Bottom
21	Screw 10-32 x 5/16
22	Shim, Bottom Hinge
23	WP487802 Whirlpool Refrigerator Washer
24	Tap Plate
25	Hole, Plug (Almond)
25	Hole Plug (Coffee)
25	Hole Plug (Golden Harvest)
25	Hole Plug (New Avocado)
25	Hole, Plug (White)
26	Hole Plug (2) (Almond)
26	Hole Plug (2) (White)
26	Hole Plug (2) (Golden Harvest)
26	Hole Plug (Coffee)
26	Hole Plug (New Avocado)
27	Exterior Grille (Coffee)
27	Exterior Grille (White)
27	Exterior Grille (New Avocado)
27	Exterior Grille (Golden Harvest)
27	Exterior Grille (Almond)
28	Bumper, Grille
29	WPL 989928
29	Corner, Filler (
29	WPL 989929
29	WPL 989930
29	WPL 989931
30	WPL 844614
31	W11624204 Whirlpool Screw
32	WP2196157 Whirlpool Fill Tube
34	WP487996 Whirlpool Refrigerator Cap Tube
35	Stile, Heater
36	WPL 548734
37	WPL 549947
38	WP488729 Whirlpool Refrigerator Door Screw
39	Duct, Air
40	Gasket Inlet
41	Gasket Outlet
42	Nut, Speed (4)
43	WP98165 Whirlpool Screw
45	WPL 836096
46	8316810 Whirlpool Refrigerator Drain Tube
47	WPL 836077
48	WP489069 Whirlpool Compactor Screw
49	WPL 842041
50	WPL 836372
51	WPL 850459
